Washer Tube Replacement

  1. Remove the front bumper and the right inner fender (see INNER FENDER REPLACEMENT ).
  2. Remove the washer nozzles and clips, then remove the tube.

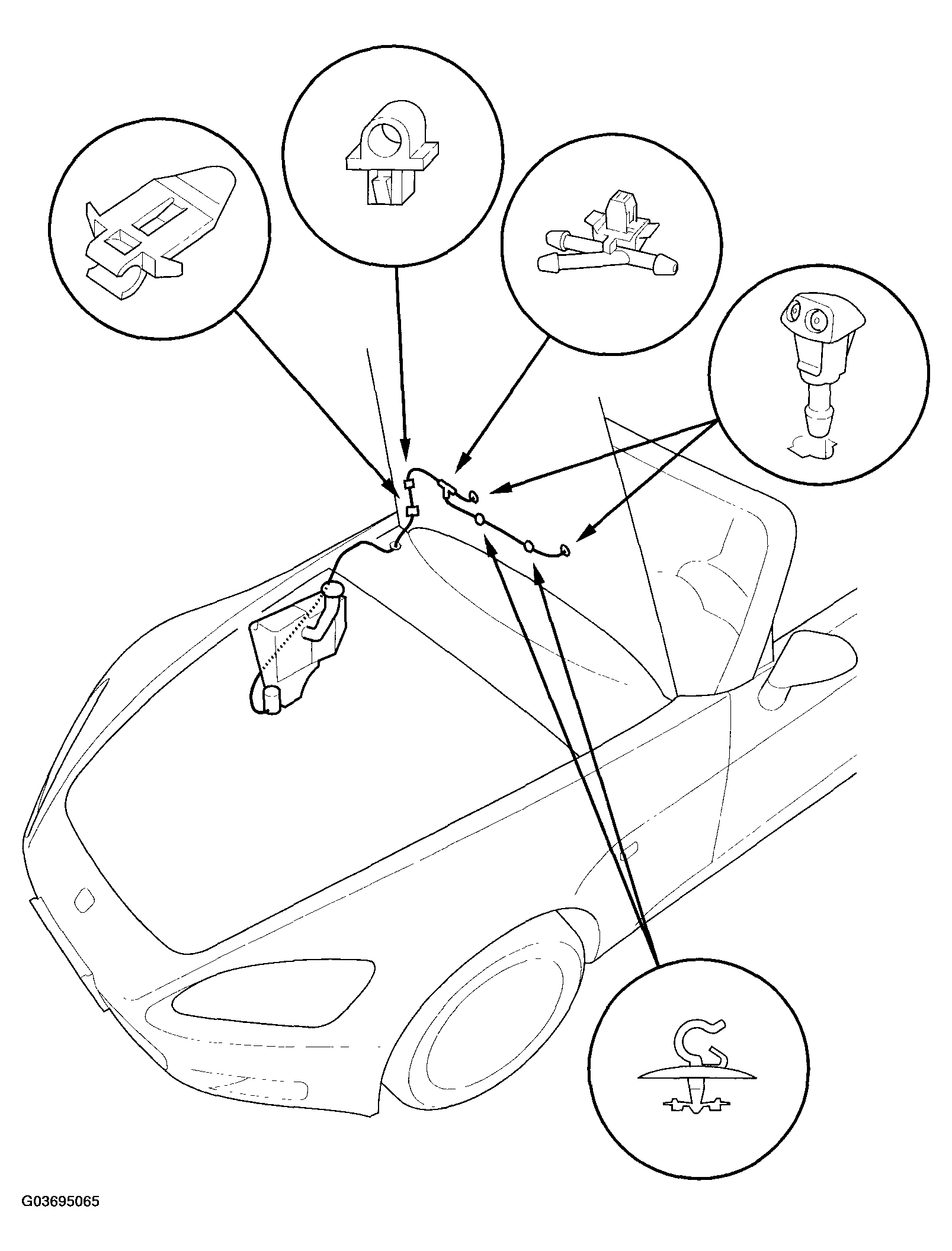

    Fig 1: Identifying Washer Nozzles & Clips
    G03695065Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal. Take care not to pinch the washer tube. Check the windshield washer operation.
