Floor Jack

Set parking brake. Block wheels that are not going to be lifted. When lifting rear of vehicle, place transmission in Reverse (M/T) or Park (A/T). See Figure .
Place floor jack lift platform under lift bracket to raise vehicle. See Fig 1 -Fig 6 . Front lift bracket is located under vehicle, on cross/center beam. Rear lift bracket is located under center of vehicle, left of muffler. Place safety stands on reinforced support points of side body panels (between front and rear wheels).

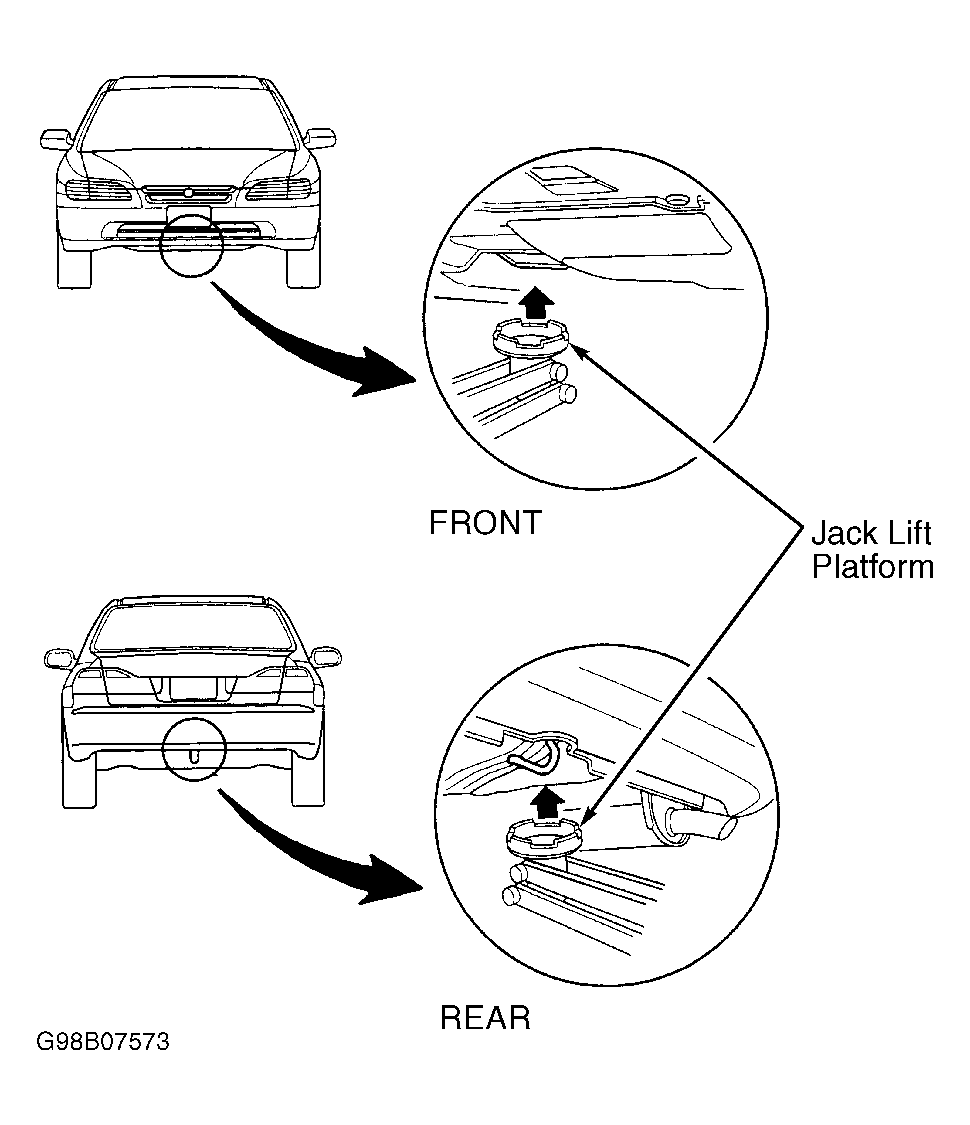

Fig 1: Identifying Lift Brackets Under Vehicle (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

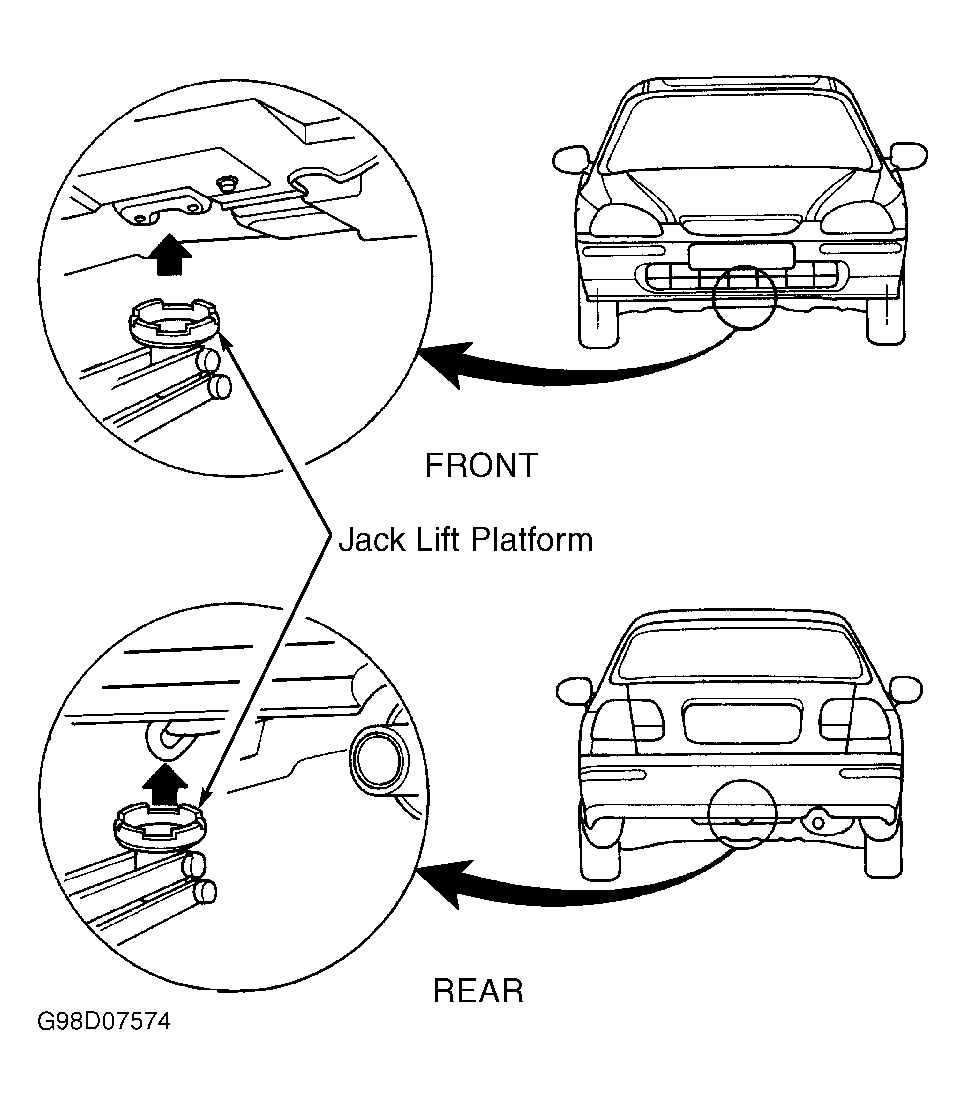

Fig 2: Identifying Lift Brackets Under Vehicle (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

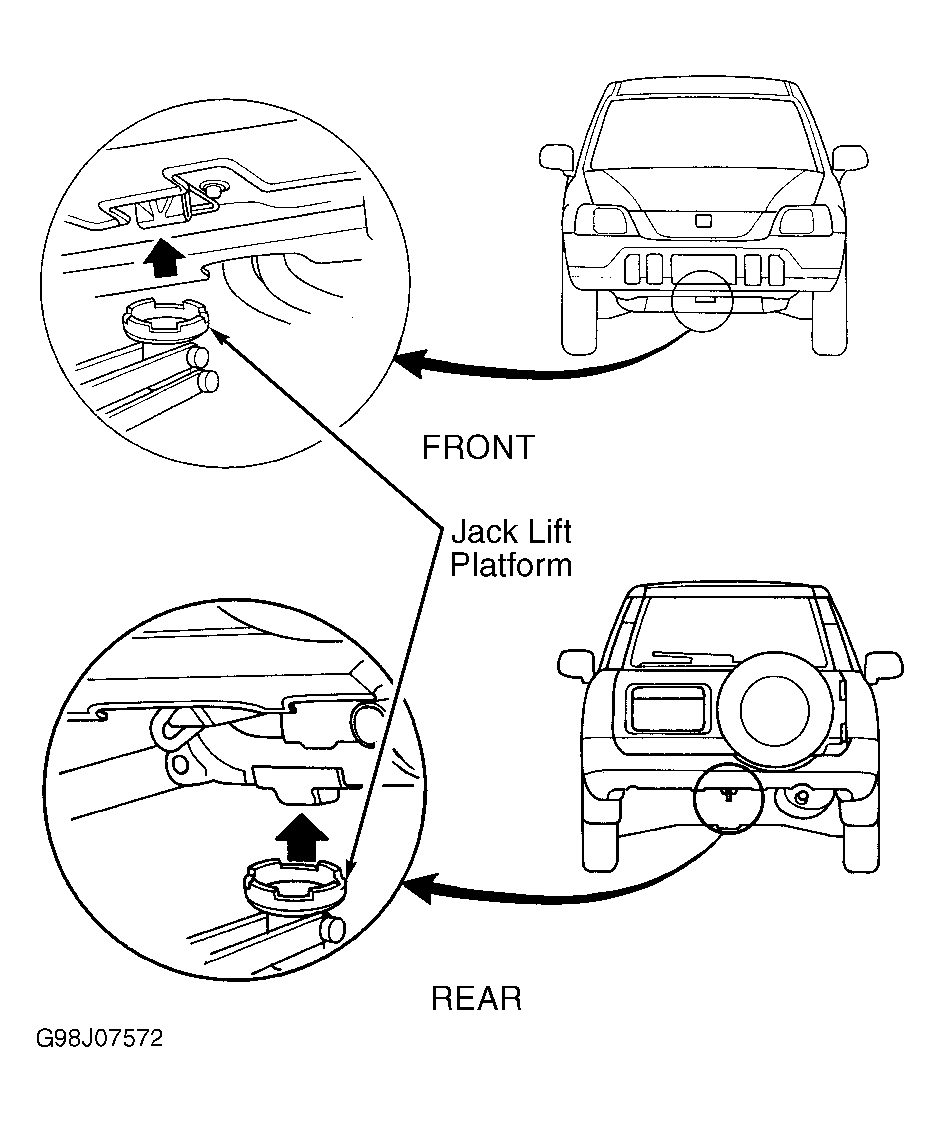

Fig 3: Identifying Lift Brackets Under Vehicle (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying Lift Brackets Under Vehicle (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

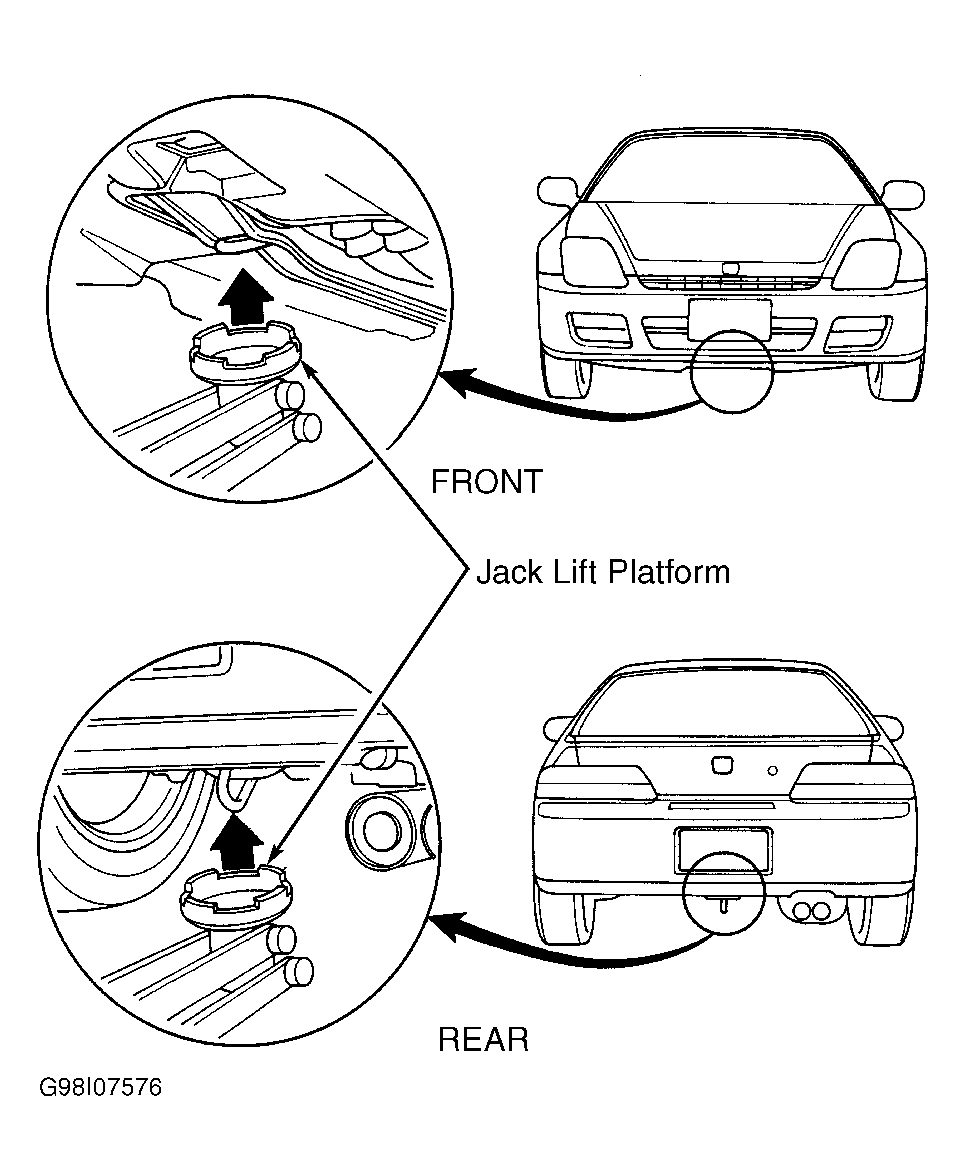

Fig 5: Identifying Lift Brackets Under Vehicle (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

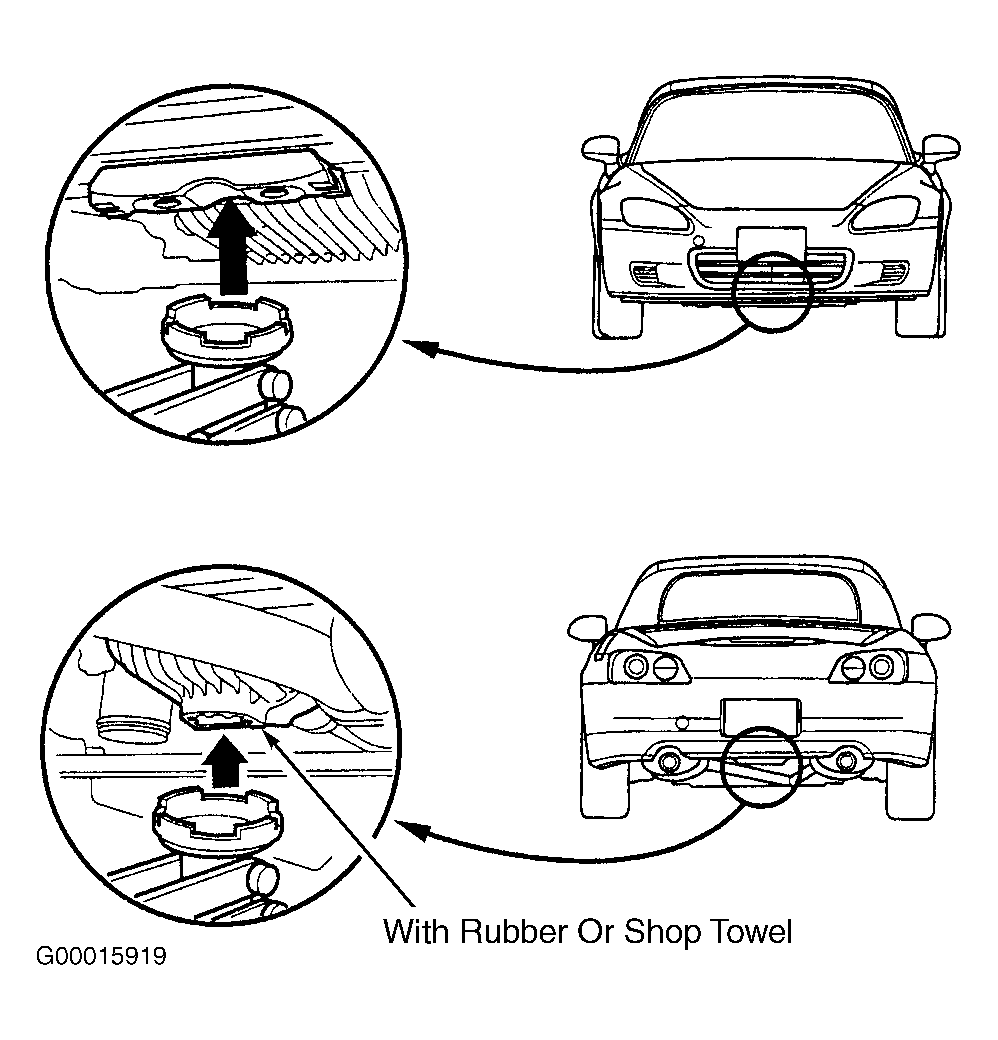

Fig 6: Identifying Lift Brackets Under Vehicle (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
