WARNING: This page is about a different car, the 2000 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
Refer to illustrations for component locations. See Fig 1
& Fig 2
.

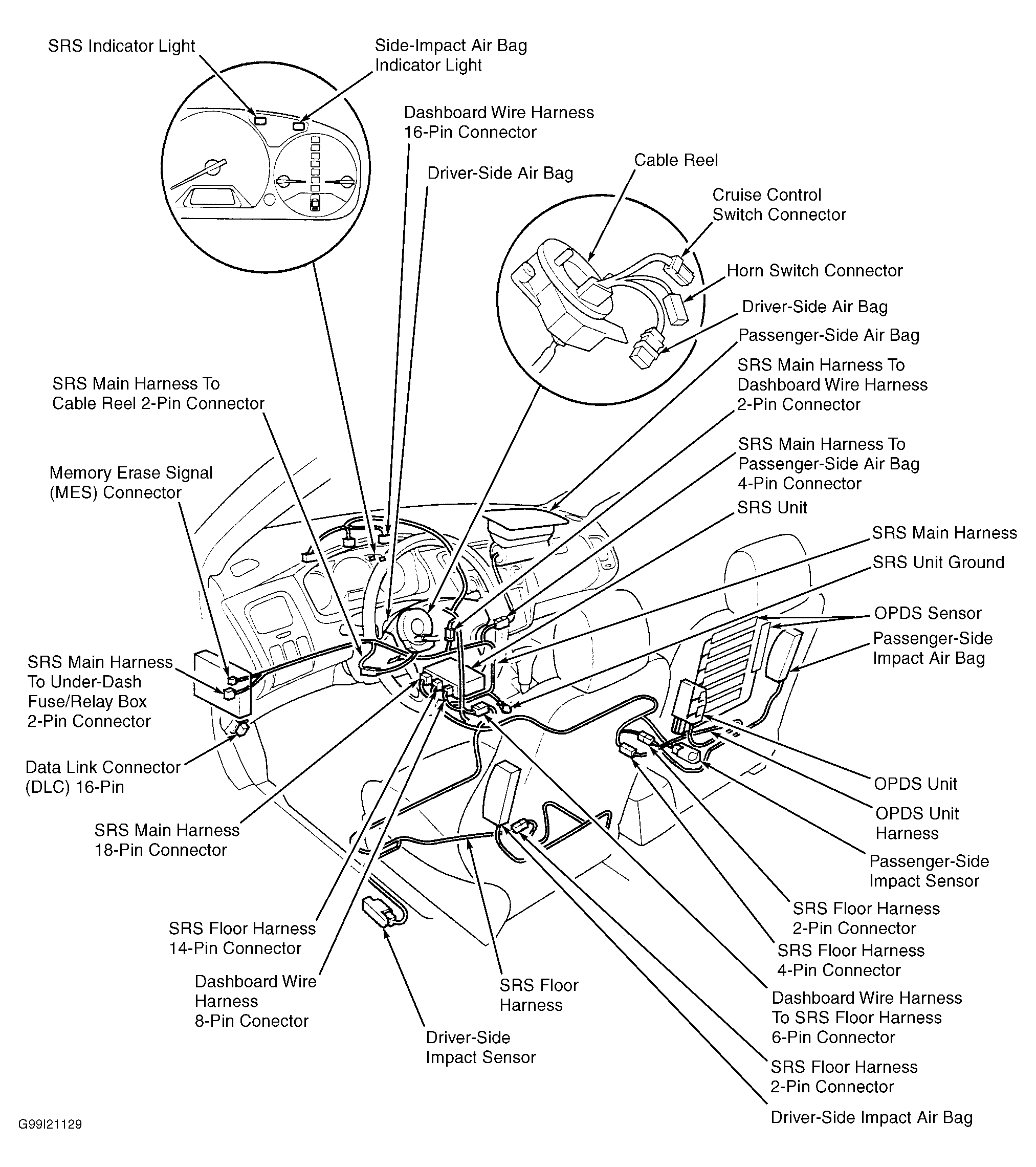

Fig 1: Locating SRS Components & Wiring Connectors (Sedan With Side-impact Air Bags Shown; Without Side-impact Air Bags Is Similar)
Courtesy of HONDA

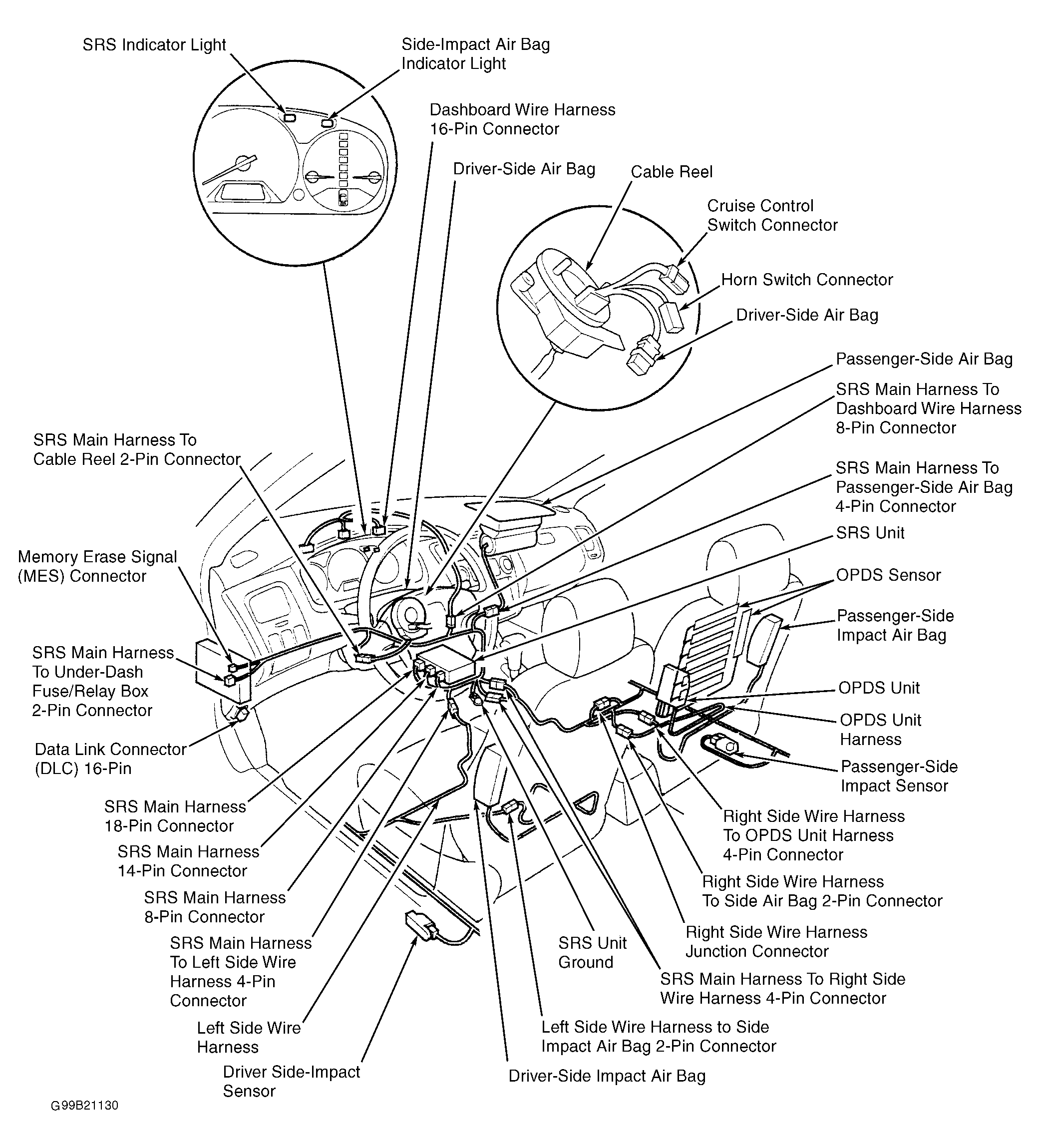

Fig 2: Locating SRS Components & Wiring Connectors (Coupe With Side-impact Air Bags Shown; Without Side-impact Air Bags Is Similar)
