Pin Voltage Tests

NOTE: Use illustrations to identify ABS control unit connector terminals for pin voltage testing. See Fig 1 -Fig 3 .

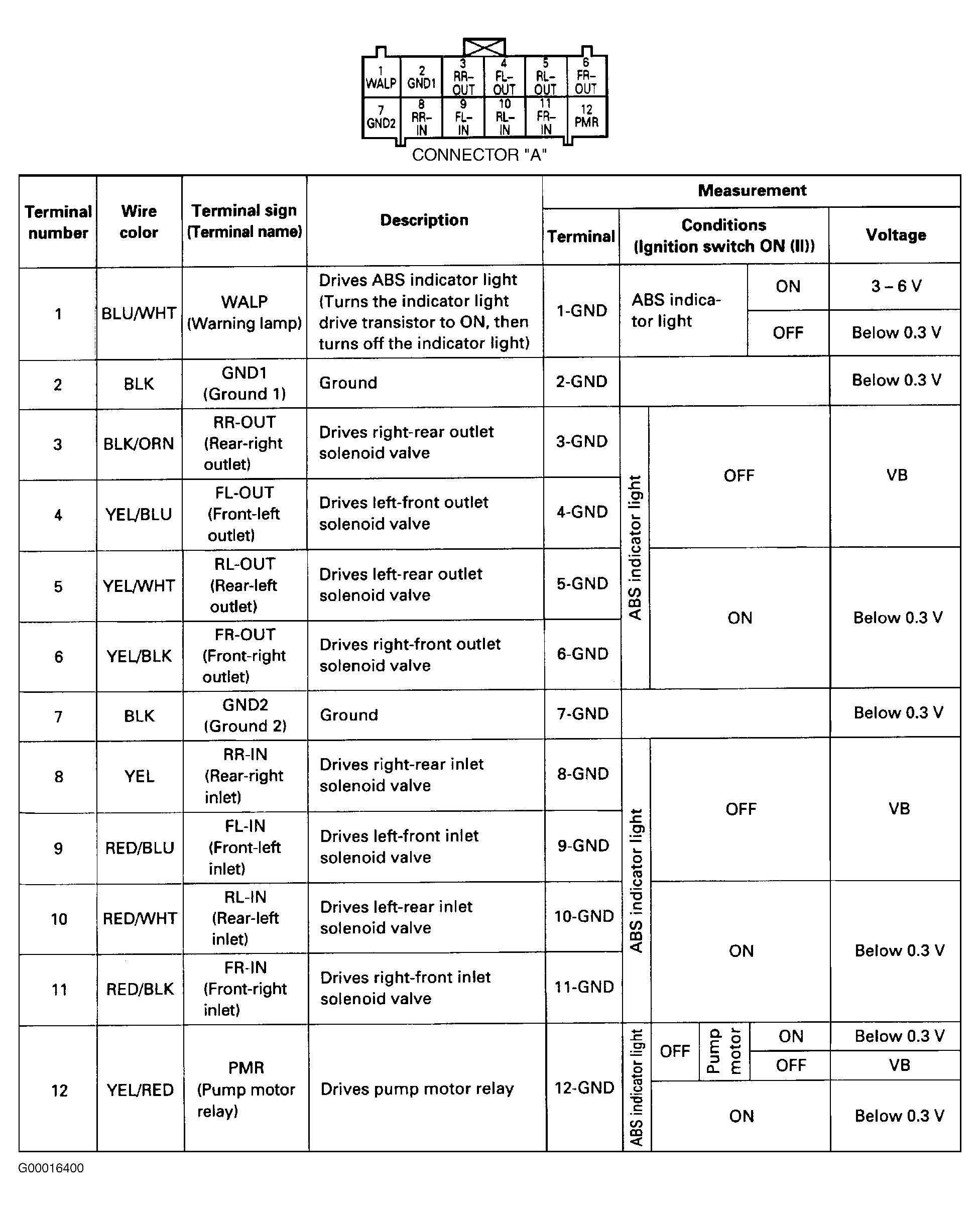

Fig 1: ABS Control Unit 12-Pin Connector "A" Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

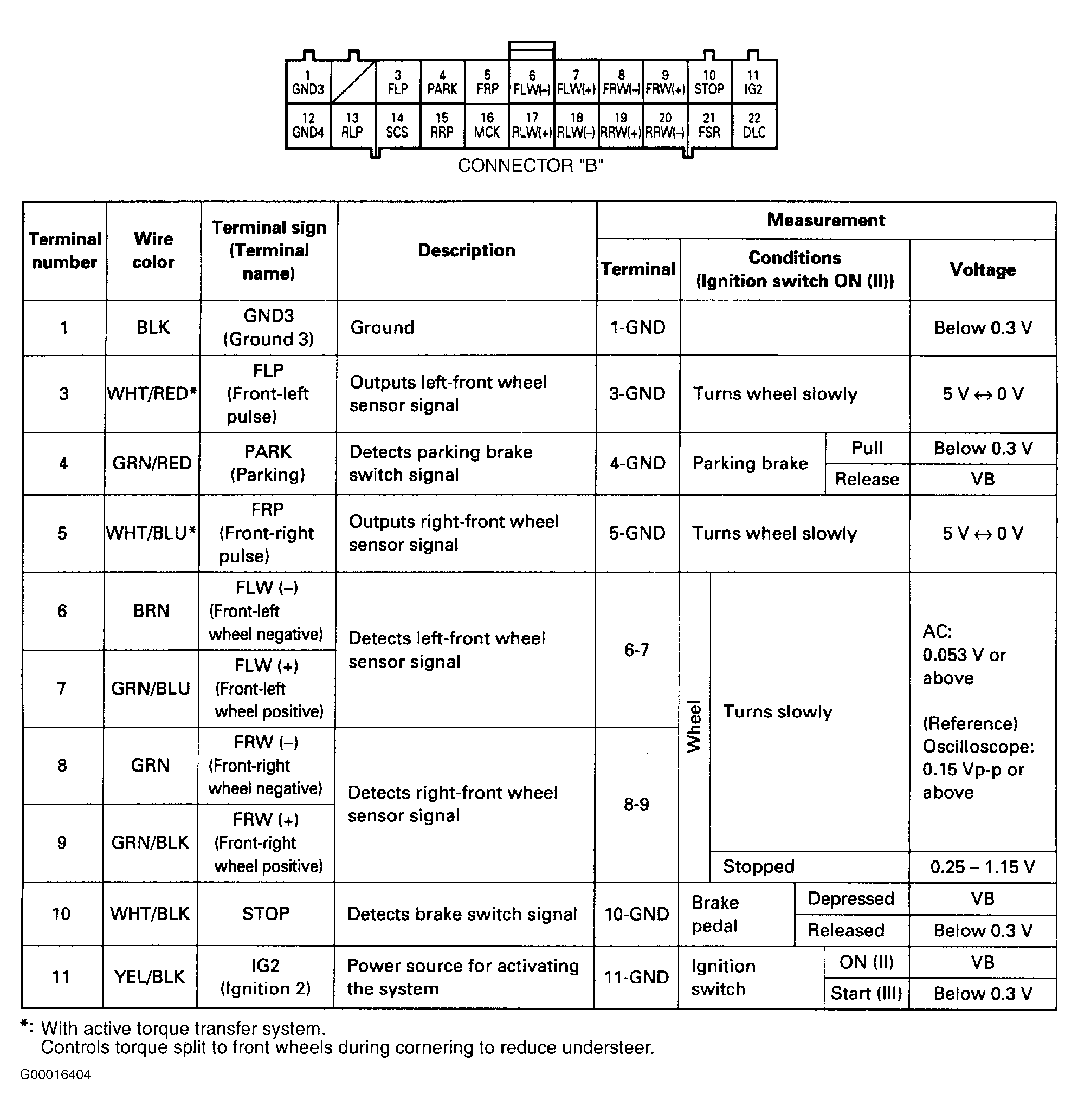

Fig 2: ABS Control Unit 22-Pin Connector "B" Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

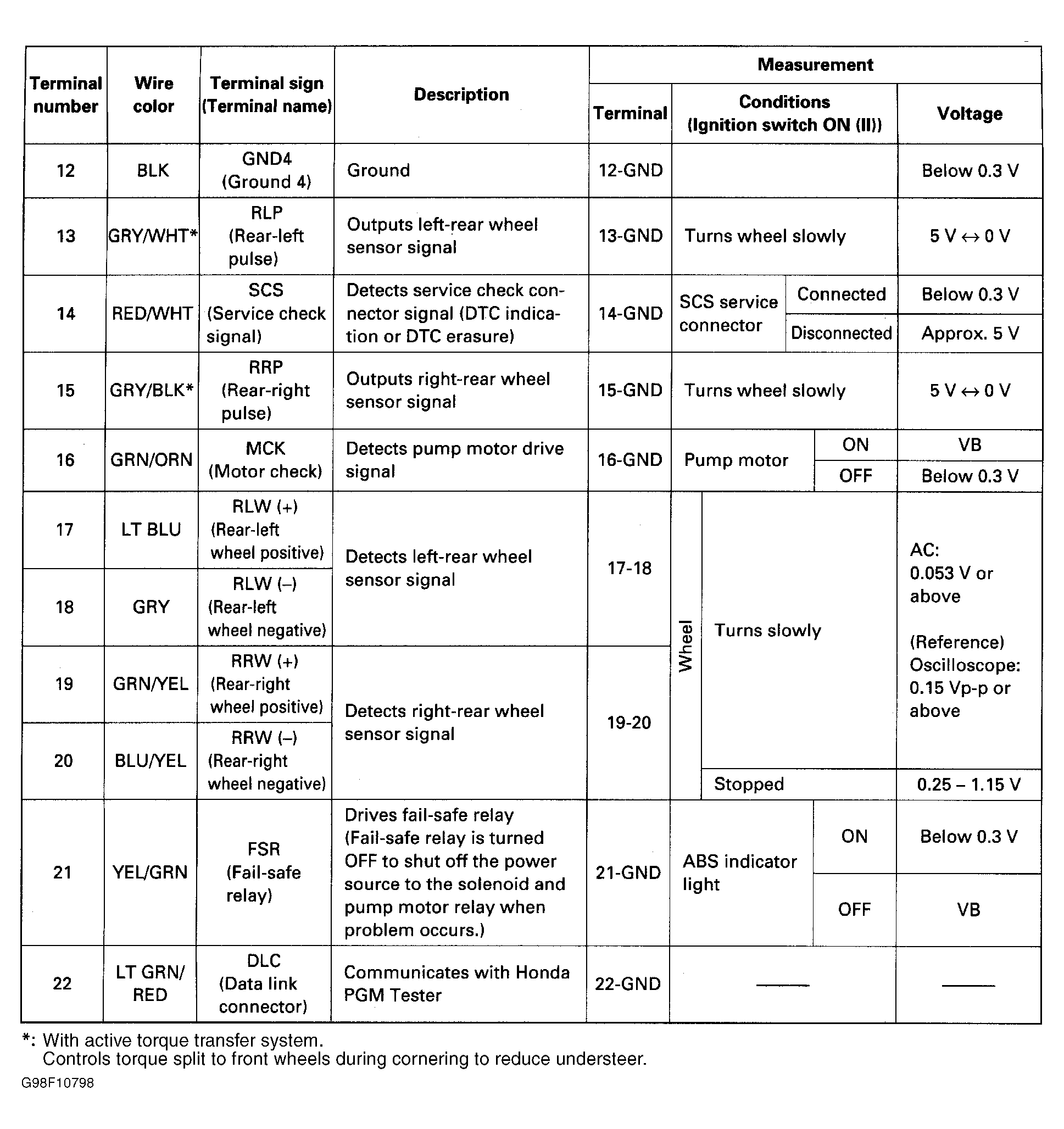

Fig 3: ABS Control Unit 22-Pin Connector "B" Pin Voltage Chart (Part 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
