Connector Identification
Connector Identification

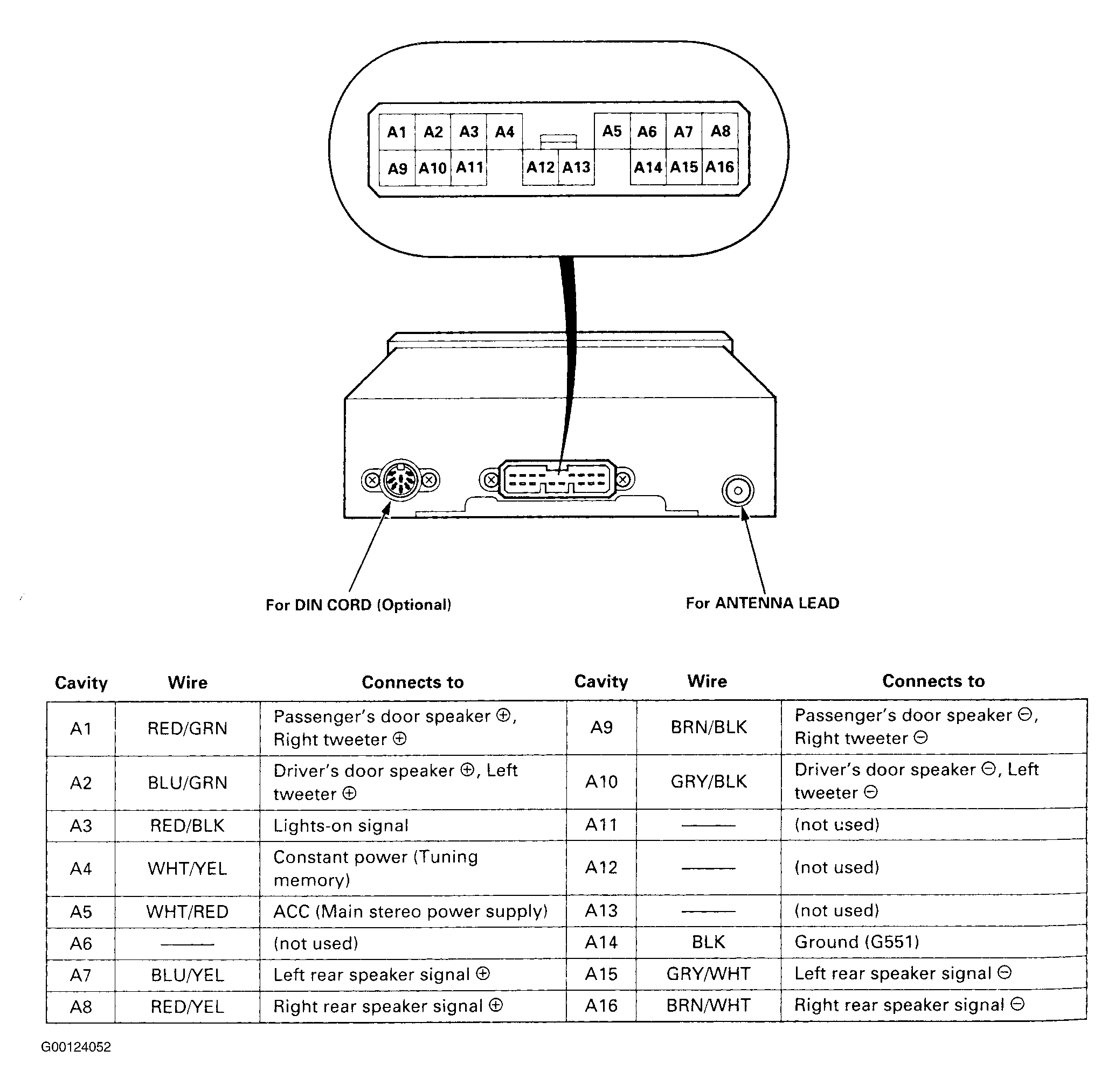

Fig 1: Identifying Audio Unit Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

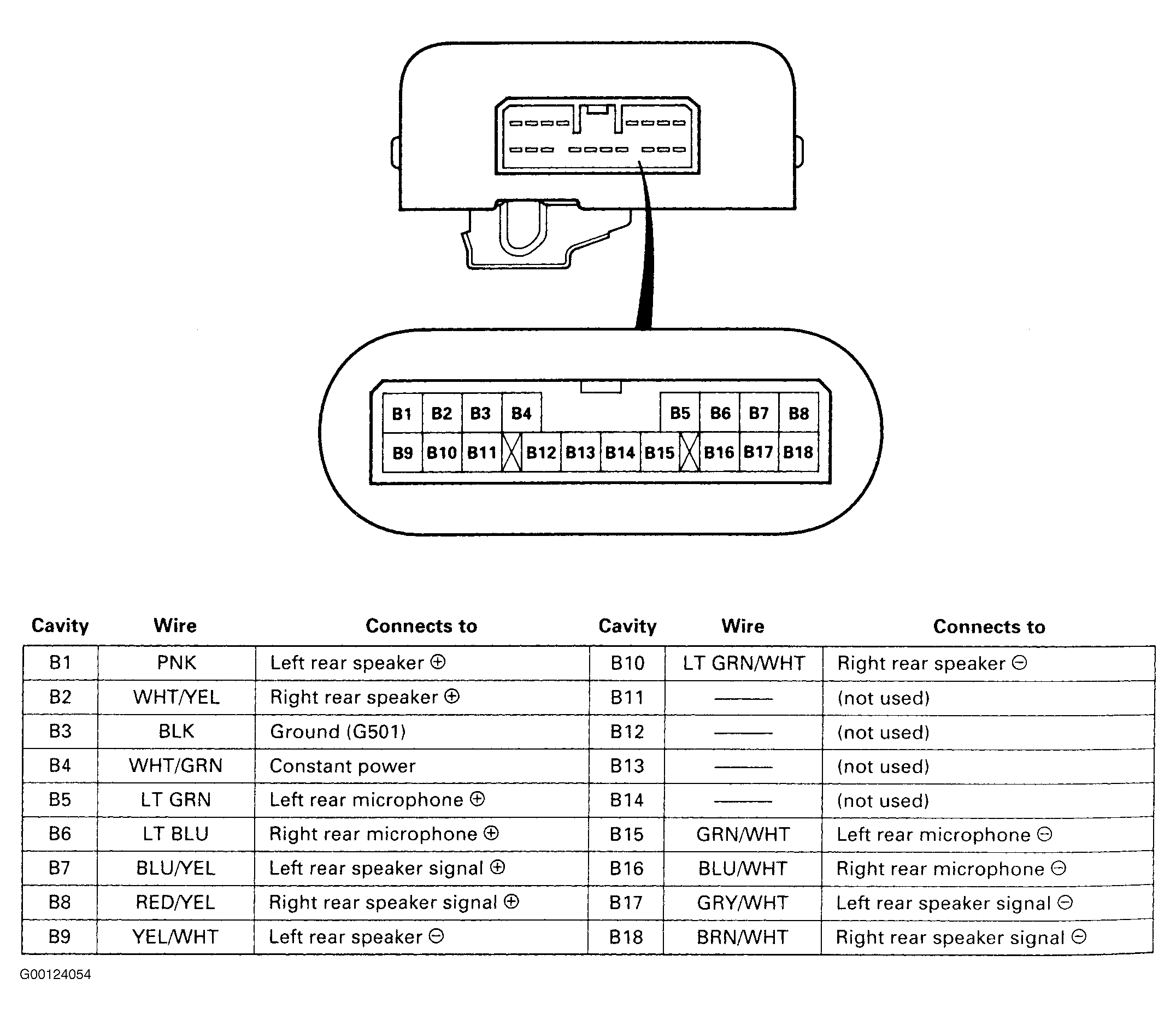

Fig 2: Identifying Stereo Amplifier Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
