Passenger's Multiplex Control Unit

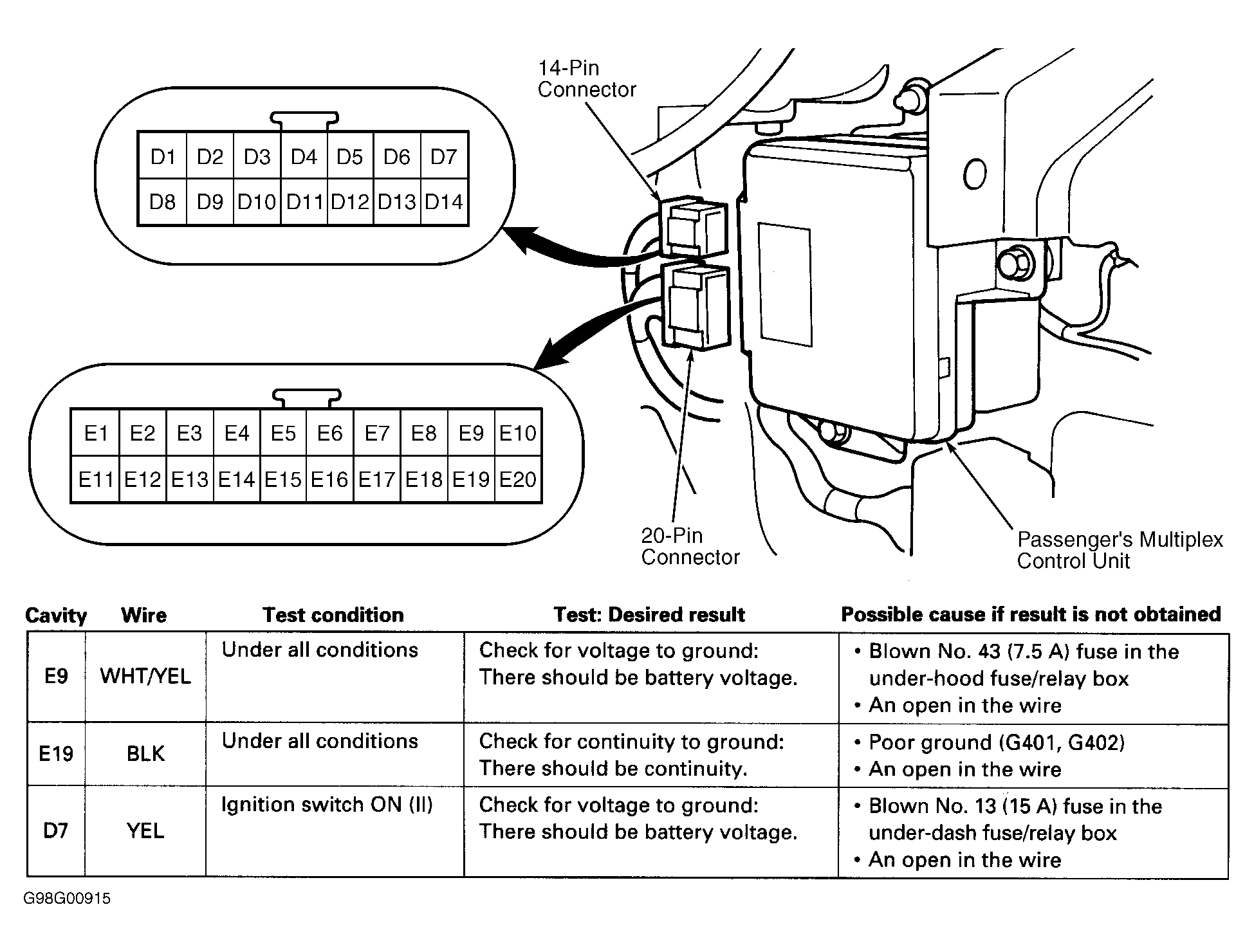

Turn ignition off. Remove passenger's multiplex control unit from fuse/relay block, behind right kick panel. See Fig 1 . Check terminals and contacts. Repair as necessary and retest system. If terminals and contacts are okay, perform input tests. If test results are as specified, replace passenger's multiplex control unit. See PASSENGER'S MULTIPLEX CONTROL UNIT under REMOVAL & INSTALLATION.
