Retrieving Trouble Codes

NOTE: DTCs may be retrieved by flash codes or by using Honda PGM tester connected to Data Link Connector (DLC), located behind access cover on right front of console.

NOTE: DO NOT depress brake pedal during DTC retrieval procedure. Depressing brake pedal during procedure will cause DTCs to erase.

Locate SCS service connector 2-pin connector behind passenger-side of center console. Install fused jumper wire or SCS Service Connector (07PAZ-0010100) between service check connector terminals. See Fig 1 . Turn ignition on. Ensure brake pedal is not depressed. Record blinking ABS indicator light sequence. See Fig 2 .
When ignition is turned on, ABS indicator light will turn on for 2 seconds, then off for 3.6 seconds before blinking first DTC. See Fig 2 . See DIAGNOSTIC TROUBLE CODES INDEX table. If a DTC is not set, ABS indicator light will turn off for 3.6 seconds then turn on and stay on.
If light flashes DTCs, conduct appropriate test procedures. See DIAGNOSTIC TESTS . If light does not flash DTCs, go to ABS INDICATOR LIGHT REMAINS ON, BUT DOES NOT FLASH TROUBLE CODES under TROUBLE SHOOTING. After DTCs have been retrieved, turn ignition off. Remove fused jumper wire or SCS service connector.

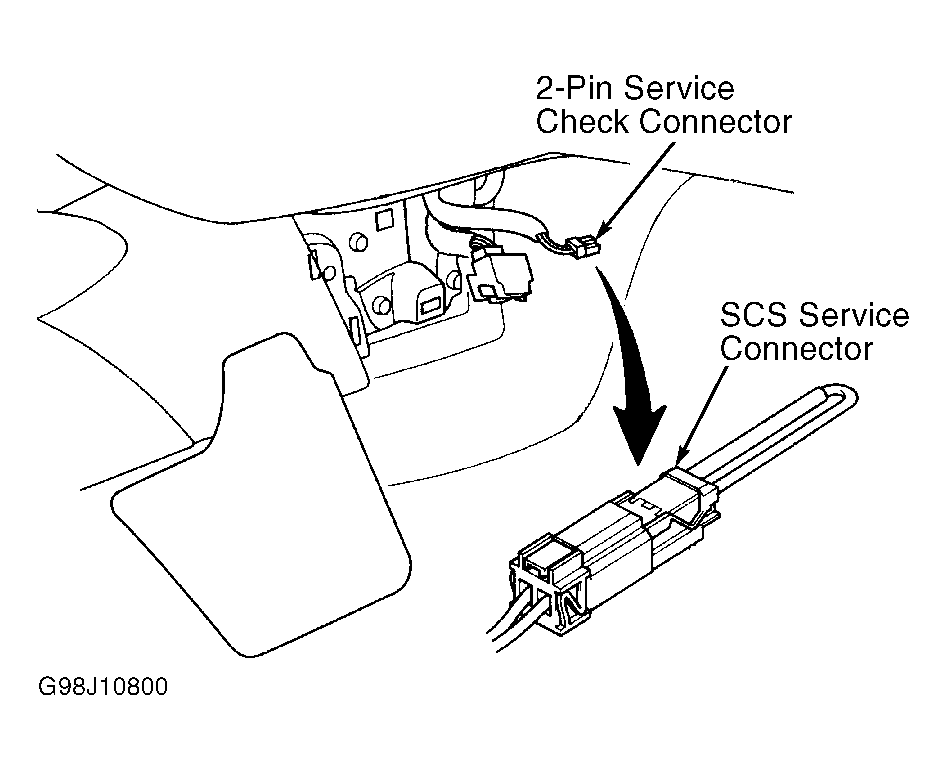

Fig 1: Locating 2-Pin Service Check Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying ABS Indicator Light Sequence For Retrieving DTCs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

DIAGNOSTIC TROUBLE CODES INDEX

DTC

System Affected

DTC 11 ⁽¹⁾ , ⁽²⁾

Right Front Wheel Sensor, Open Or Short

DTC 12 ⁽²⁾ , ⁽³⁾

Right Front Wheel Sensor, Electrical Noise Or Intermittent

DTC 13 ⁽¹⁾ ,⁽²⁾

Left Front Wheel Sensor, Open Or Short

DTC 14 ⁽²⁾ , ⁽³⁾

Left Front Wheel Sensor Electrical Noise Or Intermittent

DTC 15 ⁽¹⁾ , ⁽²⁾

Right Rear Wheel Sensor, Open Or Short

DTC 16 ⁽²⁾ ,⁽³⁾

Right Rear Wheel Sensor, Electrical Noise Or Intermittent

DTC 17 ⁽¹⁾ , ⁽²⁾

Left Rear Wheel Sensor, Open Or Short

DTC 18 ⁽²⁾ , ⁽³⁾

Left Rear Wheel Sensor, Electrical Noise Or Intermittent

DTC 21 ⁽²⁾ ,⁽³⁾

Right Front Pulser

DTC 22 ⁽²⁾ , ⁽³⁾

Left Front Pulser

DTC 23 ⁽²⁾ , ⁽³⁾

Right Rear Pulser

DTC 24 ⁽²⁾ , ⁽³⁾

Left Rear Pulser

DTC 31 ⁽¹⁾ , ⁽²⁾

Right Front Inlet Solenoid

DTC 32 ⁽¹⁾ , ⁽²⁾

Right Front Outlet Solenoid

DTC 33 ⁽¹⁾ , ⁽²⁾

Left Front Inlet Solenoid

DTC 34 ⁽¹⁾ , ⁽²⁾

Left Front Outlet Solenoid

DTC 35 ⁽¹⁾⁽²⁾

Right Rear Inlet Solenoid

DTC 36 ⁽¹⁾⁽²⁾

Right Rear Outlet Solenoid

DTC 37 ⁽¹⁾⁽²⁾

Left Rear Inlet Solenoid

DTC 38 ⁽¹⁾⁽²⁾

Left Rear Outlet Solenoid

DTC 41 ⁽²⁾

Right Front Wheel Lock

DTC 42 ⁽²⁾

Left Front Wheel Lock

DTC 43 ⁽²⁾

Right Rear Wheel Lock

DTC 44 ⁽²⁾

Left Rear Wheel Lock

DTC 51 ⁽²⁾ , ⁽³⁾

Motor Lock

DTC 52 ⁽²⁾ , ⁽³⁾

Motor Stuck Off

DTC 53 ⁽¹⁾ ,⁽²⁾ , ⁽³⁾

Motor Stuck On

DTC 54 ⁽¹⁾ , ⁽²⁾

Fail-Safe Relay

DTC 61 ⁽²⁾ , ⁽⁴⁾

Low Ignition Voltage

DTC 62 ⁽²⁾ ,⁽⁴⁾

High Ignition Voltage

DTC 71 ⁽²⁾

Different Diameter Tire

DTC 81 ⁽¹⁾ , ⁽²⁾

Central Processing Unit (CPU) & Read Only Memory (ROM) Random Access Memory (RAM) Diagnoses

⁽¹⁾	Initial Diagnosis. See SELF-DIAGNOSTIC SYSTEM under OPERATION.

⁽²⁾	Regular Diagnosis. See SELF-DIAGNOSTIC SYSTEM under OPERATION.

⁽³⁾	Indicator light will stay on until ignition is cycled from off to on, vehicle is driven again and ABS system is okay.

⁽⁴⁾	ABS indicator light turns off when voltage returns to normal.
