Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Dash Fuse Box Behind dash, left of steering column.
Diodes In fuse/relay box.
Diodes On dash fuse box.

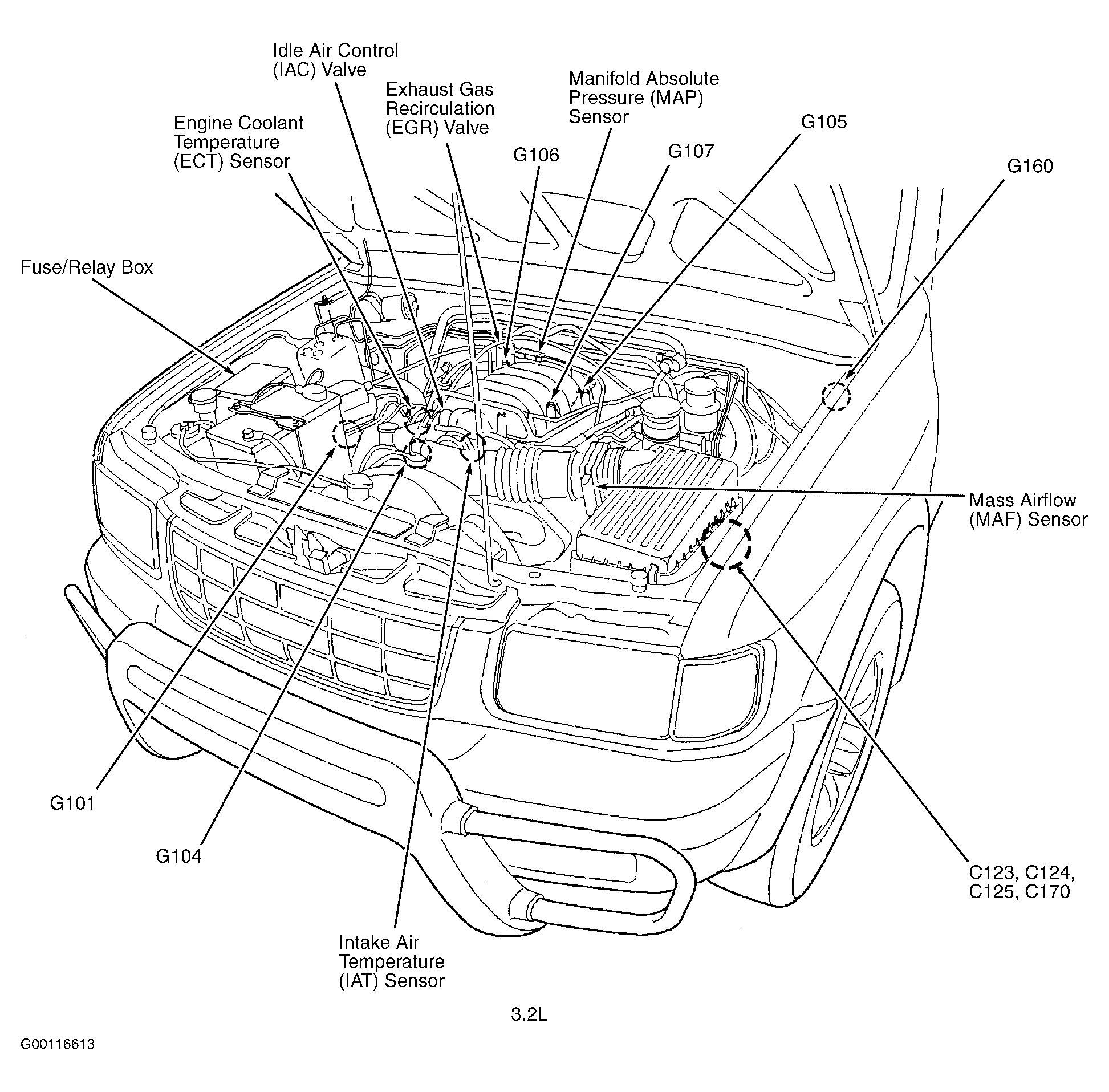

Fuse/Relay Box On right side of engine compartment. See Figure.
Power Window Circuit Breaker On dash fuse box.
