Oil Pump Overhaul: Notes

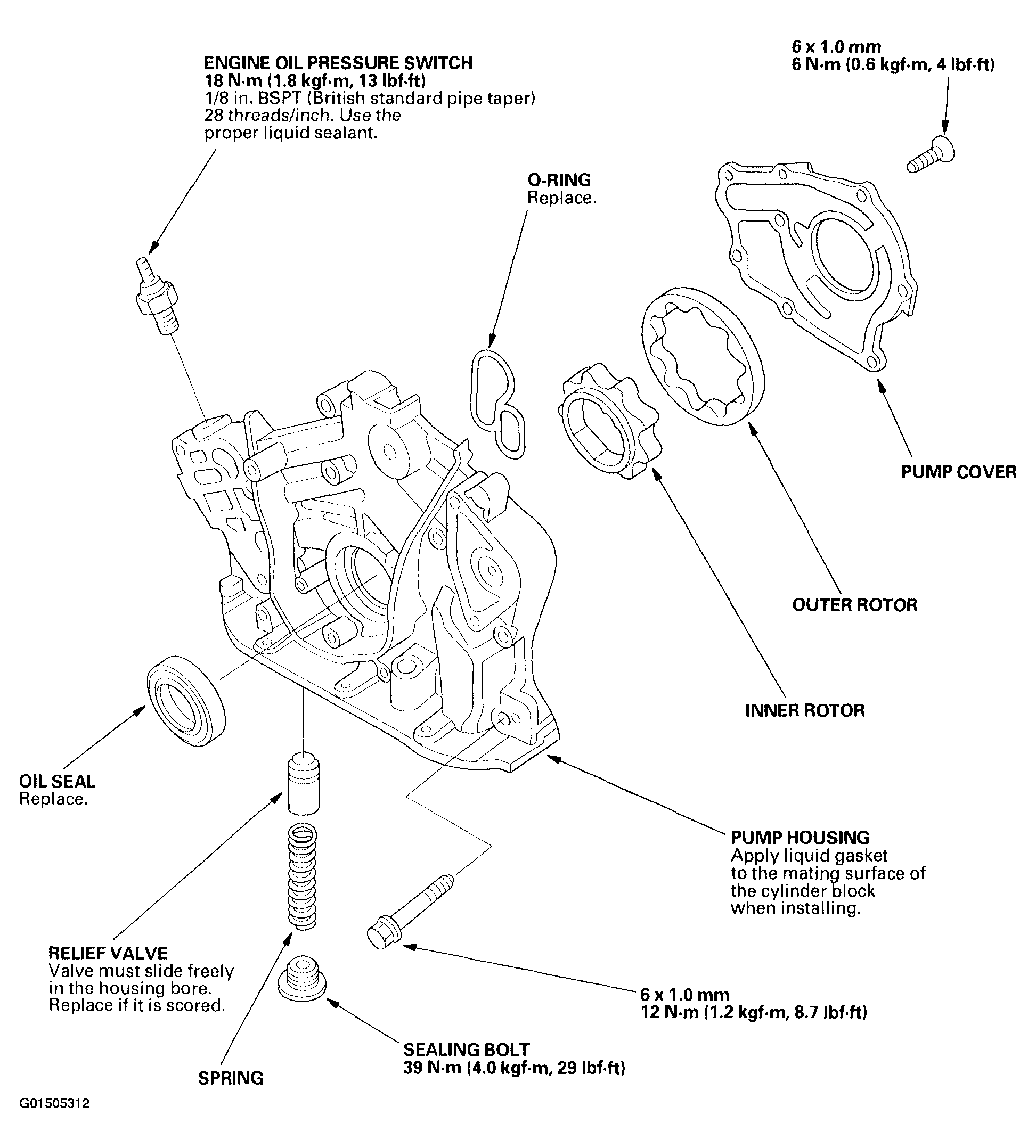

Fig 1: Exploded View Of Oil Pump Overhaul

G01505312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required: Oil seal driver 64 070AD-RCA0100
