Shift Lever Removal

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures in appropriate AIR BAG article under RESTRAINTS before performing repairs or service.

1. Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL & INSTALLATION ).
2. Shift the transmission into the N position.
3. Remove the nut (A) securing the shift cable end (B), then separate the shift cable (C) from the shift lever assembly (D).

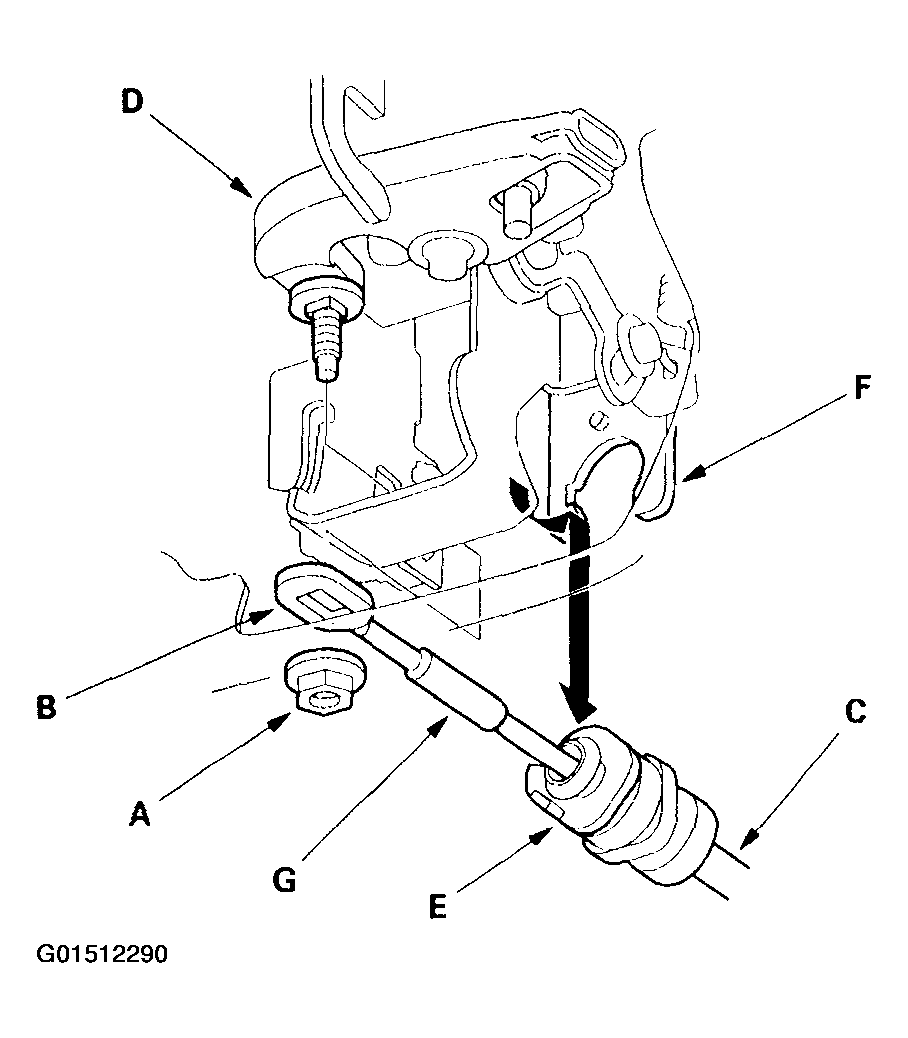

   Fig 1: Exploded View Of Shift Lever Assembly


NOTE: Do not remove the shift cable by twisting the shift cable guide (G).
4. Rotate the socket holder (E) on the shift cable counterclockwise a quarter turn, then slide the holder to remove the shift cable from the shift cable bracket (F).
5. Disconnect the shift lock solenoid connector (A) and the park pin switch connector (B).

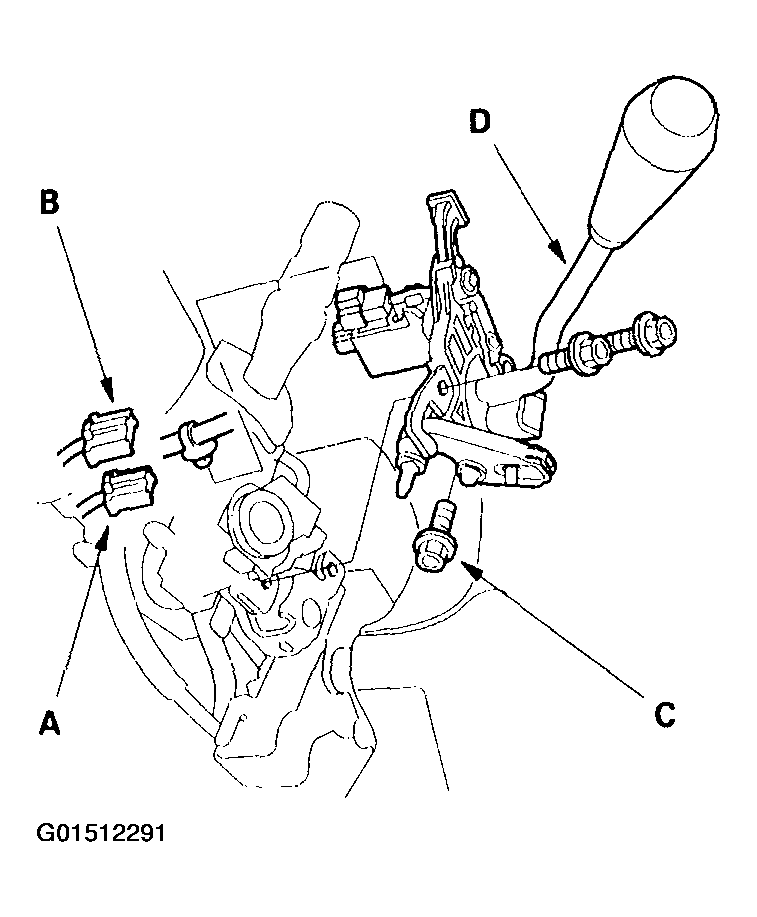

   Fig 2: Disconnecting The Shift Lock Solenoid & The Park Pin Switch Connectors


6. Remove the three bolts (C) securing the shift lever assembly, then remove the shift lever assembly (D).
