Steering Gearbox Overhaul: Notes

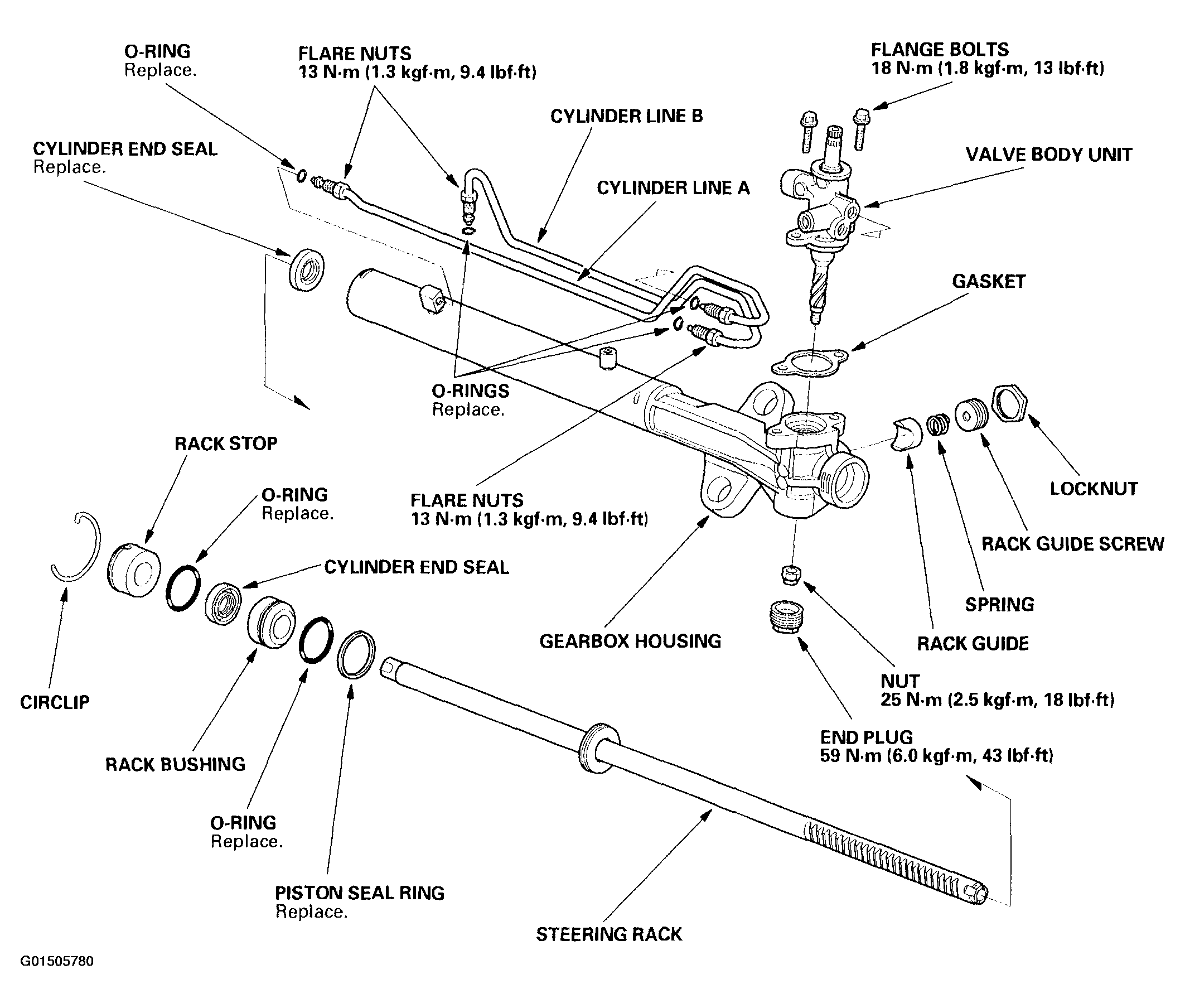

Fig 1: Exploded View Of Steering Gearbox Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
