DTC Troubleshooting Index

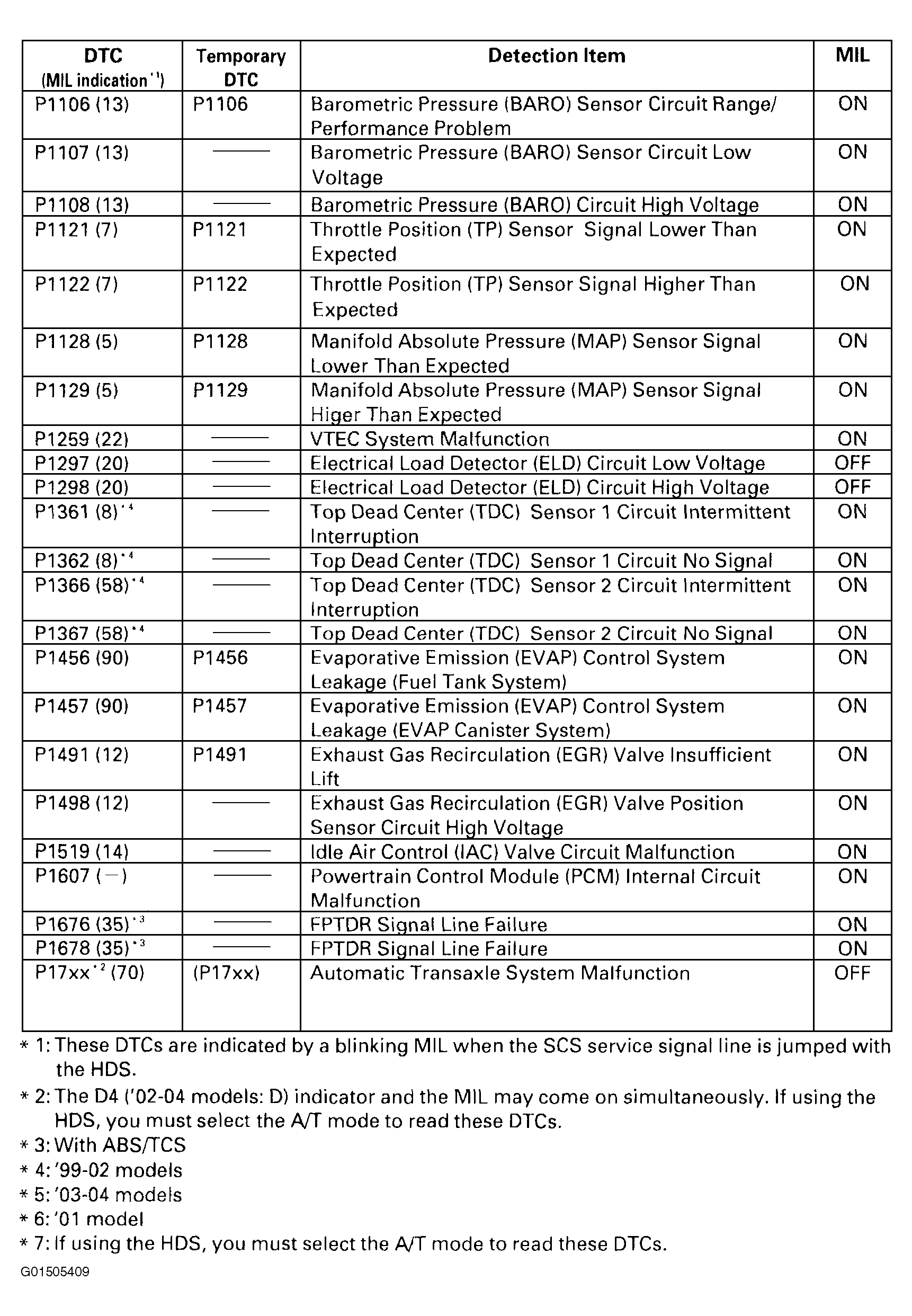

Fig 1: DTC Troubleshooting Chart (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

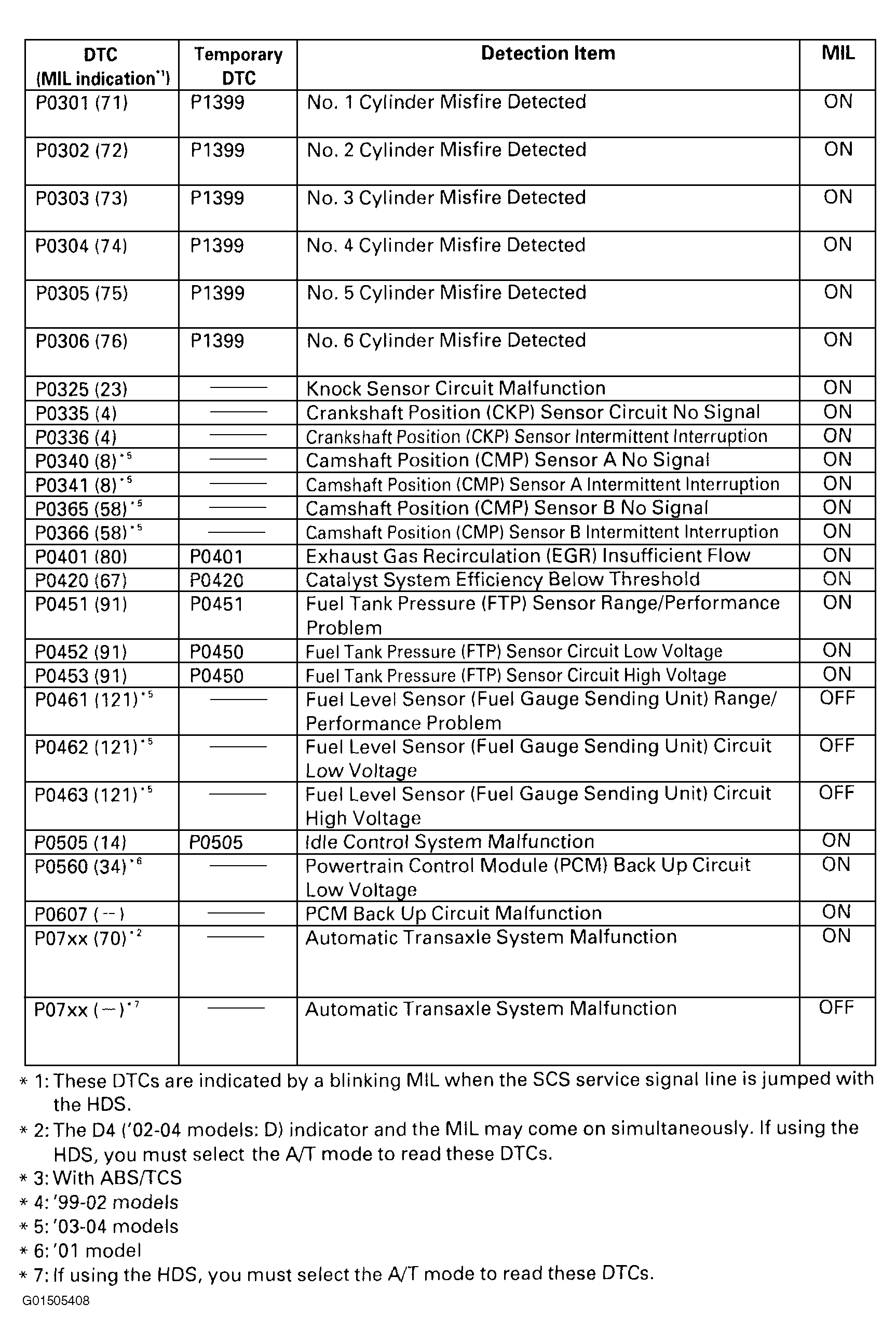

Fig 2: DTC Troubleshooting Chart (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

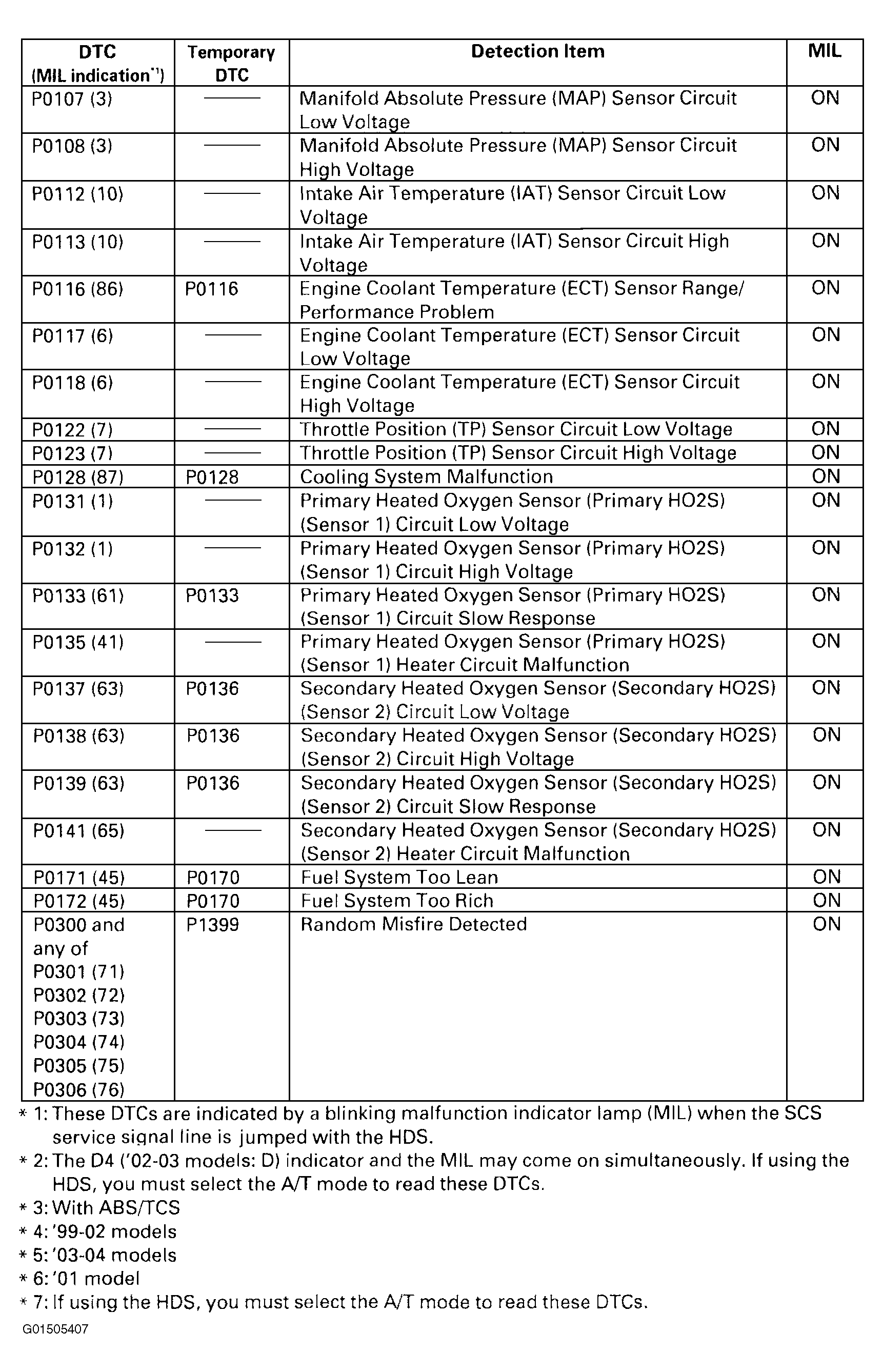

Fig 3: DTC Troubleshooting Chart (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
