Component Location Index

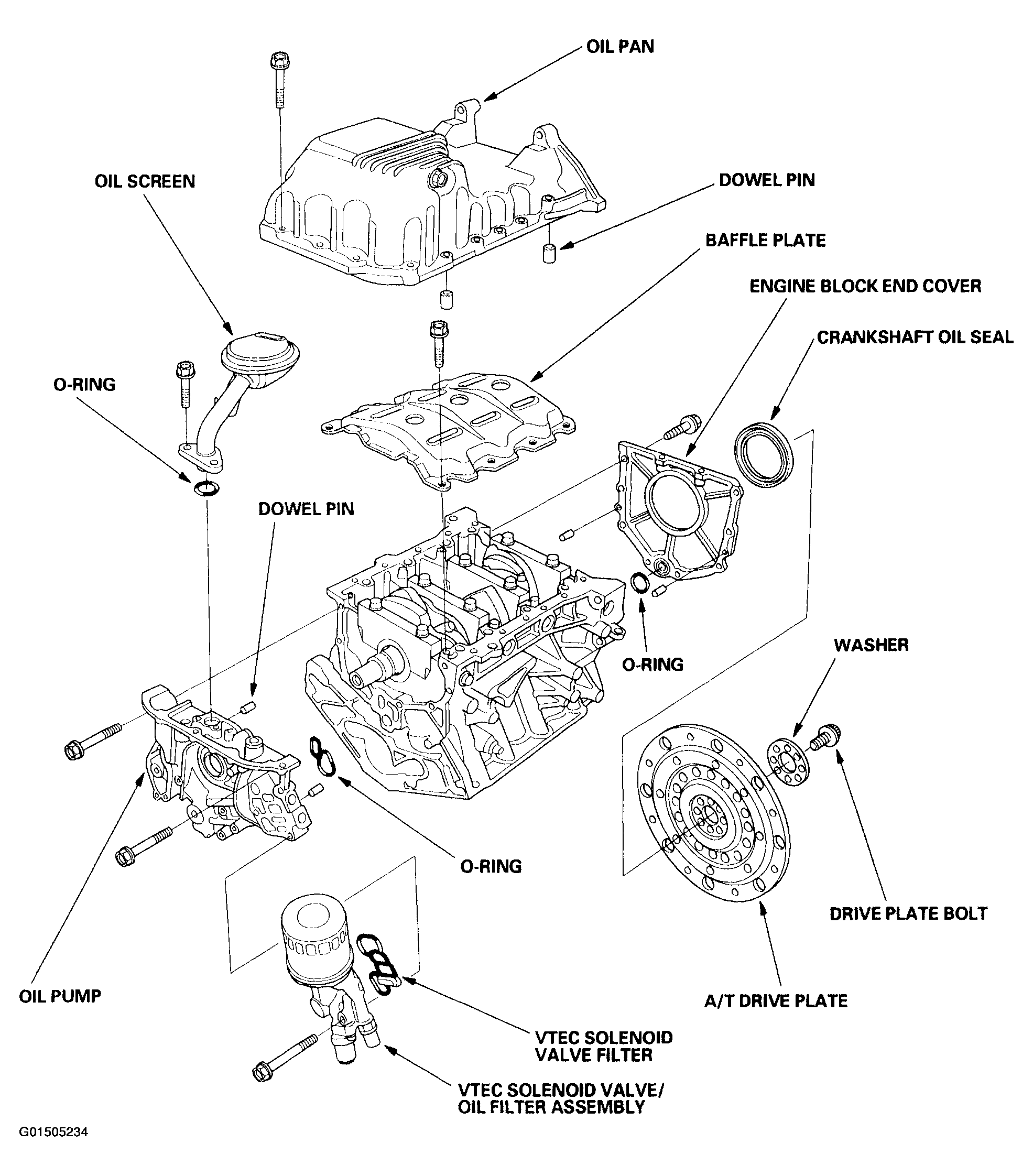

Fig 1: Identifying Component Location (1 Of 3)
G01505234Courtesy of AMERICAN HONDA MOTOR CO., INC.

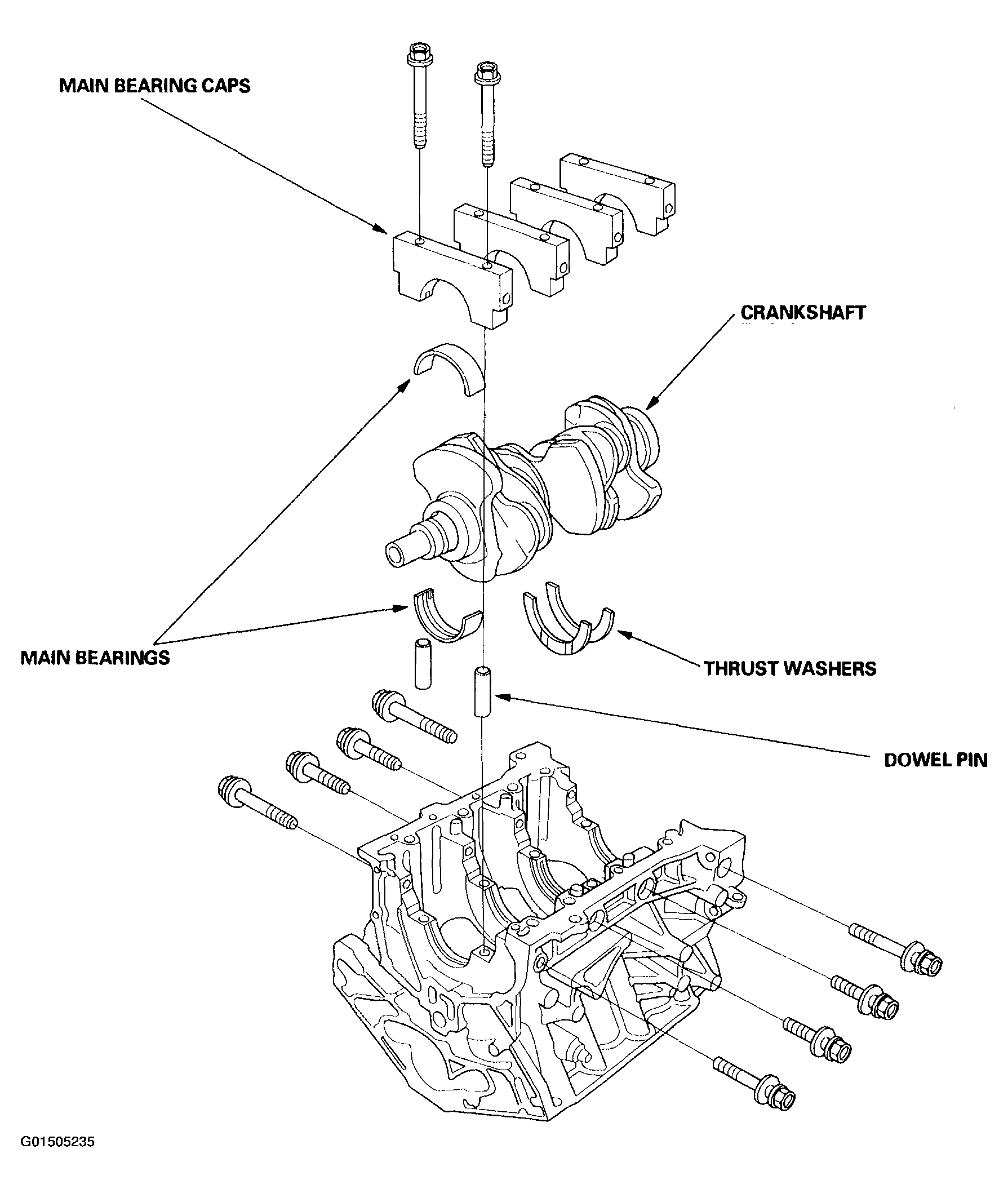

Fig 2: Identifying Component Location (2 Of 3)
G01505235Courtesy of AMERICAN HONDA MOTOR CO., INC.

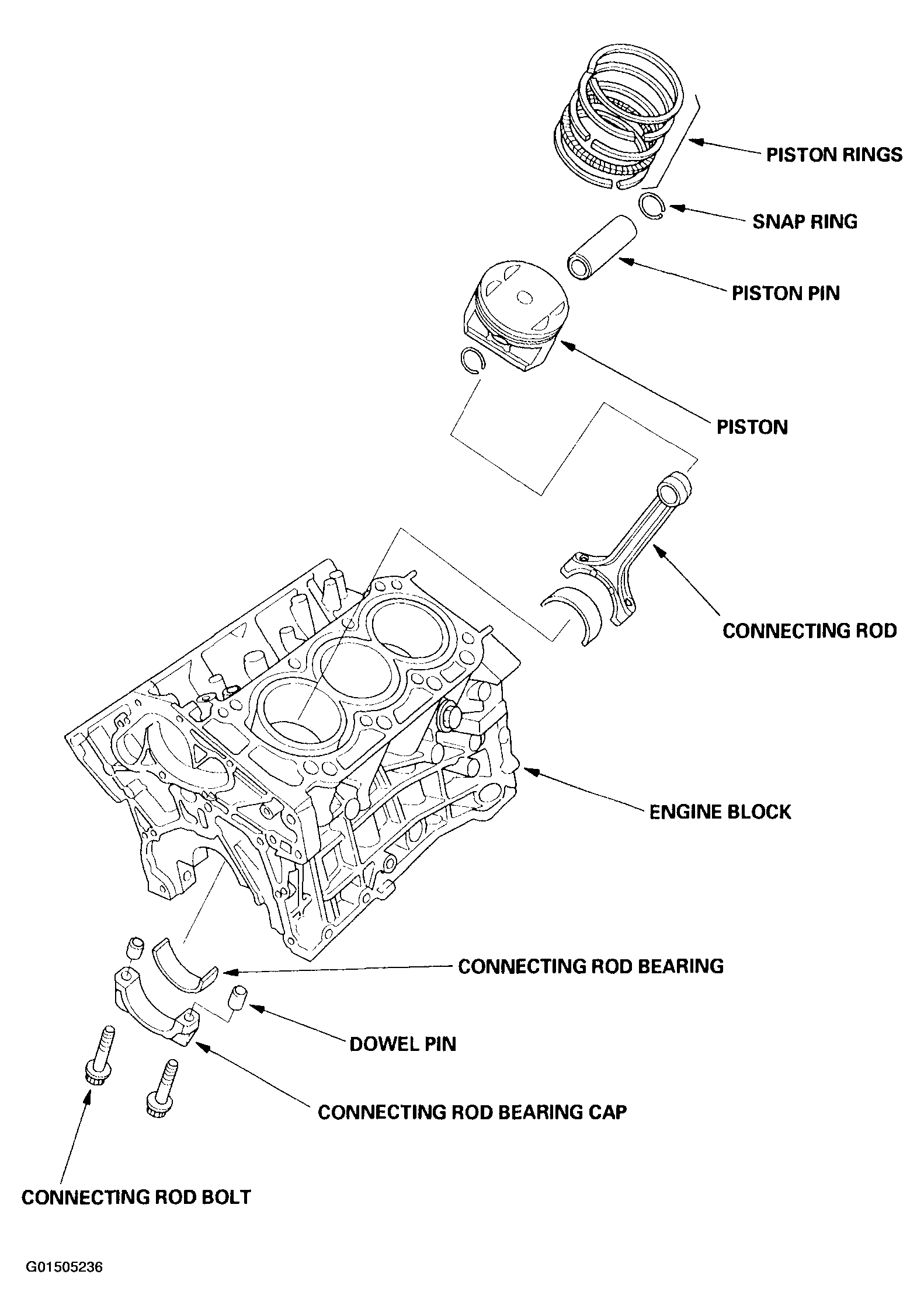

Fig 3: Identifying Component Location (3 Of 3)
G01505236Courtesy of AMERICAN HONDA MOTOR CO., INC.
