Sliding Door Panel Removal/Installation

Special Tools Required

Trim pad remover, Snap-on A177A, or equivalent, commercially available.

1. For EX and EX-L models: Disable the power sliding doors by turning off the main switch.

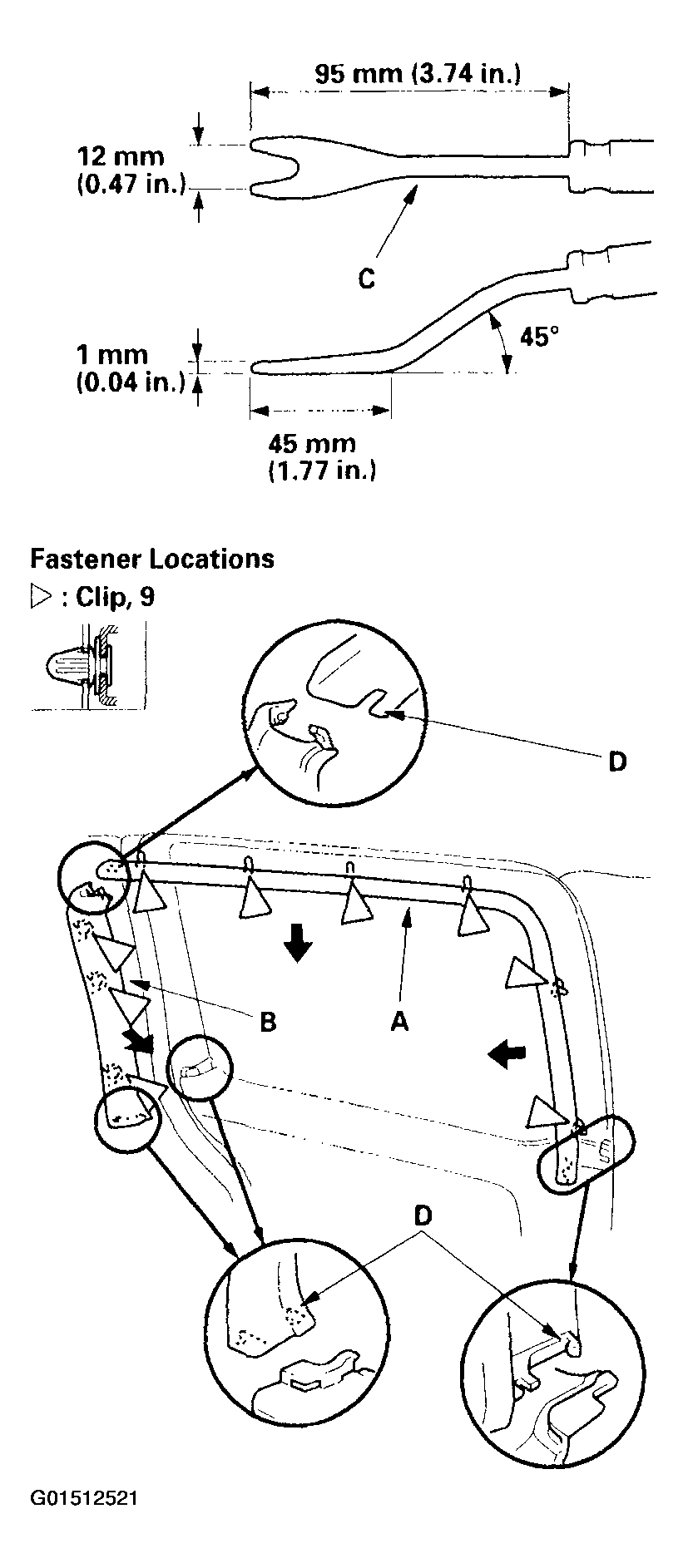

2. Release the clips that hold the front and rear upper trim (A, B) with a commercially available trim pad remover (C), release the hooks (D), and remove the trim. Remove the trim pieces with as little bending as possible to avoid creasing or breaking them.
   Fig 1: Releasing Clips Holding Front & Rear Upper Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

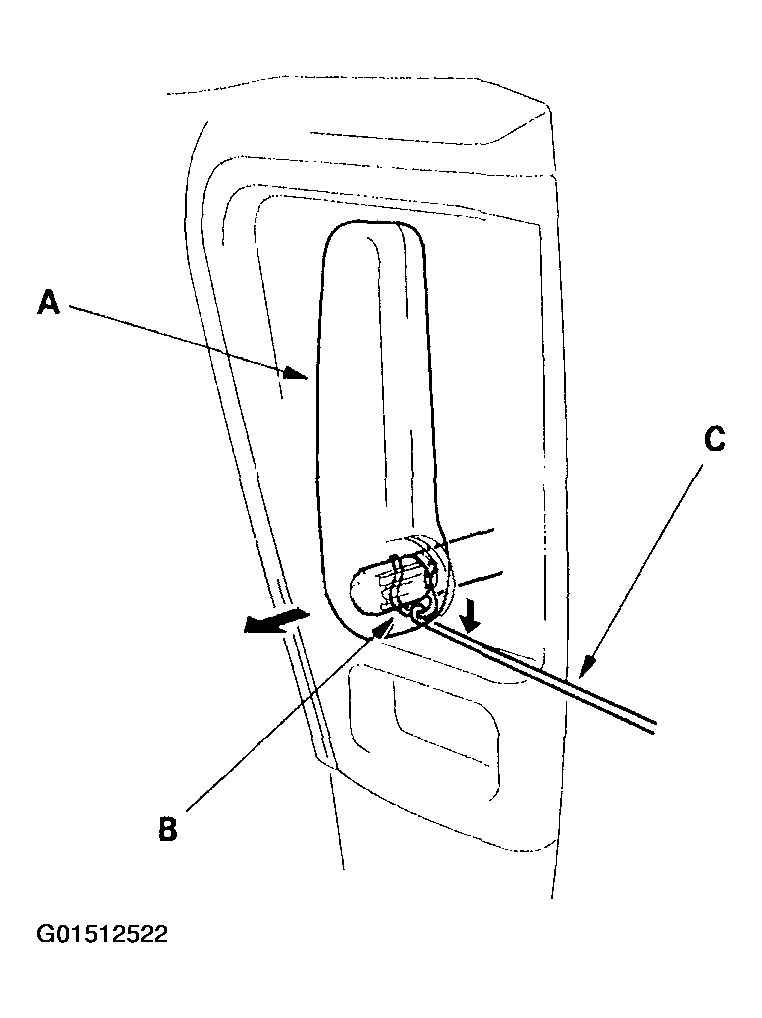

3. Remove the inner handle (A) by pulling the clip (B) out with a wire hook (C).
   Fig 2: Removing Inner Handle

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

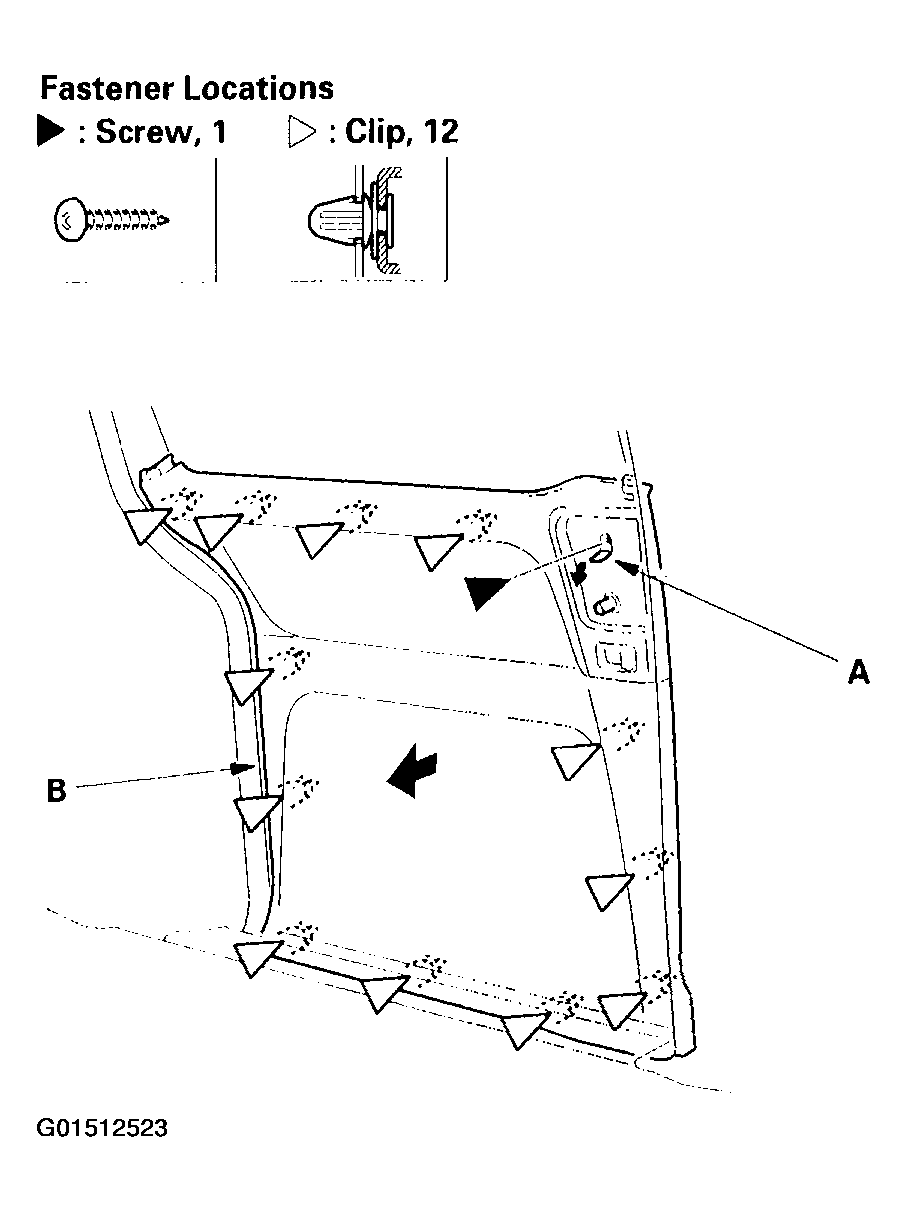

4. Pry out the cap (A), and remove the screw. Release the clips that hold the door panel (B) with the trim pad remover used in step  1, then remove the door panel. Remove the door panel with as little bending as possible to avoid creasing or breaking it.
   Fig 3: Prying Out Cap

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the door panel in the reverse order of removal, and note these items:
   • Replace any damaged clips.
   • Push the clips into place securely.
6. For EX and EX-L models: Re-home the power sliding doors (see RE-HOMING THE POWER SLIDING DOORS ).
