Fuel Fill Door Switch Replacement

NOTE: Put on gloves to protect your hands.

Remove these items:
- Third row seat belt retractor (see step 3 on AIR BAG RESTRAINT SYSTEMS article )
- Quarter plastic cover, as necessary (see Component Location Index )
Disconnect the fuel fill door switch connector (A), release the cable (B) from the cable clip (C), turn the switch (D) 90°, and remove it.

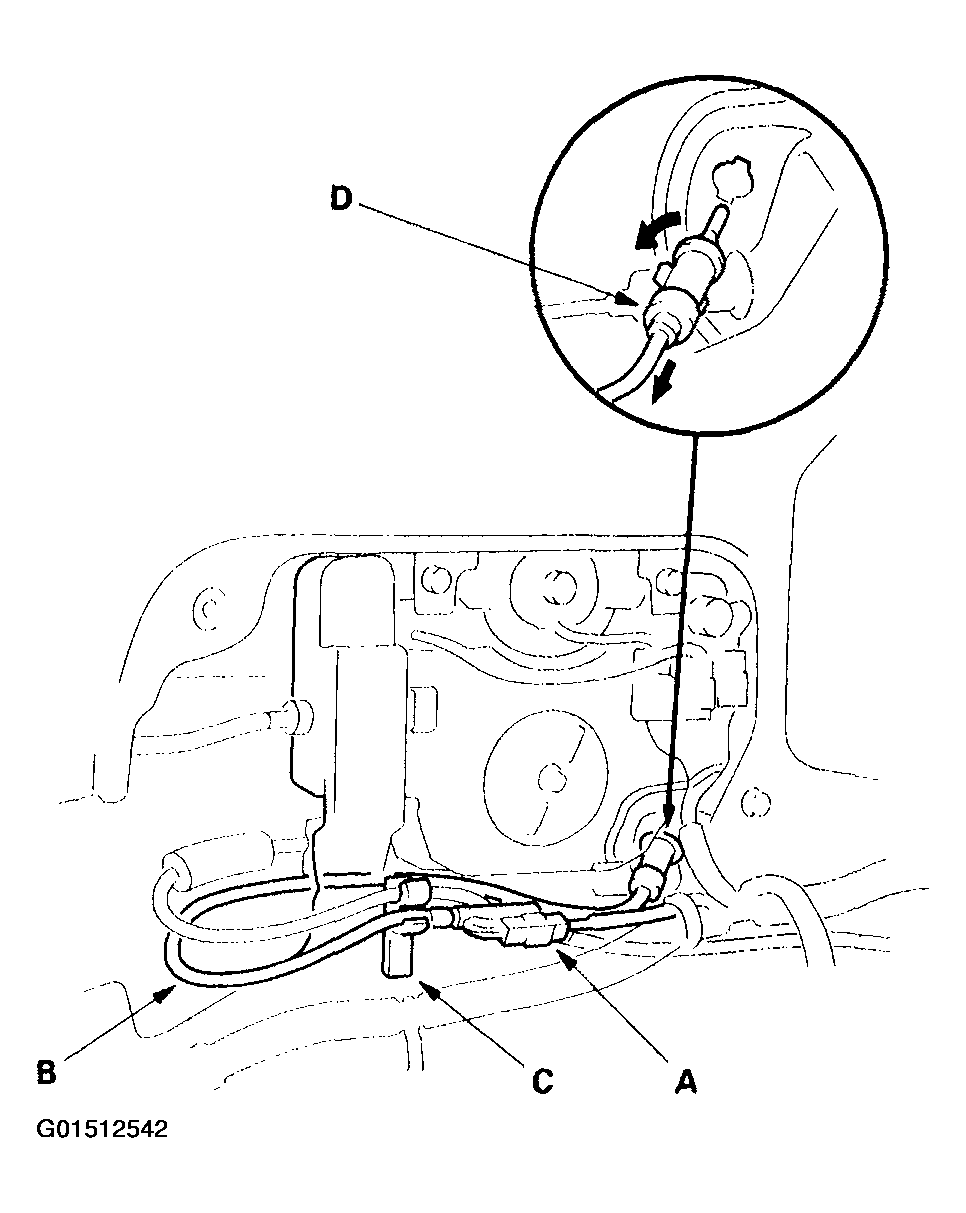

Fig 1: Disconnecting Fuel Fill Door Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal, and make sure the connector is plugged in properly.
