Front Door Position Adjustment

NOTE: Check for a flush fit with the body, then check for equal gaps between the front, rear, and bottom door edges and the body. Check that the door and body edges are parallel.

Place the vehicle on a firm, level surface when adjusting the doors.
Adjust the door (A):
- Support the door with a jack (B) that is padded with a shop towel (C).
- Loosen the door mounting bolts (D), and move the door up or down as necessary to equalize the gaps, and in or out until it's flush with the body.

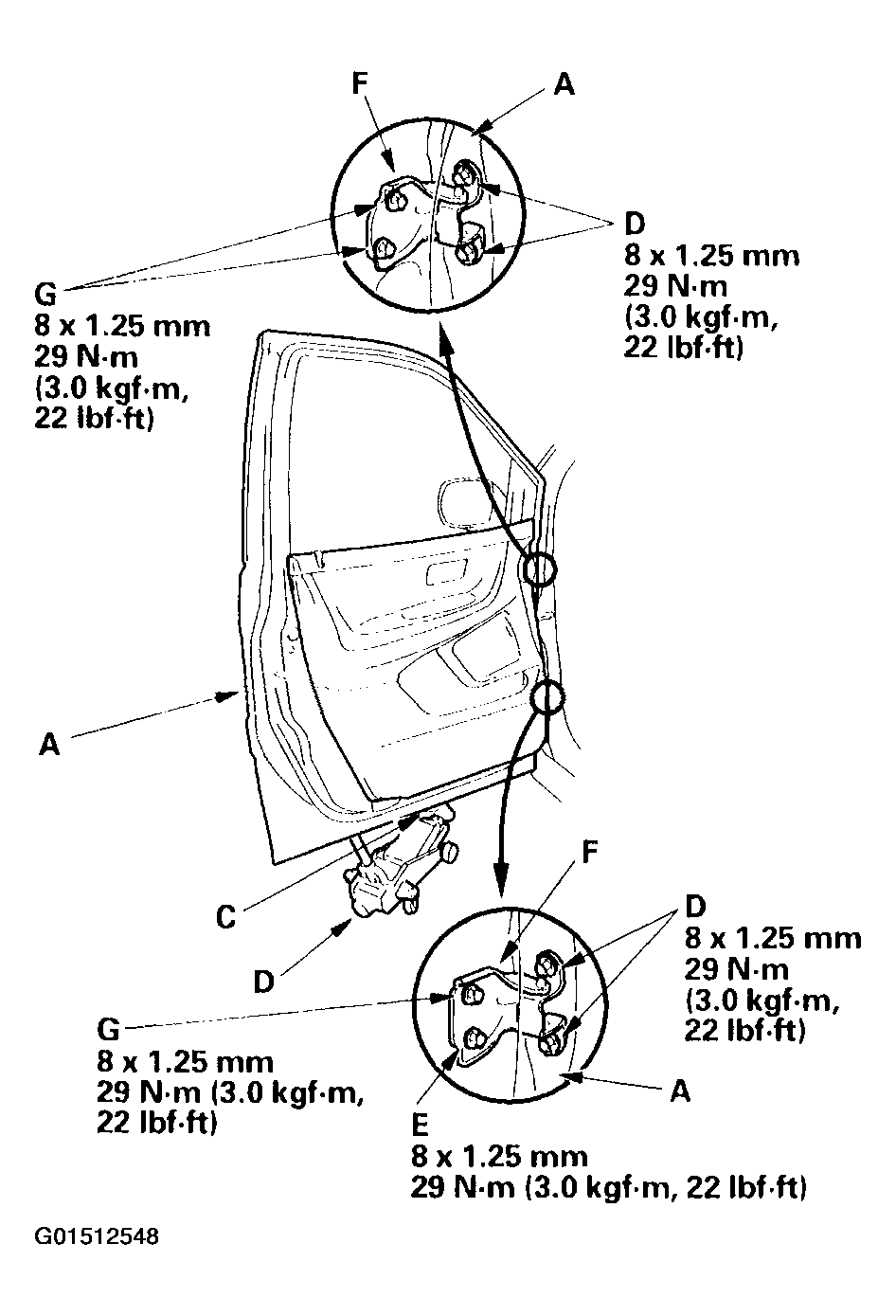

Fig 1: Adjusting Door
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, replace the hinge mounting bolt (E) with the adjusting bolt (P/N 90101-SZ3-000) made specifically for door adjustment, then adjust at the hinges (F):
Loosen the hinge mounting bolts (E, G) slightly, and move the door backward or forward, up or down as necessary to equalize the gaps.
Check that the door and body edges are parallel. If necessary, adjust the door cushions (A) to make the rear of the door flush with the body.

Fig 2: Adjusting Door Cushions
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply multipurpose grease to the pivot portions of the hinges indicated by the arrows.

Fig 3: Applying Multipurpose Grease
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply touch-up paint to the hinge mounting bolts, and around the hinges.
Check for water leaks (see step 7 on Front Door Glass Adjustment ).
Test-drive and check for wind noise.
