Front Door Latch Replacement

NOTE: Put on gloves to protect your hands.

Raise the glass fully.
Remove these items:
- Door panel (see Front Door Panel Removal/Installation )
- Plastic cover, as necessary (see Component Location Index )
- Outer handle (see Front Door Outer Handle Replacement )

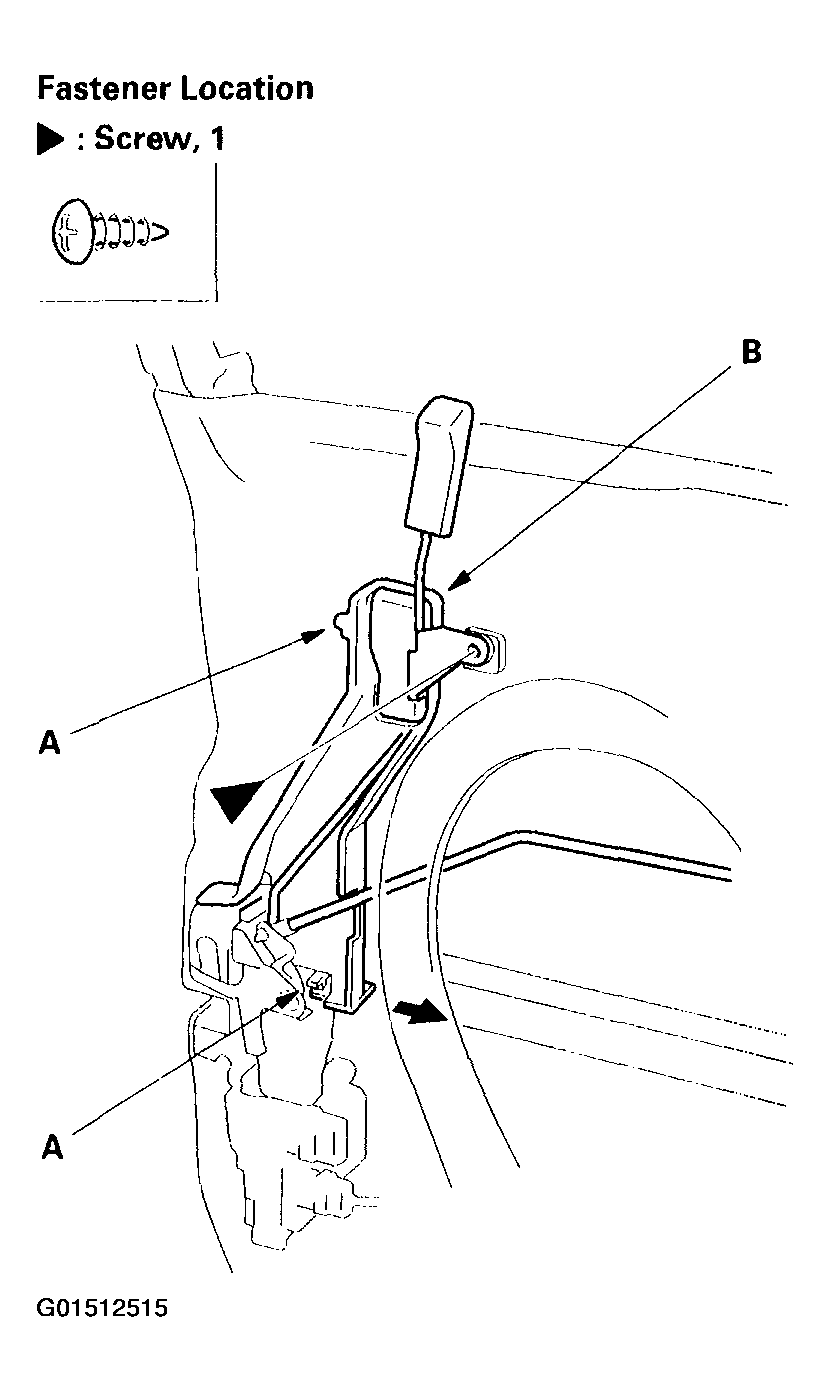

Remove the screw and detach the hooks (A), then remove the lock rod protector (B).

Fig 1: Removing Screw & Detaching Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

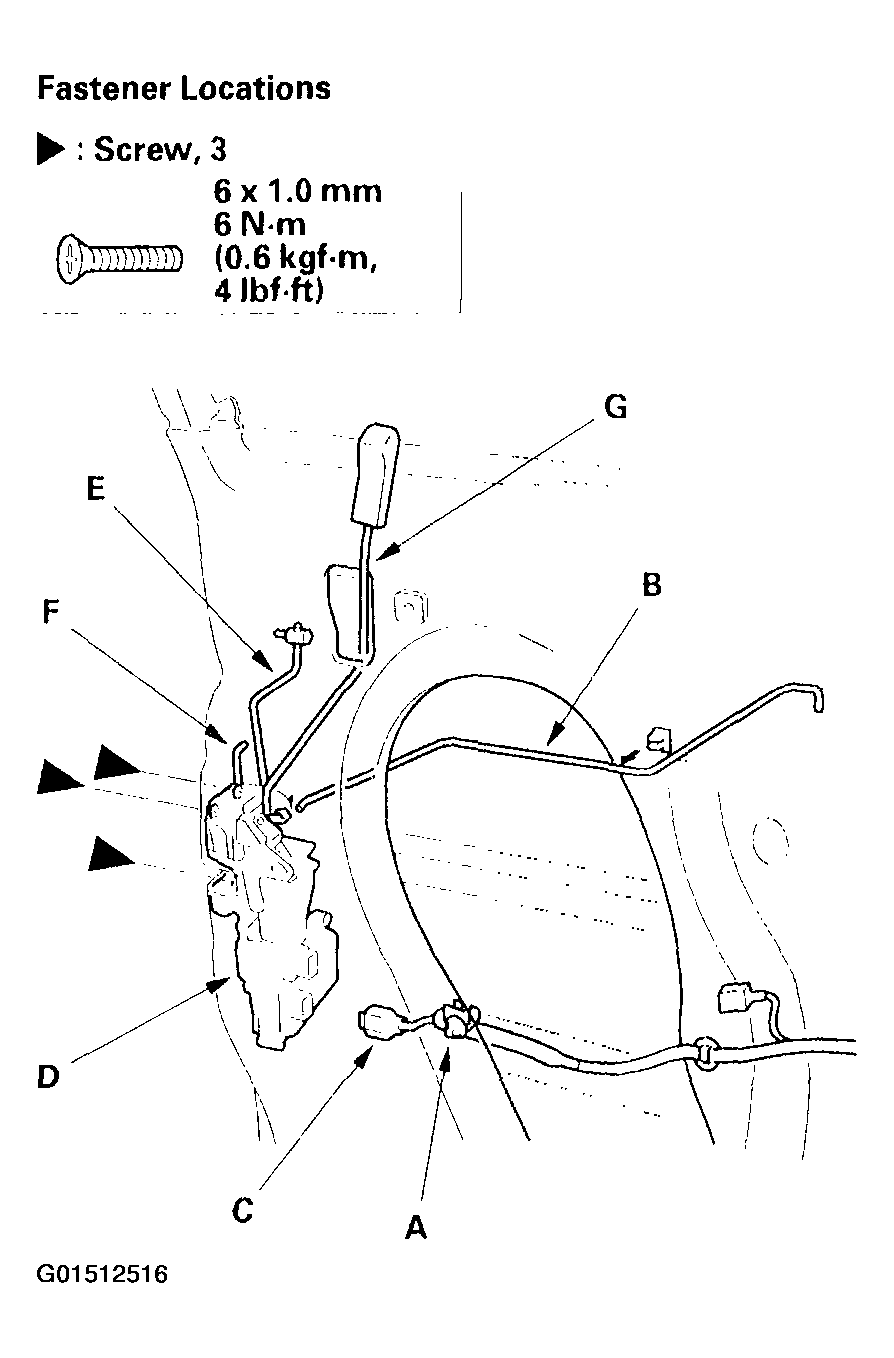

Detach the harness clip (A) and inner handle rod (B), and disconnect the actuator connector (C).

Fig 2: Detaching Harness Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws, then remove the latch (D) through the hole in the door. Take care not to bend the outer handle rod (E), cylinder rod (F), lock rod (G) and inner handle rod (B).
Install the latch in the reverse order of removal, and note these items:
- Make sure the actuator connectors are plugged in properly, and each rod is connected securely.
- Make sure the door locks and opens properly.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its perimeter.
- For '03-04 models: Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT '03-04 ).
