Home >> Honda >> 2000 >> Odyssey EX >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirrors >> Circuit Diagram-with Defogger

Circuit Diagram-with Defogger

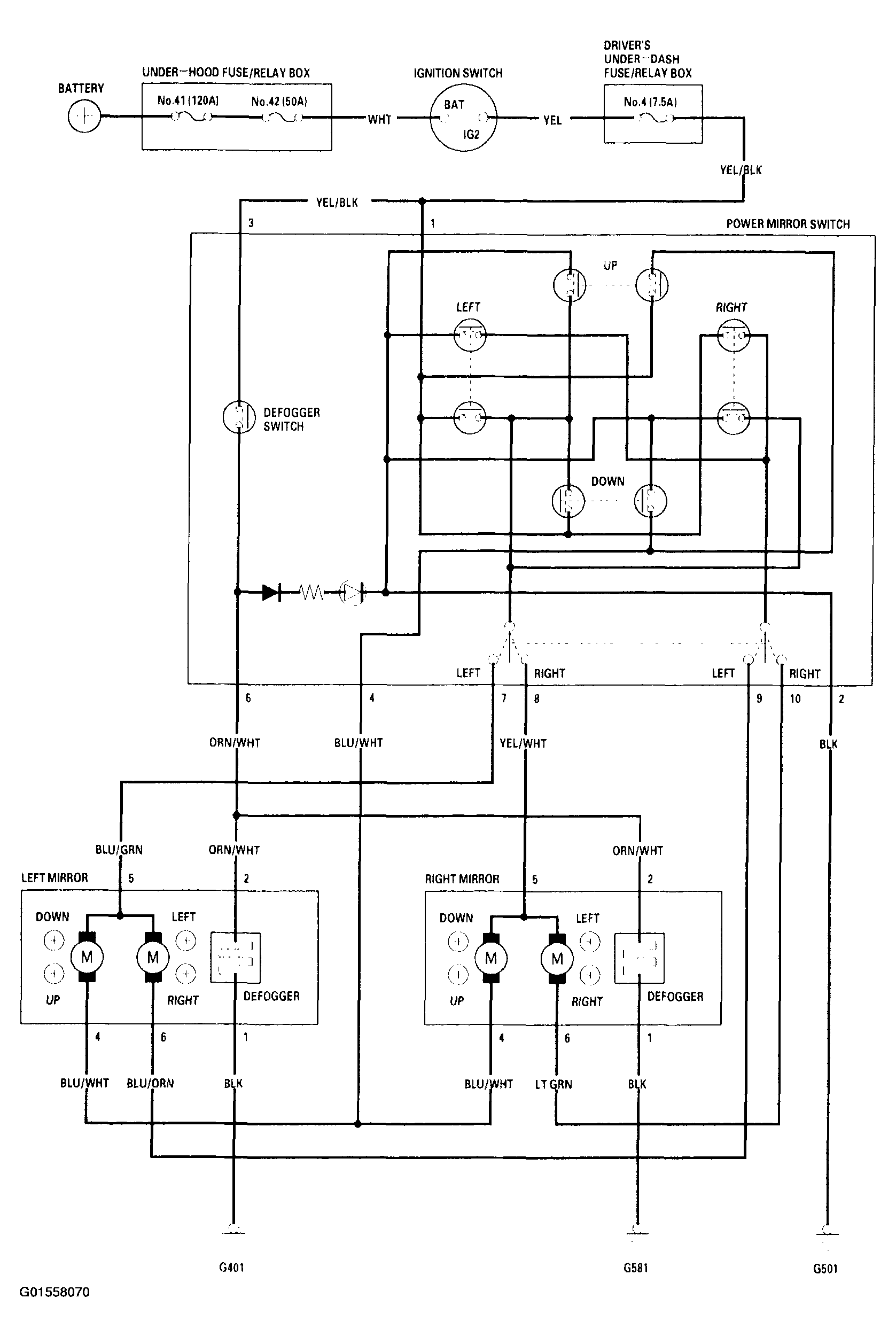

Fig 1: Power Mirror Circuit Diagram (With Defogger)

G01558070

Courtesy of AMERICAN HONDA MOTOR CO., INC.
