Steering Wheel Rotational Play Check
- Turn the front wheels to the straight ahead position.

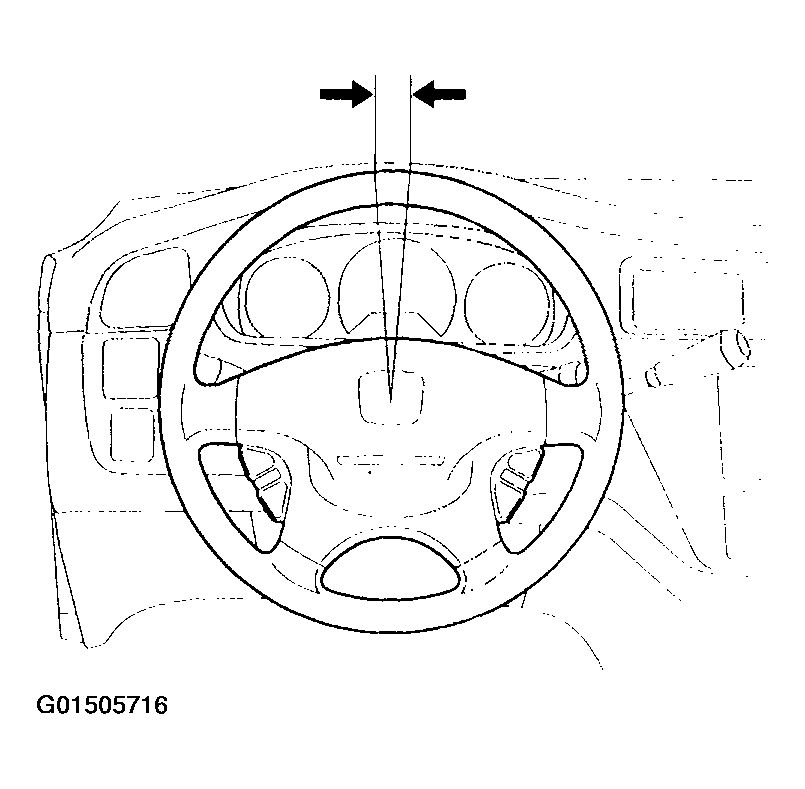

- Measure how far you can turn the steering wheel left and light without moving the front wheels.
- If the play is within the limit, the gearbox and steering linkages are OK.
- If the play exceeds the limit, adjust the rack guide (see Rack Guide Adjustment
). If the play is still excessive after rack guide adjustment, inspect the steering linkage and gearbox (see Steering linkage and Gearbox Inspection
).
ROTATIONAL PLAY: 0-10 mm (0-0.39 in.)
