Steering Gearbox Overhaul: Disassembly

  1. Remove the boot band (A) and tie-rod clips (B). Pull the boots away from the ends of the steering gearbox.

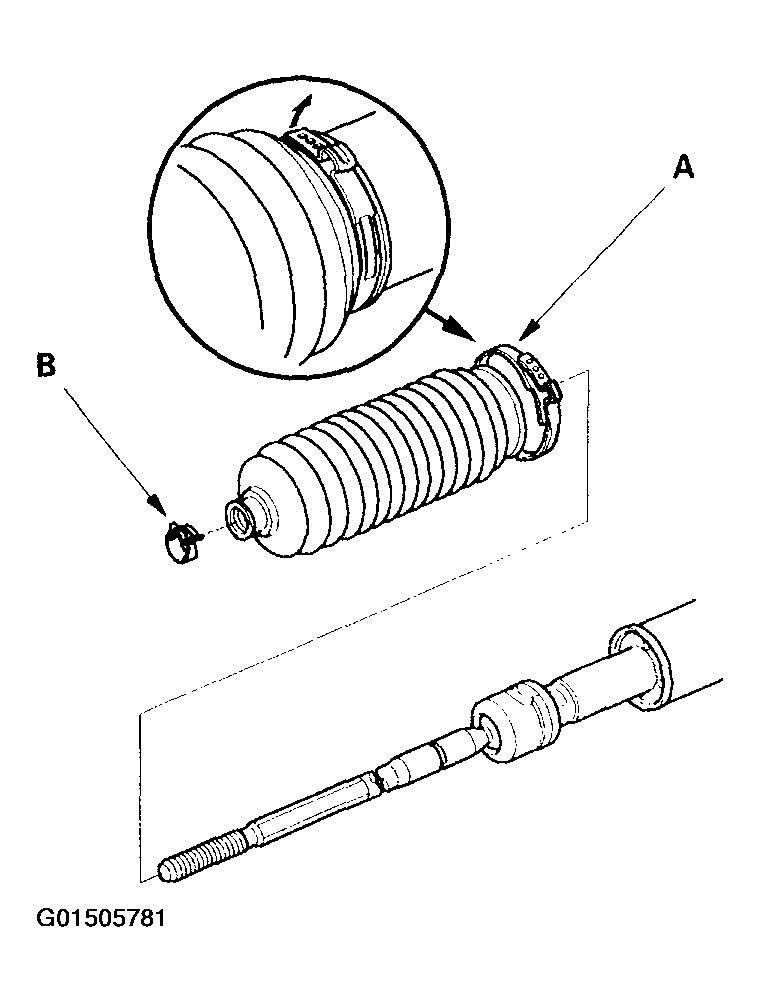

    Fig 1: Removing Boot Band
    G01505781Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Unbend the lock washer (A).
    Fig 2: Unbending Lock Washer
    G01505782Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Hold the flat surface sections (A) on the right side steering rack (B) with a wrench, and unscrew the both rack ends (C) with another wrench. Be careful not to damage the rack surface with the wrench. Remove the lock washer (D) and stop washer (E).

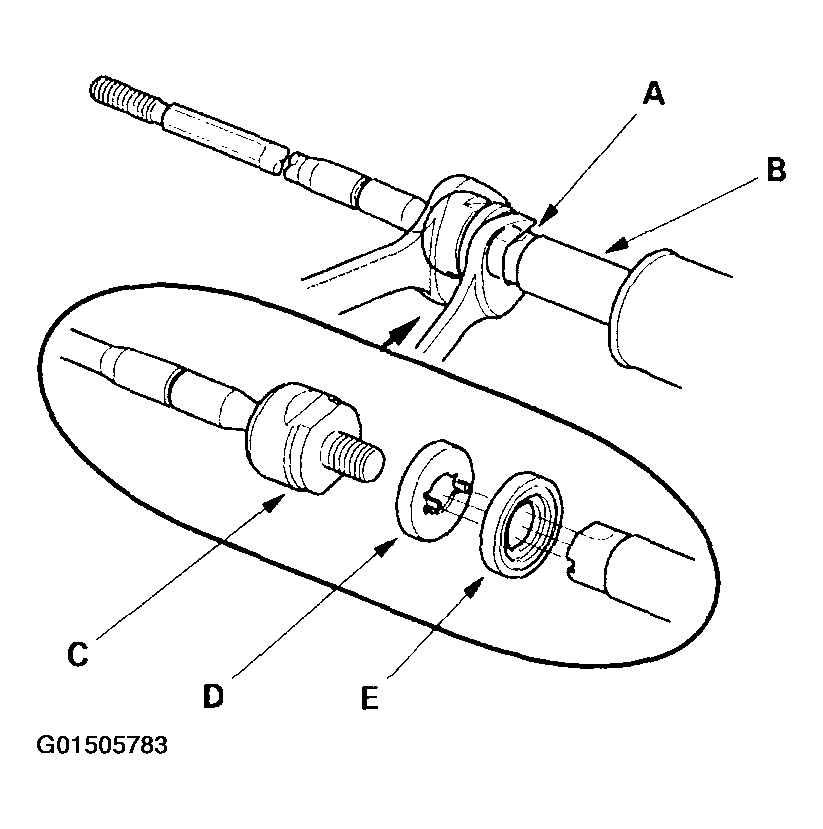

    Fig 3: Holding Flat Surface Sections On Right Side Steering Rack
    G01505783Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Loosen the locknut (A), then remove the rack guide screw (B).
    Fig 4: Loosening Locknut
    G01505784Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the spring (C) and the rack guide (D) from the gearbox.
  6. Remove the cylinder lines from the gearbox.
    Fig 5: Removing Cylinder Lines From Gearbox
    G01505785Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Drain the fluid from the cylinder fittings by slowly moving the steering rack back and forth.
  8. Remove the end plug (A) from the gearbox housing, then remove the nut (B) from the pinion shaft end.

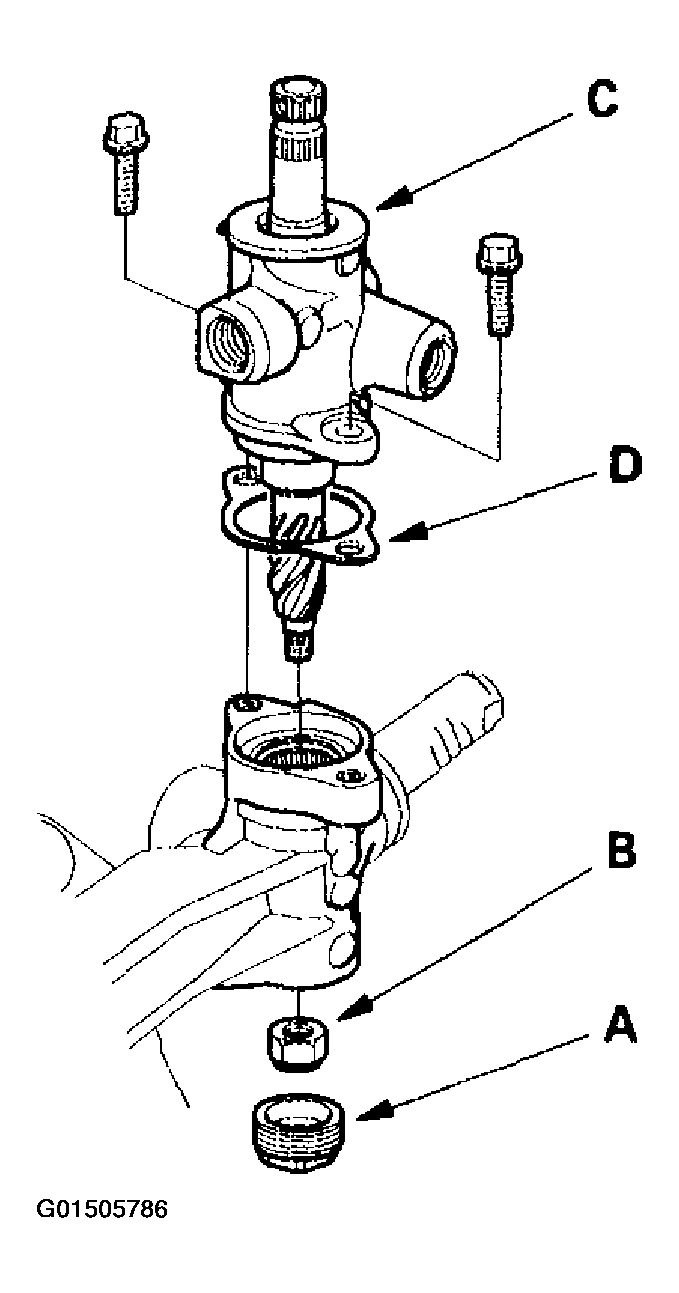

    Fig 6: Removing End Plug
    G01505786Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the two flange bolts, the valve body unit (C) and gasket (D) from the gearbox. Check that the valve turns smoothly by turning the pinion shaft. If any play or roughness is felt, replace the valve body unit with a new part if necessary. Do not try to disassemble the valve body unit.
  10. Slide the steering rack all the way to the left.
  11. Turn the rack stop (A) counterclockwise until the end of the circlip (B) sticks out from the hole (C) in the rack stop. Then turn it clockwise to remove the circlip (D).

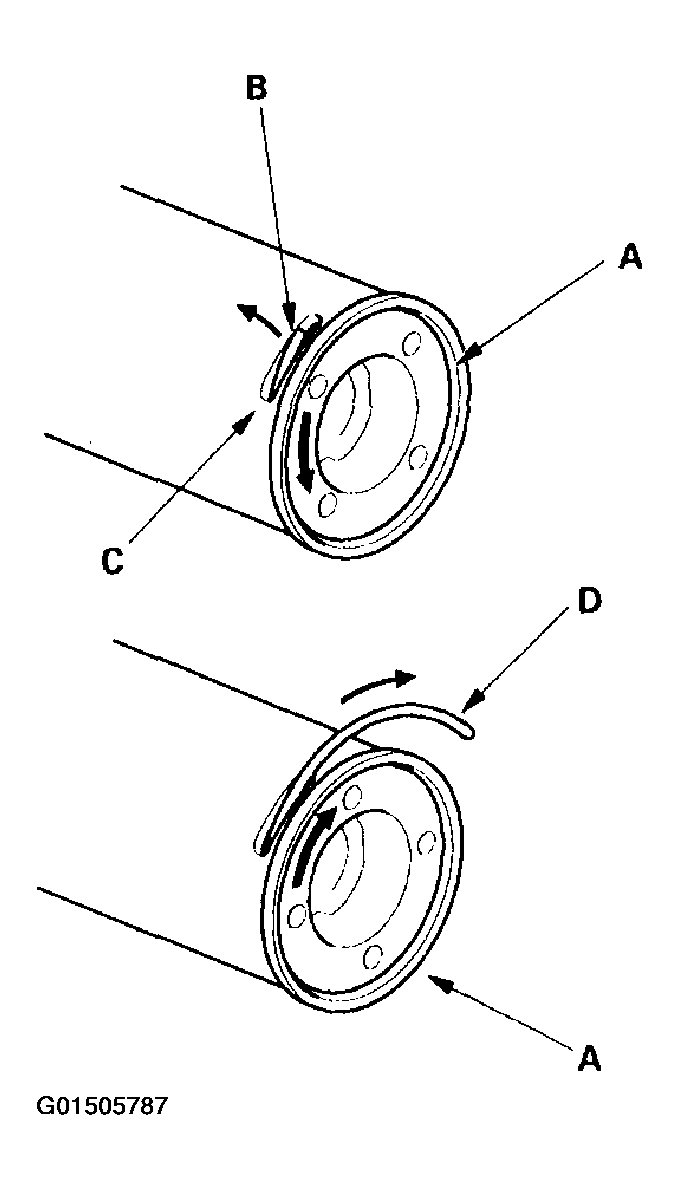

    Fig 7: Turning Rack Stop
    G01505787Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Remove the rack stop (A), rack bushing (B) and steering rack (C) from the steering gearbox.
    Fig 8: Removing Rack Stop
    G01505788Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the O-ring (A) and cylinder end seal (B) from the rack bushing (C).
    Fig 9: Removing O-ring
    G01505789Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Carefully pry the piston seal ring (A) and O-ring (B) off the rack piston. Be careful not to damage the inside of seal ring groove and piston edges when removing the seal ring.
    Fig 10: Prying Piston Seal Ring
    G01505790Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Install a washer (O.D. 27.5 mm, P/N 94103-10400) (A) so it will fit through the rack guide hole of the gearbox housing, then position the washer on the cylinder end seal (B). Make sure that the washer is securely positioned on the cylinder end seal edges.
    Fig 11: Installing Washer
    G01505791Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Install the socket wrench with a 27.5 mm O.D. (A) onto the 24" long 3/8" drive extension (B), and carefully place it on the washer (C).
    Fig 12: Installing Socket Wrench
    G01505792Courtesy of AMERICAN HONDA MOTOR CO., INC.

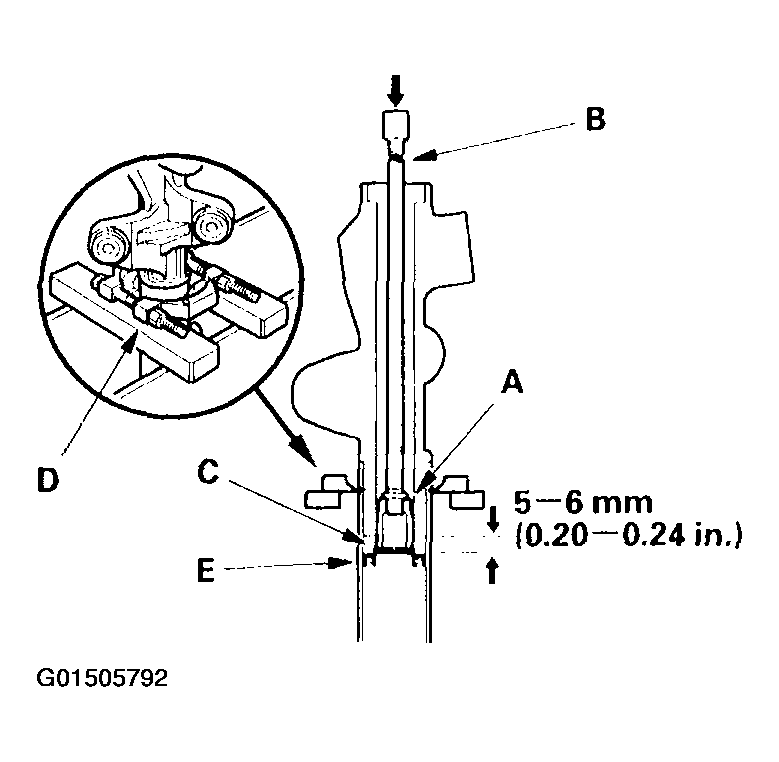

  17. Install a commercially available bearing separator (D) on the gearbox housing. Set the steering gearbox in a press so the gearbox housing points upward, then push out the cylinder end seal (E) 5-6 mm (0.200.24 in.) by pressing on the 24" long 3/8" drive extension end.
  18. Remove the steering gearbox from the press, and remove the washer from the gearbox.
  19. Turn the special tool so it will fit through the rack guide hole of the steering gearbox, then position the special tool on the cylinder end seal (A). Make sure that the special tool is securely positioned on the seal edges.
    Fig 13: Positioning Special Tool On Cylinder End Seal
    G01505793Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Insert a 24" long 3/8" drive extension (A), on the special tool. Place the steering gearbox in a press, then remove the cylinder end seal (B) from of the gearbox by pressing on the 24" long 3/8" drive extension.

    Note these items when pressing the cylinder end seal:

    • Keep the tool straight to avoid damaging the cylinder wall. Check the tool angle, and correct it if necessary, when removing the cylinder end seal.
    • Use a press to remove the cylinder end seal. Do not try to remove the seal by striking the tool; striking the tool would break the cylinder end seal, and the seal would remain in the gearbox.
    Fig 14: Inserting Drive Extension
    G01505794Courtesy of AMERICAN HONDA MOTOR CO., INC.
