Center Lower Console Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations, (see AIR BAG RESTRAINTS SYSTEM article), and the precautions and procedures (see AIR BAG RESTRAINTS SYSTEM article ) before performing repairs or service.

NOTE: Take care not to scratch the dashboard and related parts.

Remove the center lower pocket (see Center Lower Pocket Removal/Installation ).
For some '02-04 models: Remove the DVD player unit (see DVD PLAYER UNIT REMOVAL/INSTALLATION ).
Remove the center lower console (A).
- 1 Remove the screws.
- 2 Gently pull out the console.
- 3 Disconnect the accessory socket connector (B), and remove the console.

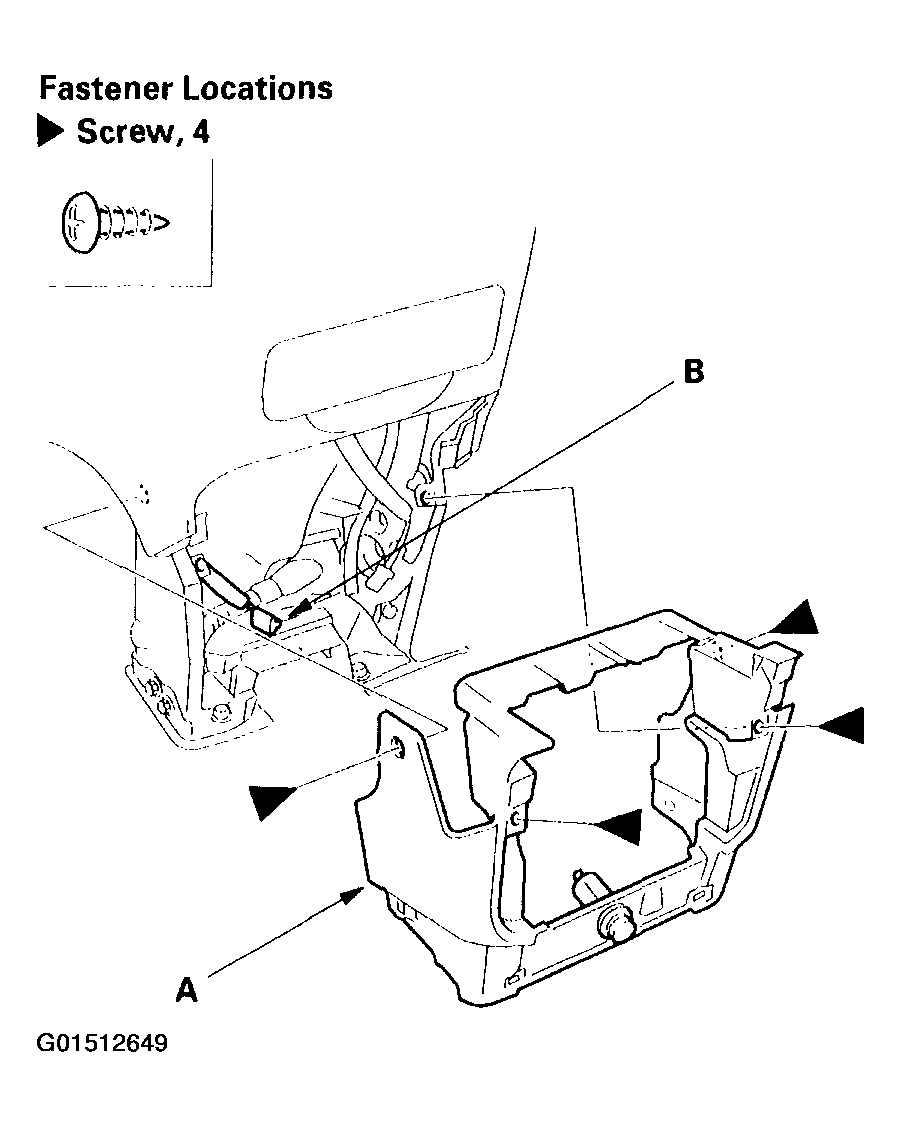

Fig 1: Removing Center Lower Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the console in the reverse order of removal, and make sure the accessory socket connector is plugged in properly.
