Rear Mode Control Motor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Disconnect the 7P connector (A) from the rear mode control motor (B). Remove the self-tapping screws and the rear mode control motor from the rear HVAC unit.

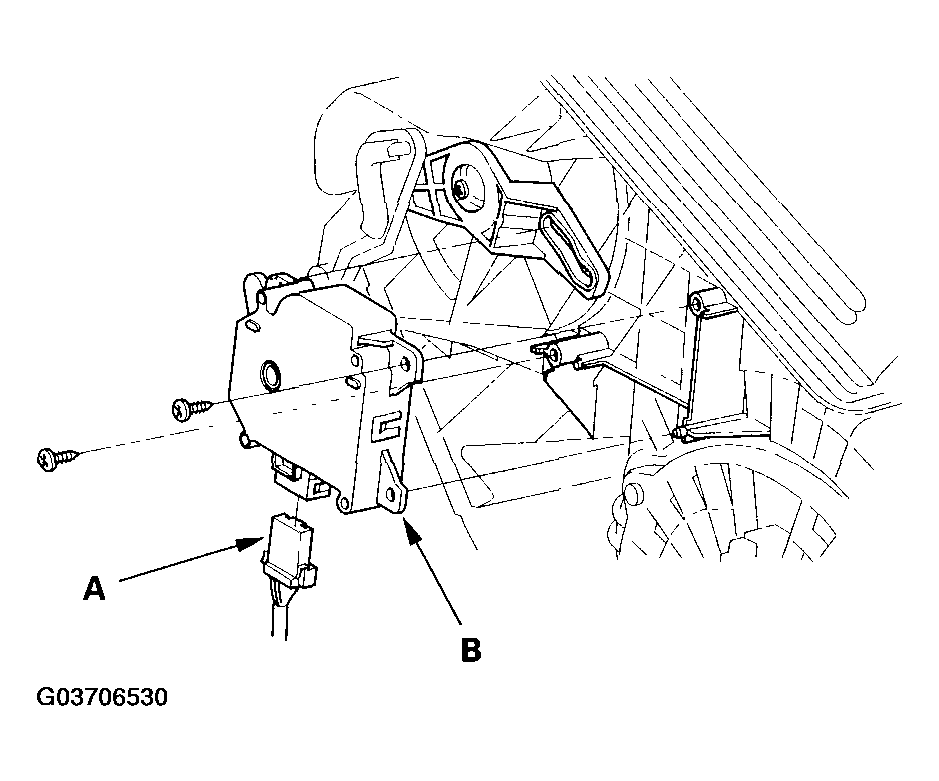

    Fig 1: Disconnecting 7P Connector From Rear Mode Control Motor
    G03706530Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
