Rear Window Intermittent Wiper Control Unit Input Test
WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

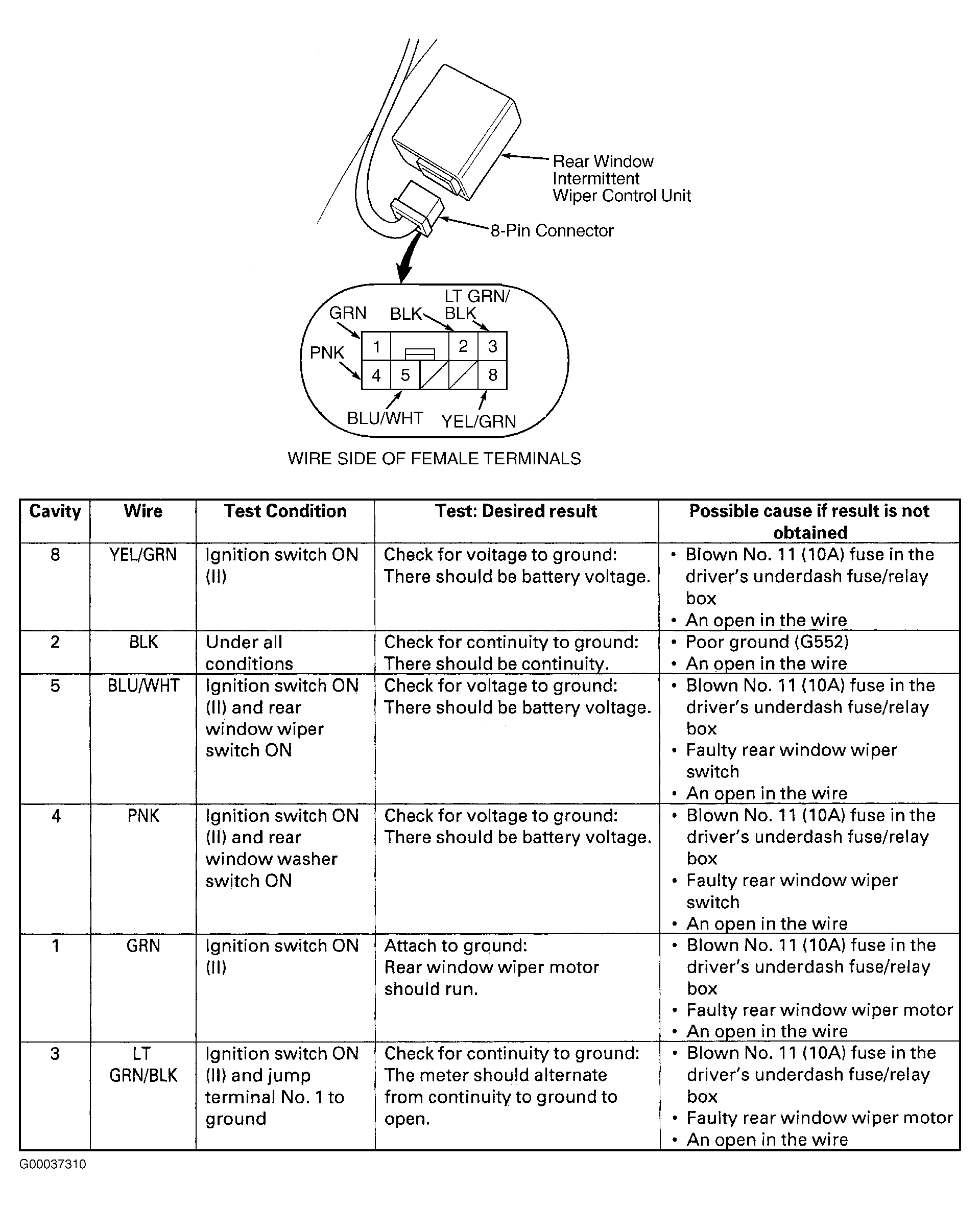

- Remove left rear side trim panel. Unplug 8-pin connector from rear window intermittent wiper control unit. See Fig 1 . Inspect connector terminals for damage or corrosion. Repair as necessary and retest system. If connector and terminals are okay, go to next step.
- Using DVOM, perform control unit input tests. See Fig 1 . If an input test indicates a problem, find and correct cause and retest system. If all input test results are okay, replace faulty rear window intermittent wiper control unit.
