Release Bearing Replacement

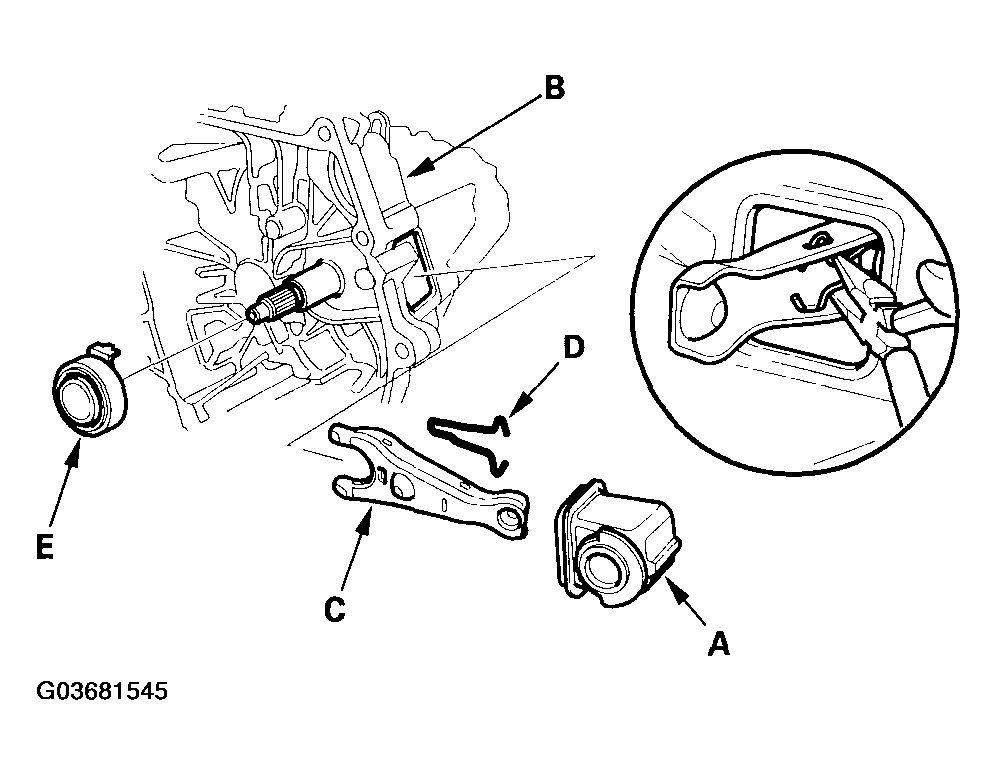

Remove the release fork boot (A) from the clutch housing (B).

Fig 1: Removing Release Fork Boot From Clutch Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the release fork (C) from the clutch housing by squeezing the release fork set spring (D) with pliers. Remove the release bearing (E).
Check the play of the release bearing by spinning it with your hand. If there is excessive play, replace the release bearing.
NOTE: The release bearing is packed with grease. Do not wash it in solvent.

Fig 2: Checking Play Of Release Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

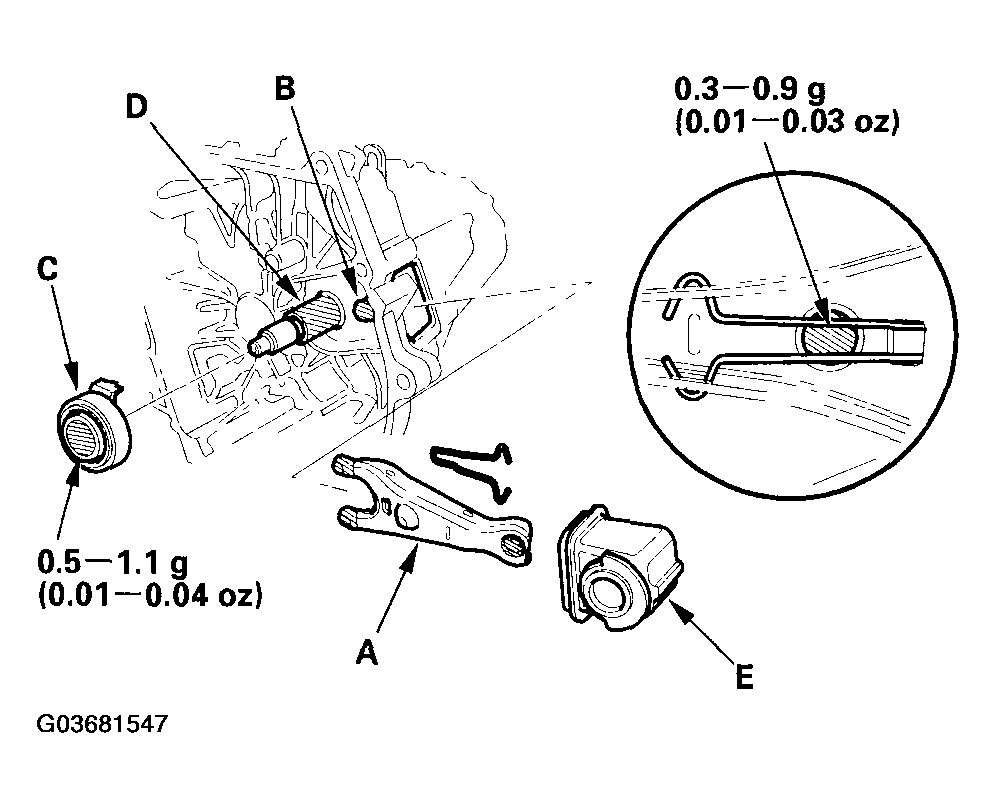

Apply super high temp urea grease (P/N08798-9002) to the release fork (A), the release fork bolt (B), the release bearing (C), and the release bearing guide (D) in the shaded areas.

Fig 3: Installing Release Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the release fork slid between the release bearing pawls, install the release bearing on the mainshaft while inserting the release fork through the hole in the clutch housing.
Align the detent of the release fork with the release fork bolt, then press the release fork over the release fork bolt squarely.
Install the release fork boot (E). Make sure the boot seals around the release fork and the clutch housing.

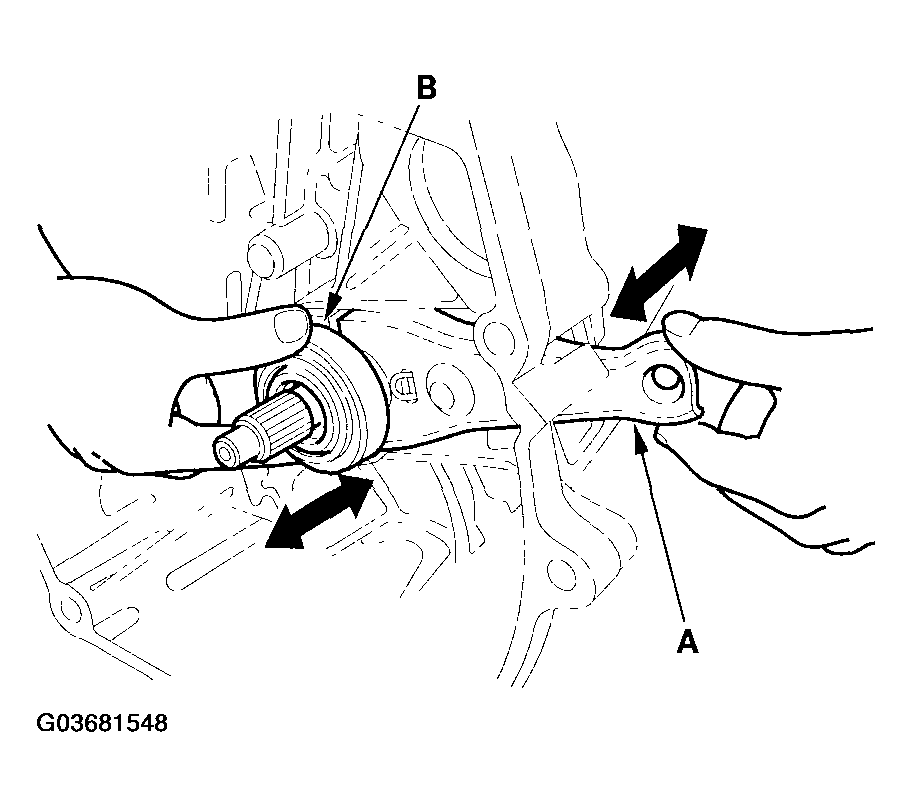

Move the release fork (A) right and left to make sure it fits properly against the release bearing (B) and the release bearing slides smoothly.

Fig 4: Moving Release Fork
Courtesy of AMERICAN HONDA MOTOR CO., INC.
