Exploded View

NOTE: Bolts and nuts with the * mark are special corrosion-resistant Dacro fasteners. Use the same type if replacement is necessary.

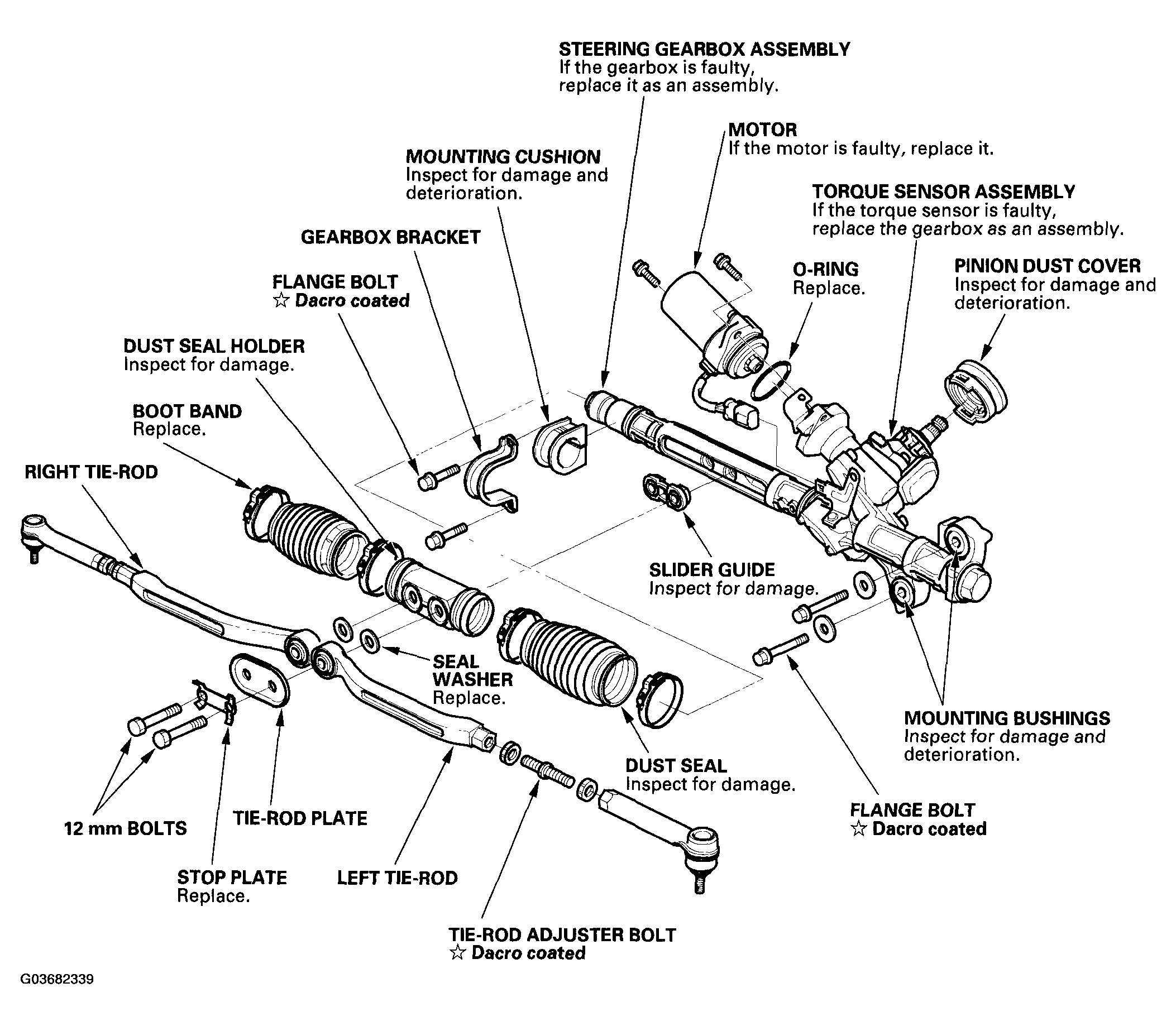

Fig 1: Exploded View Of Steering Gearbox Overhaul
G03682339Courtesy of AMERICAN HONDA MOTOR CO., INC.
