Rack Guide Removal/Installation
NOTE:
During removal/installation, do not allow dust, dirt, or other foreign materials to enter the gearbox.

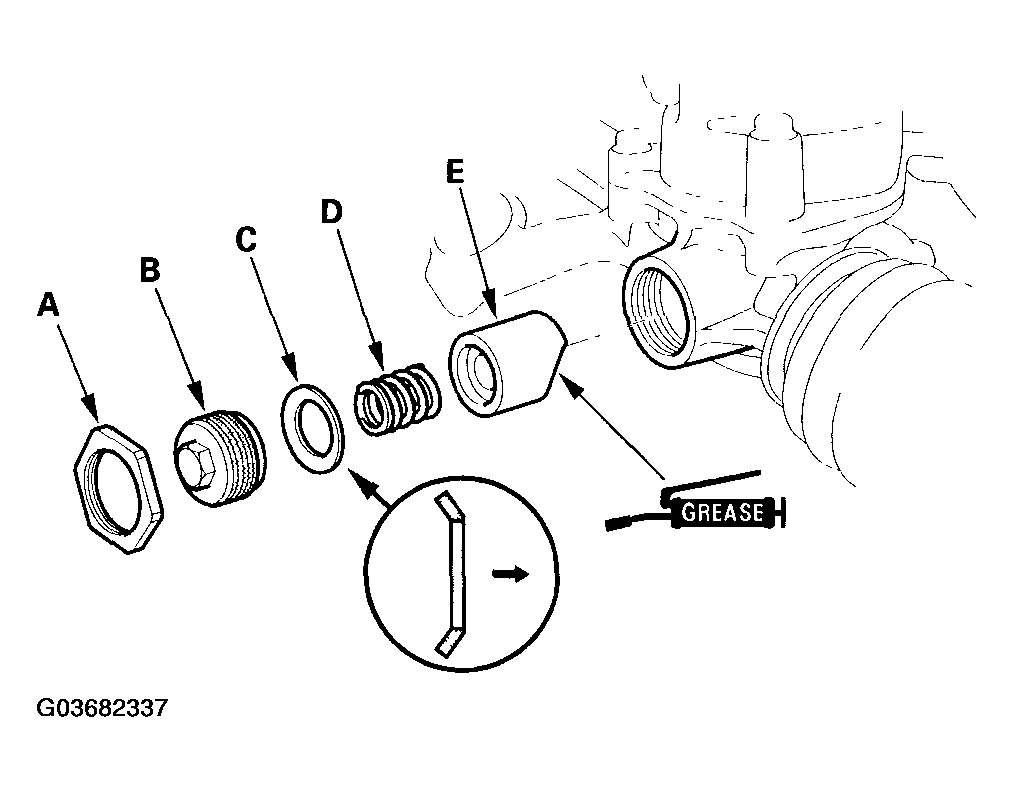

- Loosen the locknut (A), then remove the rack guide screw (B), disc washer (C), spring (D), and rack guide (E).
- Grease the sliding surface of the rack guide, and install it onto the gearbox housing.
- Install the spring.
- Install the disc washer with its convex side facing in.
- Remove the old sealant from rack guide screw, and loosely install the rack guide screw on the steering gearbox.
- Loosely install the locknut.
- Adjust the rack guide screw (see STEERING LOCK REPLACEMENT ). After adjusting, check that the rack moves smoothly by sliding the rack right and left.
