Power Window Motor, Driver's Connector End View
Power Window Motor, Driver's Connector End View

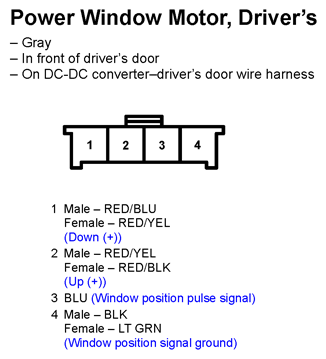

Fig 1: Power Window Motor, Driver's Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
