Hatch Opener Relay Connector End View

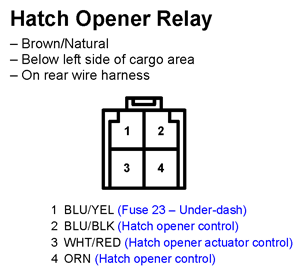

Fig 1: Hatch Opener Relay Connector End View

G11250523

Courtesy of AMERICAN HONDA MOTOR CO., INC.
