Heater Control Panel Inputs and Outputs

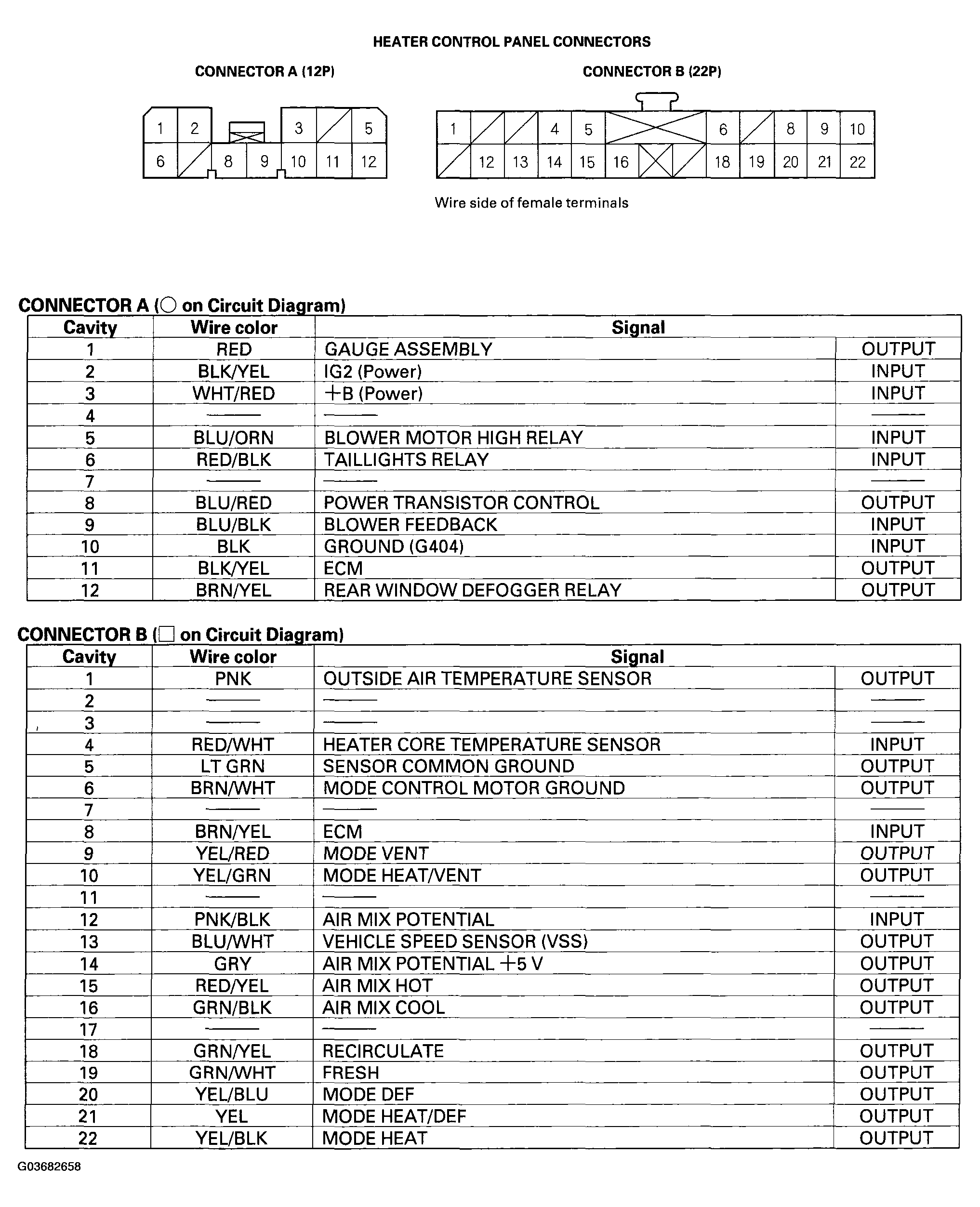

Fig 1: Identifying Heater Control Panel Inputs And Outputs Connectors

G03682658

Courtesy of AMERICAN HONDA MOTOR CO., INC.
