Component Location Index

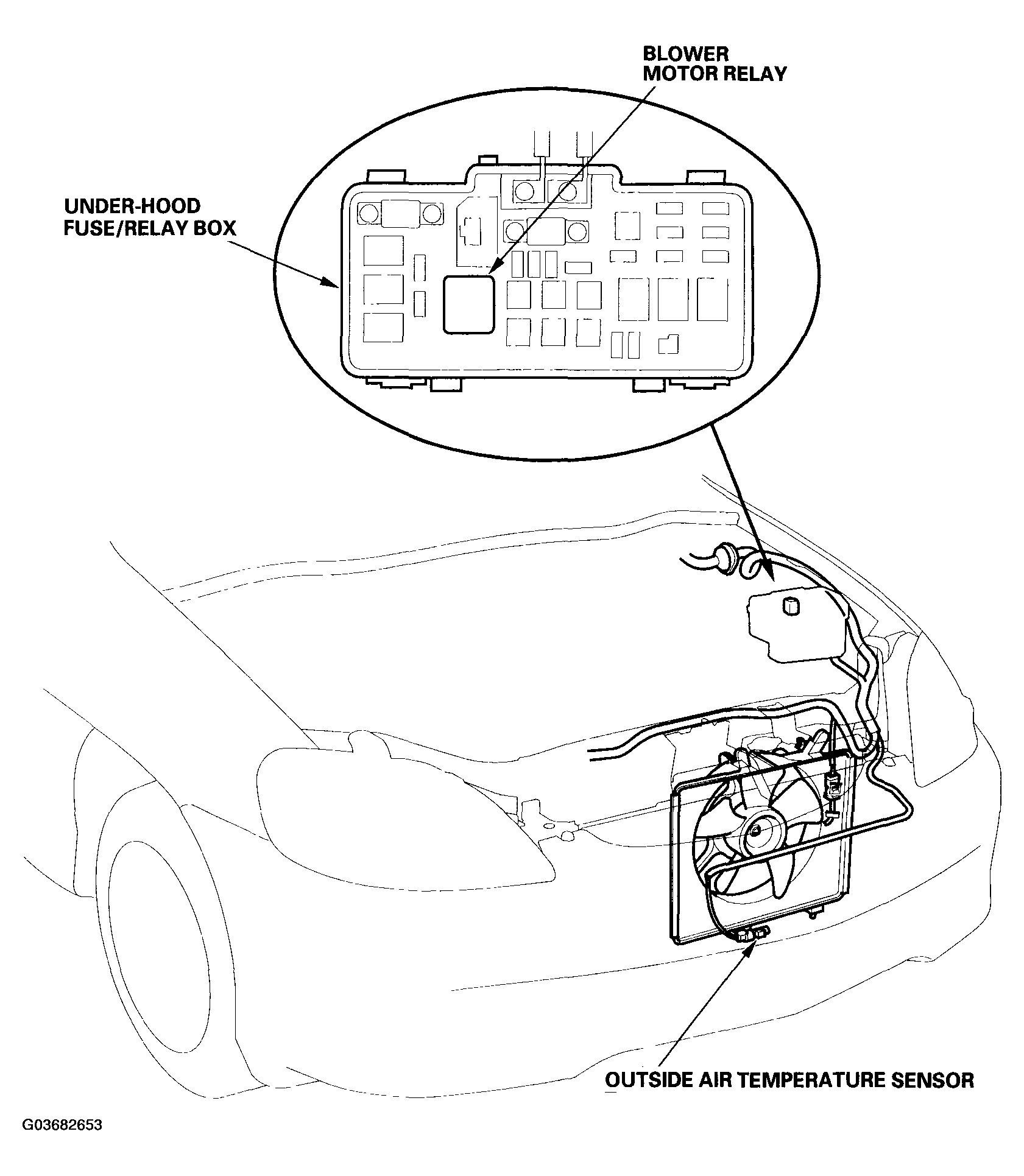

Fig 1: Identifying Heating Components Location (1 Of 2)
G03682653Courtesy of AMERICAN HONDA MOTOR CO., INC.

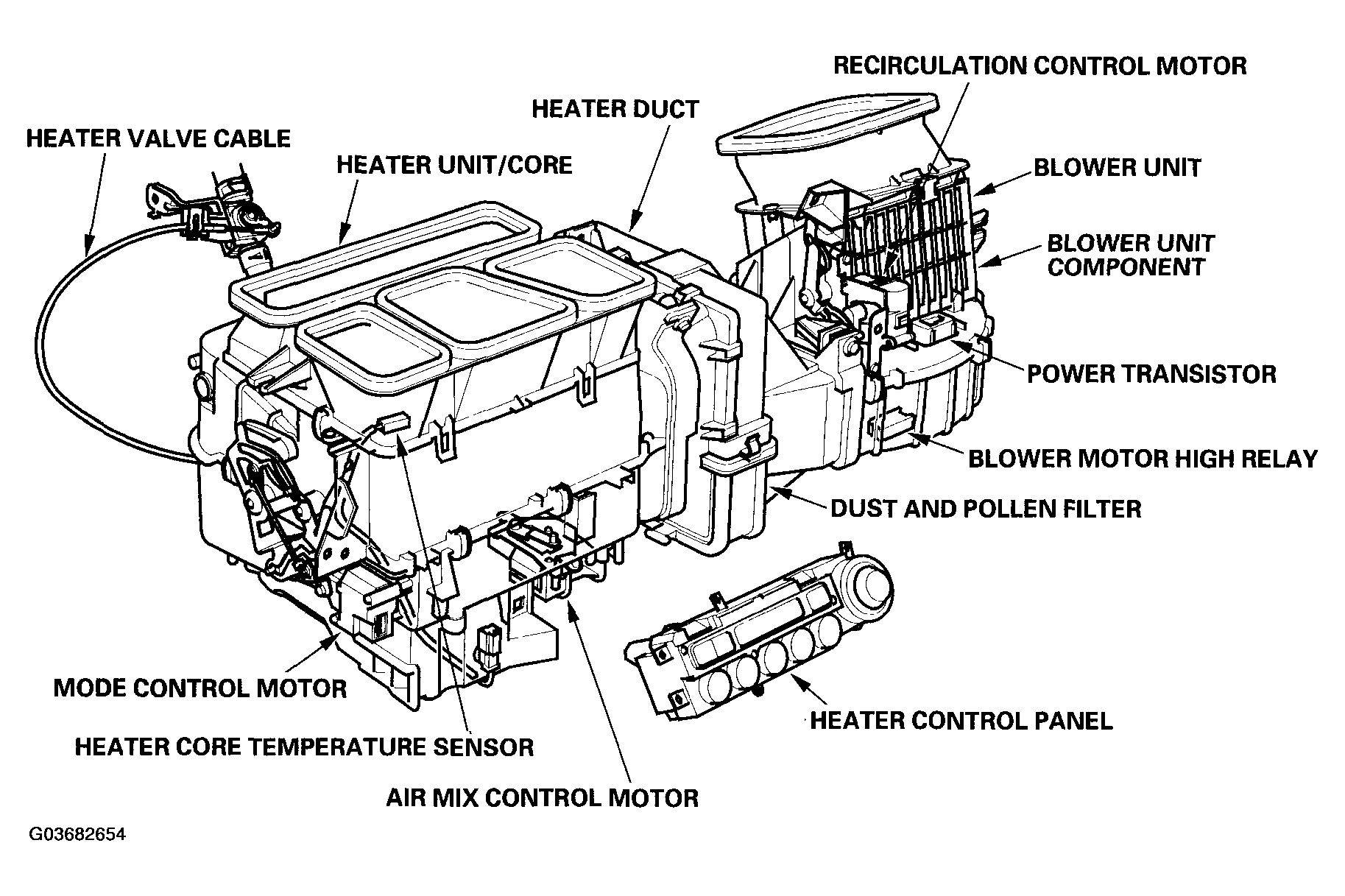

Fig 2: Identifying Heating Components Location (2 Of 2)
G03682654Courtesy of AMERICAN HONDA MOTOR CO., INC.
