Section 3 (Rear Suspension System): Description

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2000 Honda Prelude, 2000 Honda Odyssey, 2000 Honda Civic, 2000 Honda CR-V, and 2000 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Accord, Civic, CR-V, Prelude and S2000 use an independent strut type suspension. Main components of rear suspension are a vertically-mounted strut, trailing arm, upper and lower control arms, knuckle, stabilizer bar and hub assembly. See Fig 1 and Fig 3 .

Odyssey main rear suspension components are a shock absorber, coil spring, trailing arm, upper and lower control arms, knuckle, stabilizer bar and hub assembly. See Fig 2.

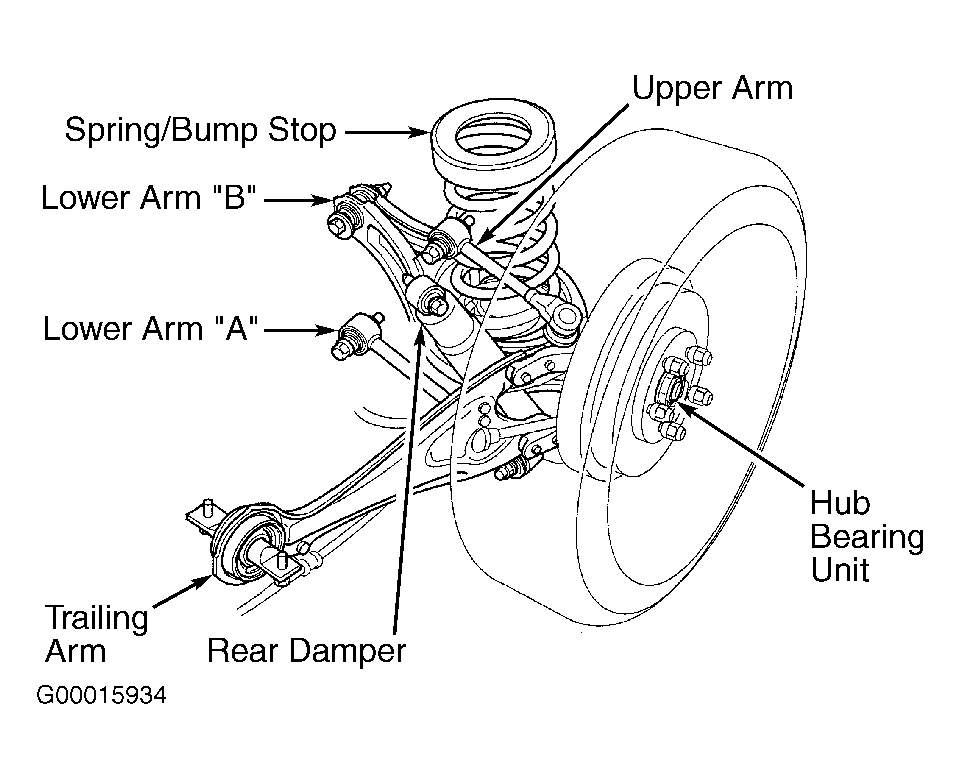

Fig 1: Identifying Rear Suspension Components (Accord Shown; Civic, CR-V & Prelude Are Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Rear Suspension Components (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Rear Suspension Components (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
