Lower Arm Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 Honda Insight, 2005 Honda Insight, 2004 Honda Insight, 2003 Honda Insight, and 2002 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To avoid damage, do not strike aluminum parts with a metal hammer. If necessary, tap gently with a plastic-tipped hammer.
NOTE: Bolts and nuts with the * mark are special corrosion-resistant Dacro fasteners. Use the same type if replacement is necessary.
  1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see SAFETY STANDS ).
  2. Remove the front wheel.
  3. Remove the spindle nut (see step  5 ).
  4. Turn the front of the knuckle outward. Tap the driveshaft inward with a plastic hammer to allow space to install the special tool on the lower arm ball joint (see step  9 ).
  5. Remove the lower arm ball joint from the knuckle (see step  10 ).
  6. Remove the front lower arm cover (A).

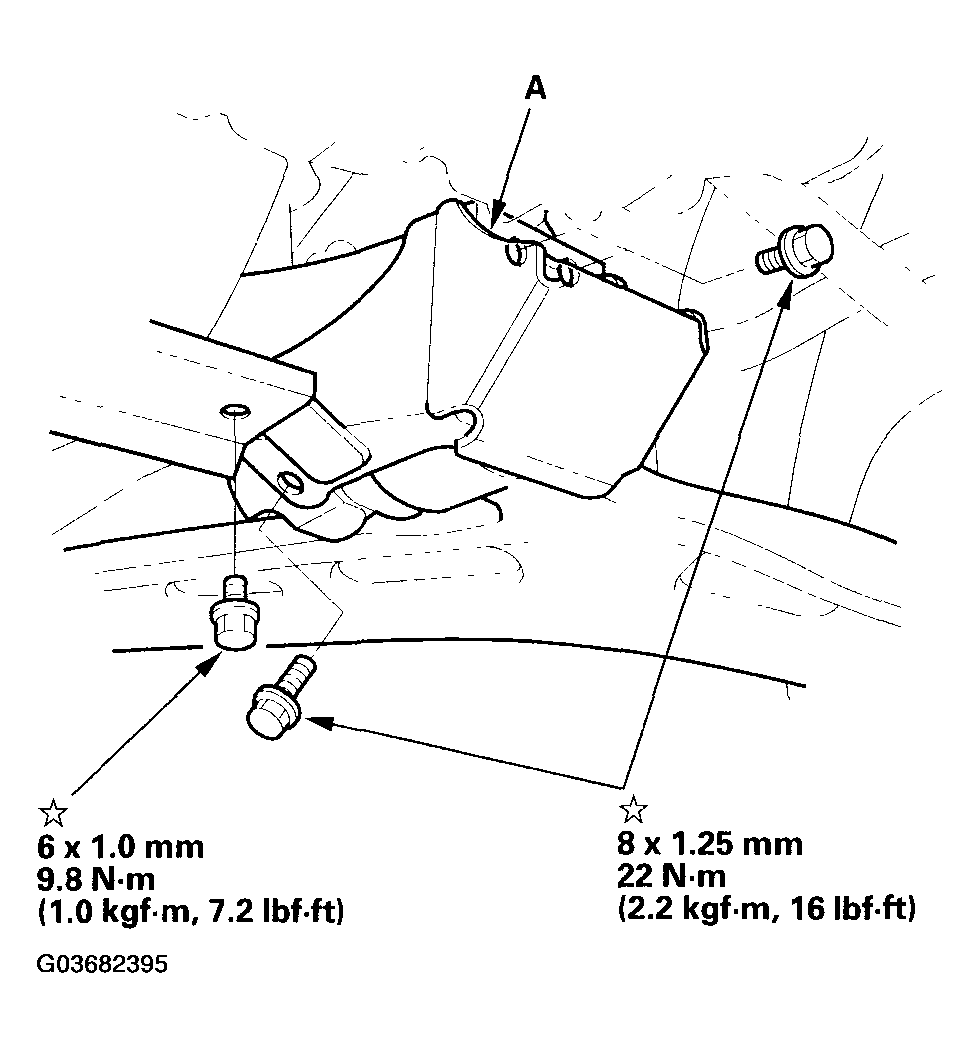

    Fig 1: Removing Front Lower Arm Cover And Torque Specifications
    G03682395Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the flange bolts (A) and nut (B), and remove the beam under-cover (C) and the lower arm (D).
    NOTE: The lengths of the bolts ( 1 is 12 x 93.5 mm, 2 is 12 x 68.5 mm, 3 is 12 x 53.5 mm).

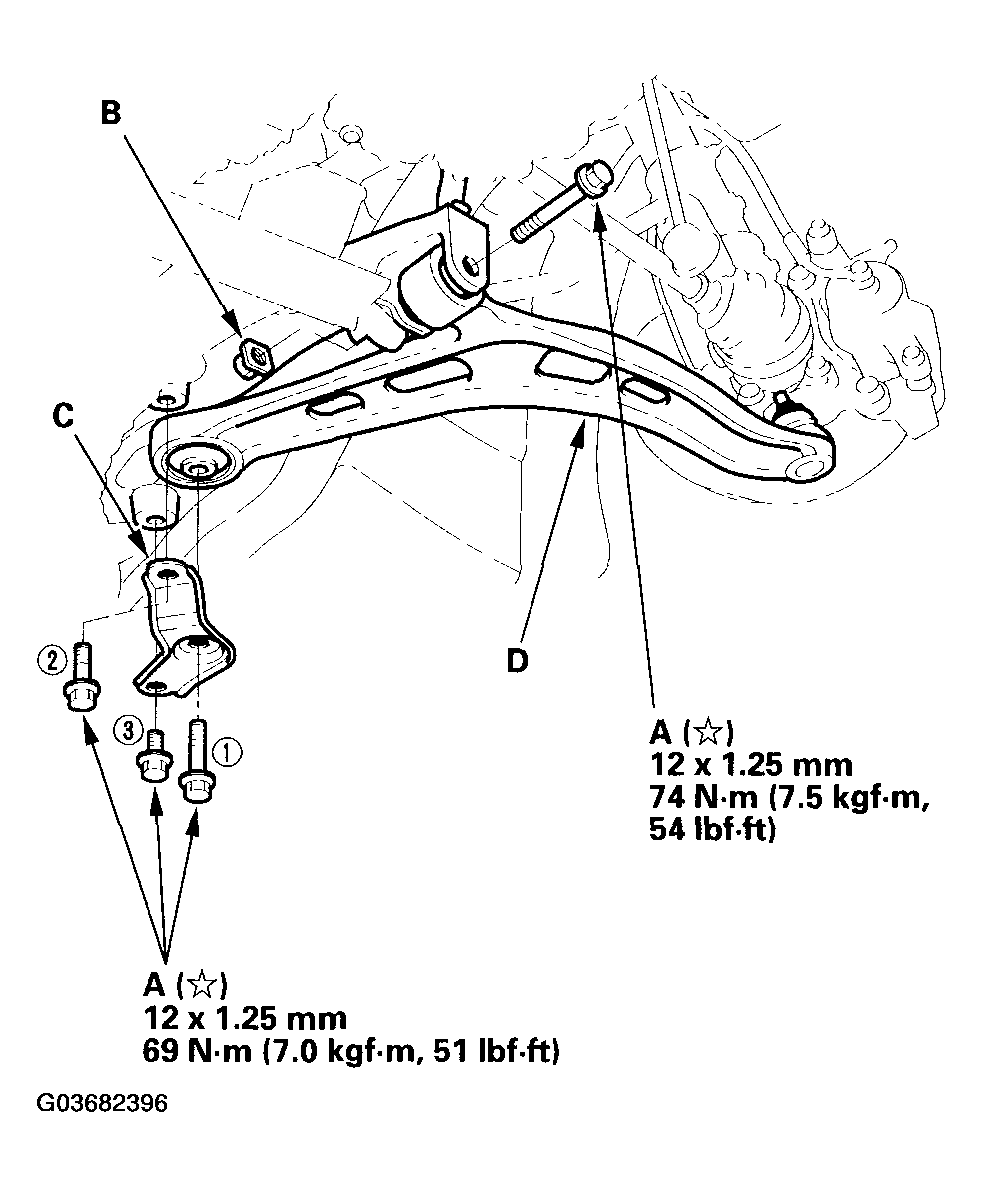

    Fig 2: Removing Flange Bolts And Nut With Torque Specifications
    G03682396Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the lower arm in the reverse order of removal, and note these items:
    • Be careful not to damage the ball joint boot when connecting the lower arm to the knuckle.
    • Tighten all mounting hardware to the specified torque values.
    • First install all the components and lightly tighten the bolts and nuts, then raise the suspension to load the weight before fully tightening to the specified torque value.
    • Torque the castle nut to the lower torque value, then tighten it only far enough to align the slot with the ball joint pin hole. Do not align the castle nut by loosening it.
    • Install a new cotter pin on the castle nut after torquing.
    • Before installing the wheel, clean the mating surface of the brake disc and the inside of the wheel.
    • Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
