Vacuum Hose Routing
>>
2000-2005 M/T models
2000-2005 M/T models

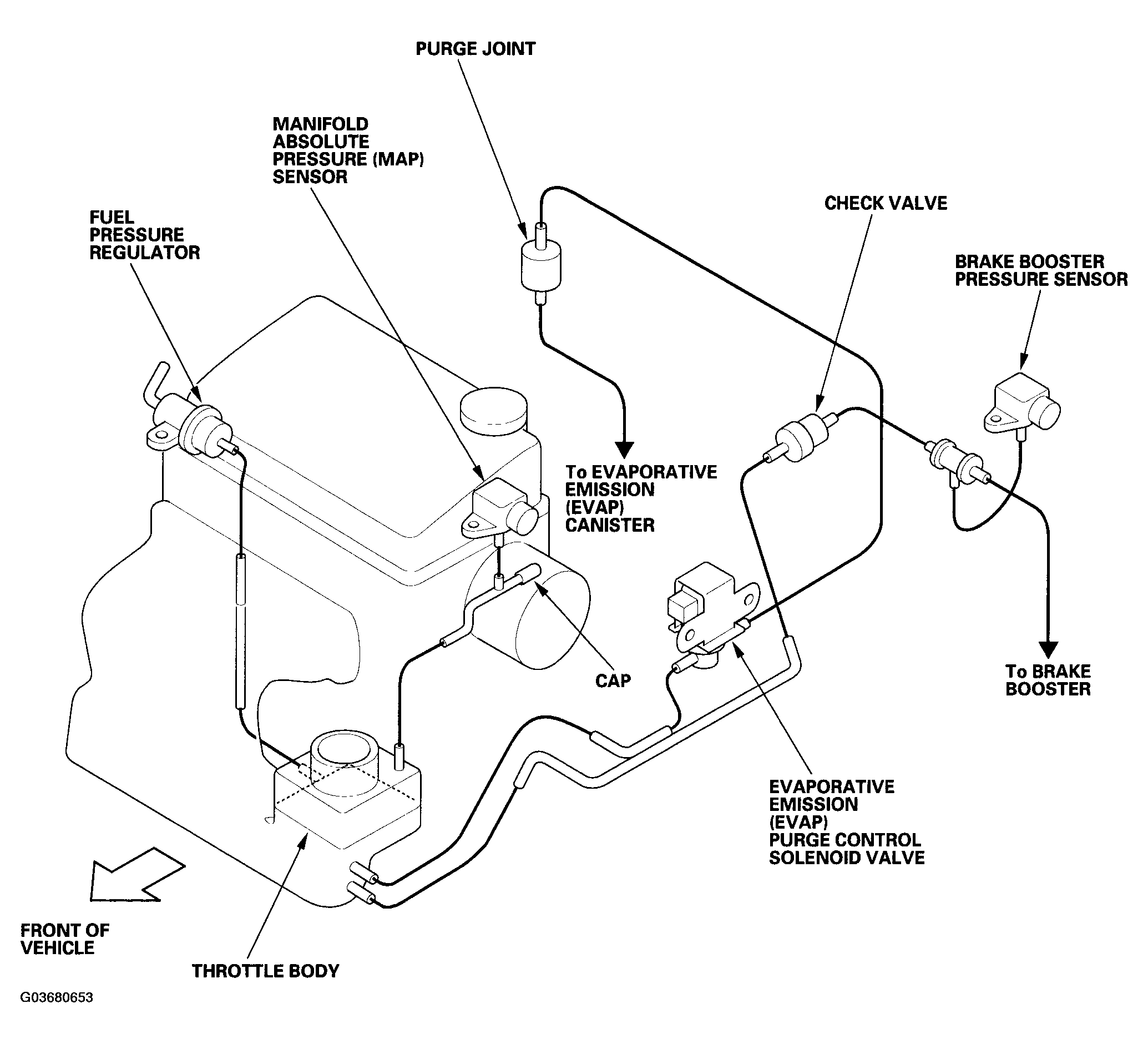

Fig 1: Identifying Vacuum Hose Routing (2000-2005 M/T Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
