Intake Manifold Removal and Installation
NOTE:
Use new O-rings and gaskets when reassembling.

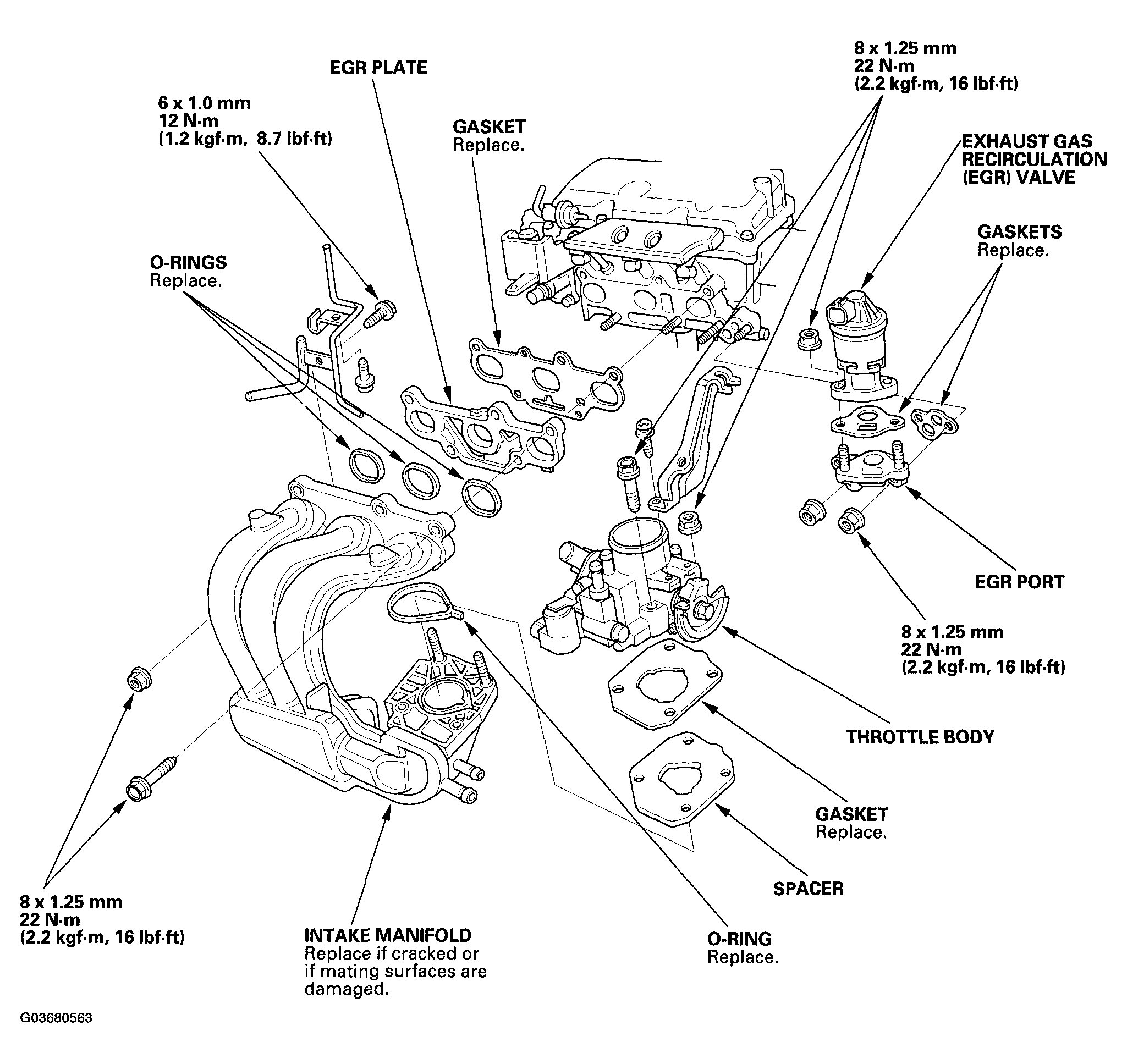

Fig 1: Exploded View Of Intake Manifold
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
