Fan Motor Test

  1. Disconnect the 2P connector from the radiator fan motor.

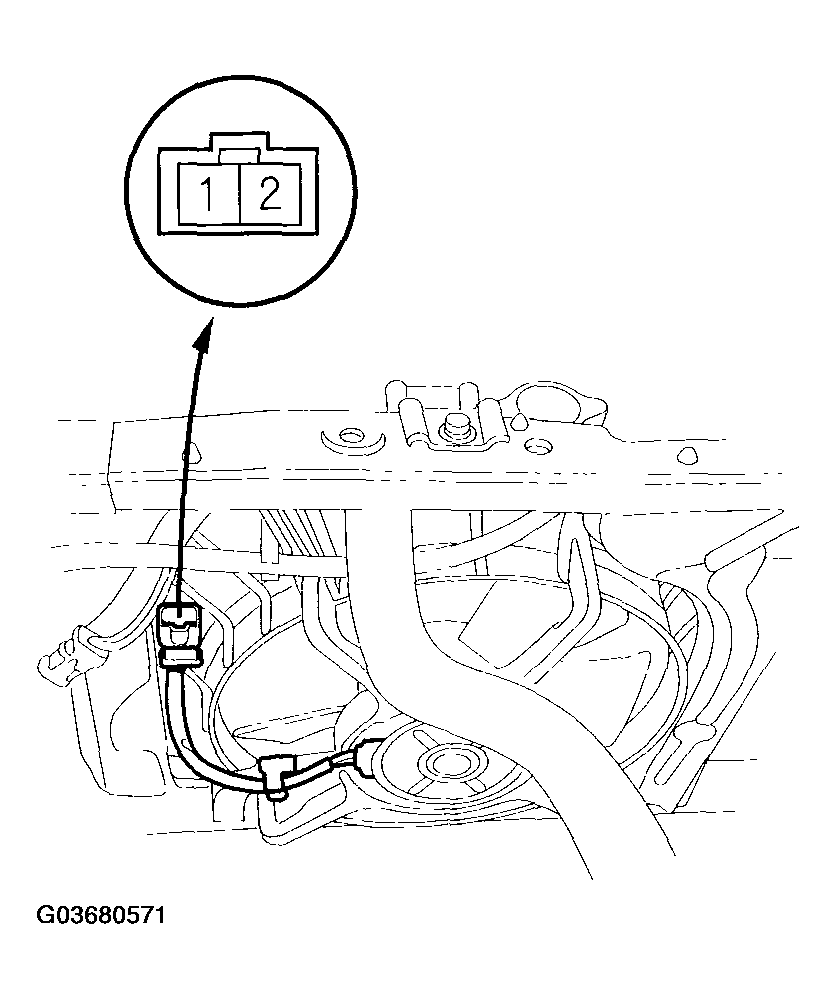

    Fig 1: Disconnecting 2P Connector From Radiator Fan Motor
    G03680571Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test the motor by connecting battery power to the No. 2 terminal and ground to the No. 1 terminal.
  3. If the motor fails to run or does not run smoothly, replace it (see RADIATOR AND FAN REPLACEMENT ).
