ECT Sensor Replacement

  1. Disconnect the engine coolant temperature (ECT) sensor connector, then remove the ECT sensor (A).

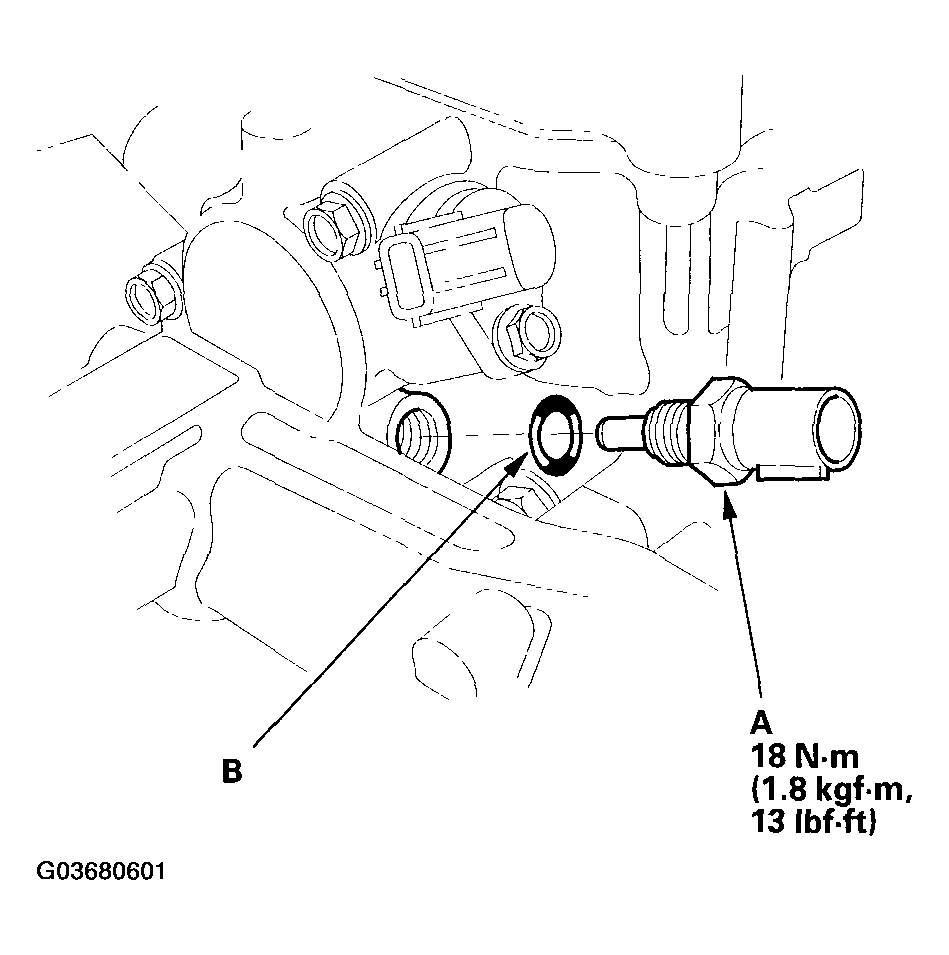

    Fig 1: Disconnecting Engine Coolant Temperature Sensor Connector, And Removing ECT Sensor With Specified Torques
    G03680601Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new ECT sensor in the reverse order of removal with a new O-ring (B).
