Cooling System
>>
Component Location Index
Component Location Index

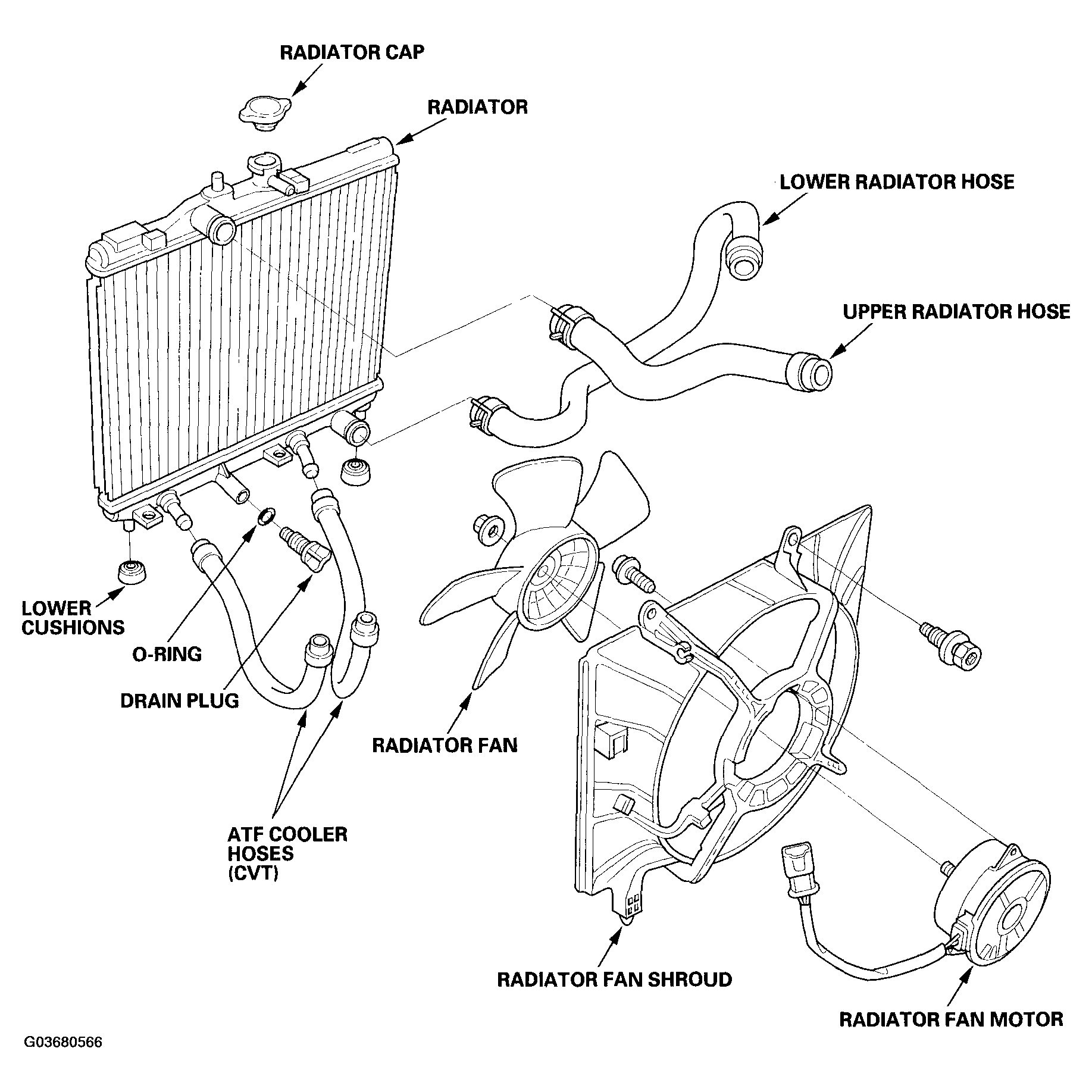

Fig 1: Identifying Components Location (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

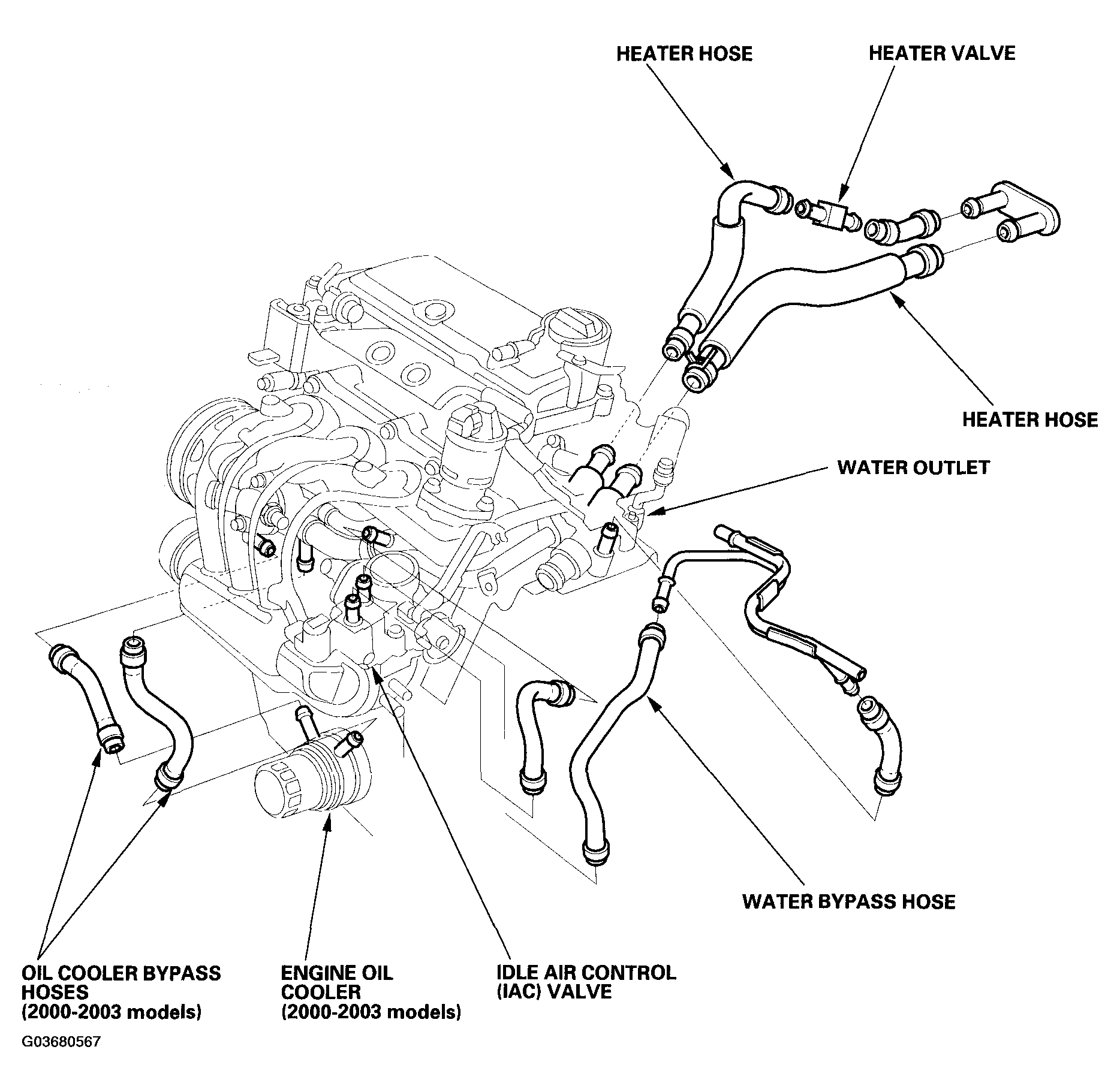

Fig 2: Identifying Components Location (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

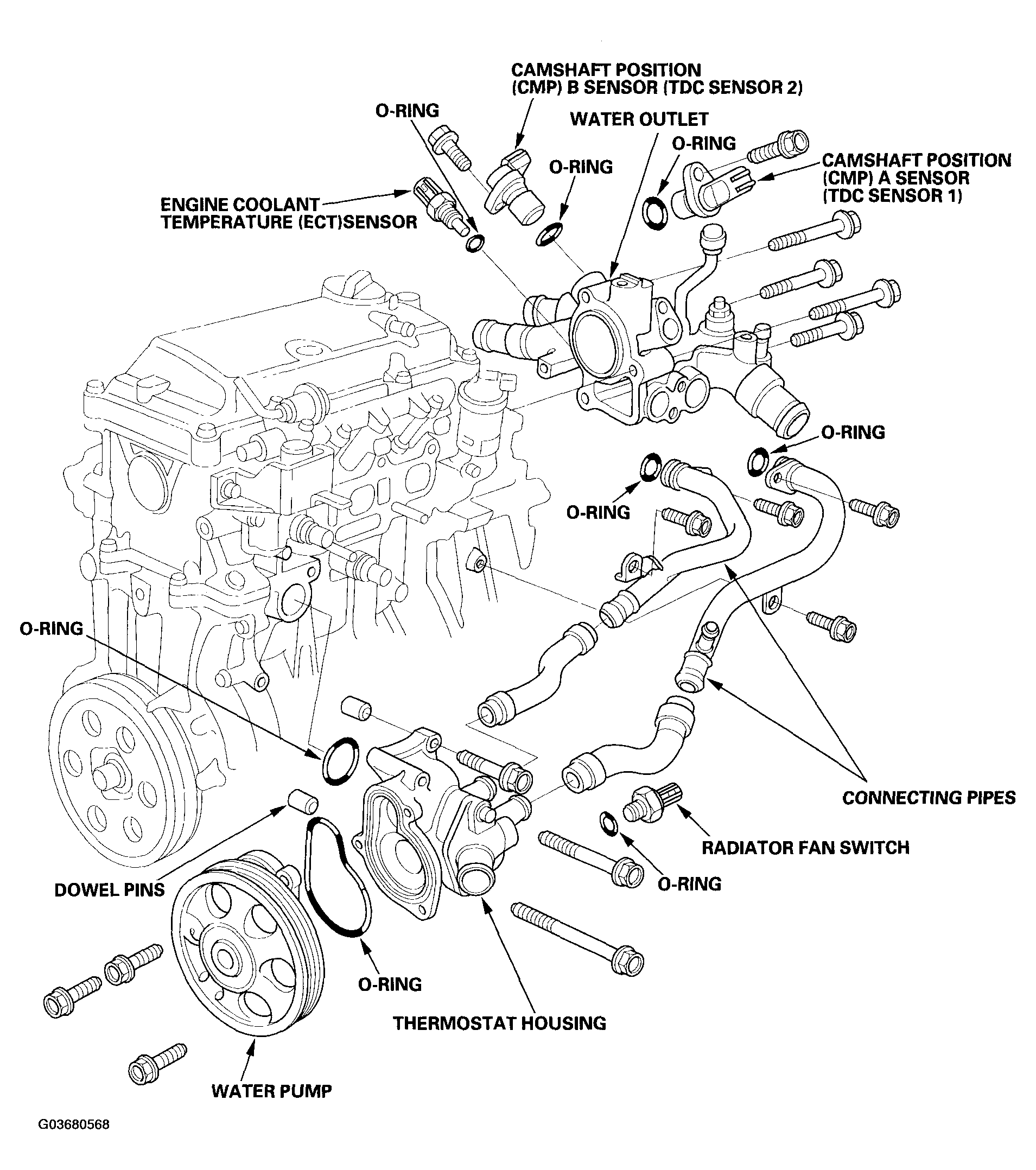

Fig 3: Identifying Components Location (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
