Planetary Gear Inspection

  1. 13. Check the planetary gears (A) and ring gear (B) for wear or damage. If they are worn or damaged, replace the planetary gears and ring gear.

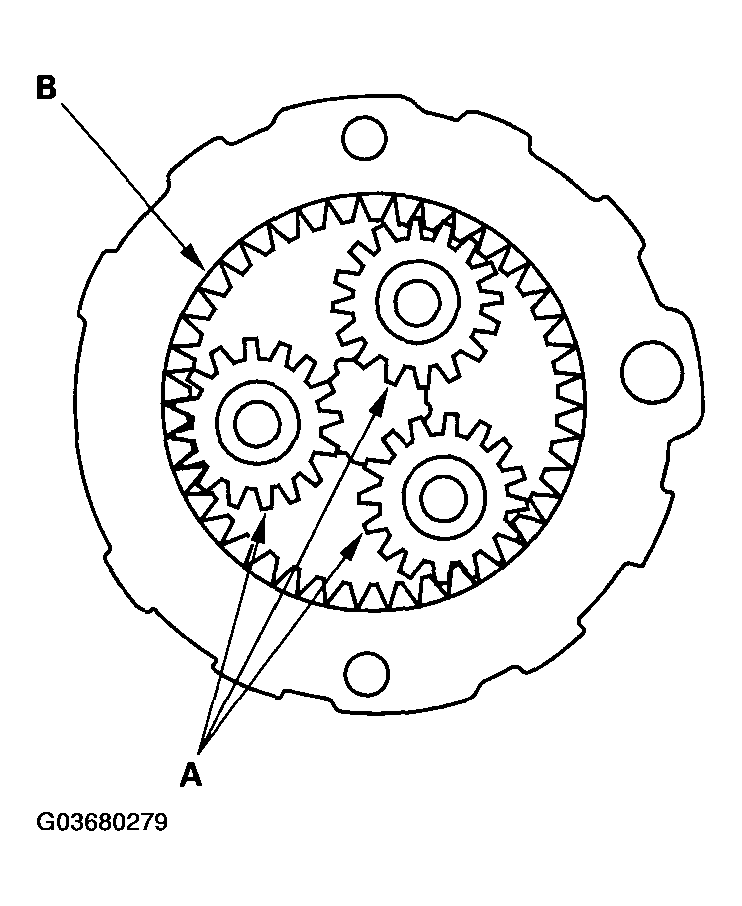

    Fig 1: Checking Planetary Gears And Ring Gear
    G03680279Courtesy of AMERICAN HONDA MOTOR CO., INC.
