Center Lower Cover Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Remove the center lower cover as shown.
Install the center lower cover in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
- Push the clips into place securely.

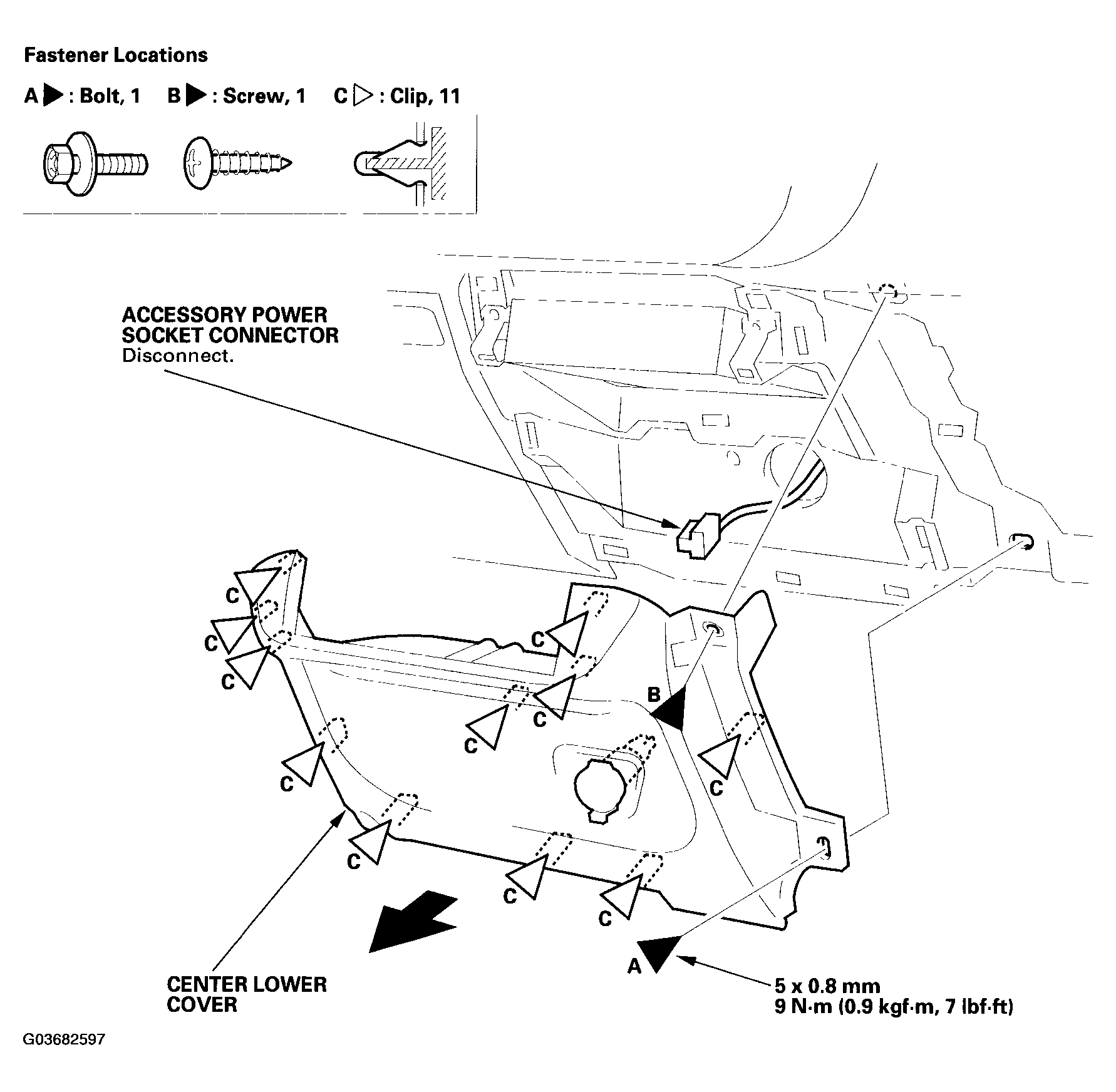

Fig 1: Removing Center Lower Cover And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
