Wiper Motor, Rear Window Connector End View

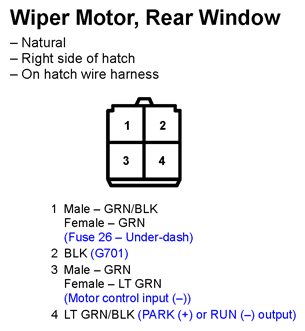

Fig 1: Wiper Motor, Rear Window Connector End View

G11250525

Courtesy of AMERICAN HONDA MOTOR CO., INC.
