C109 (CVT) Connector End View
C109 (CVT) Connector End View

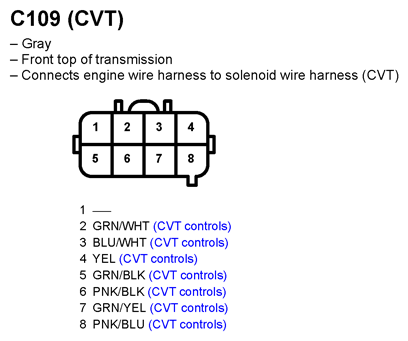

Fig 1: C109 (CVT) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
