Exploded View

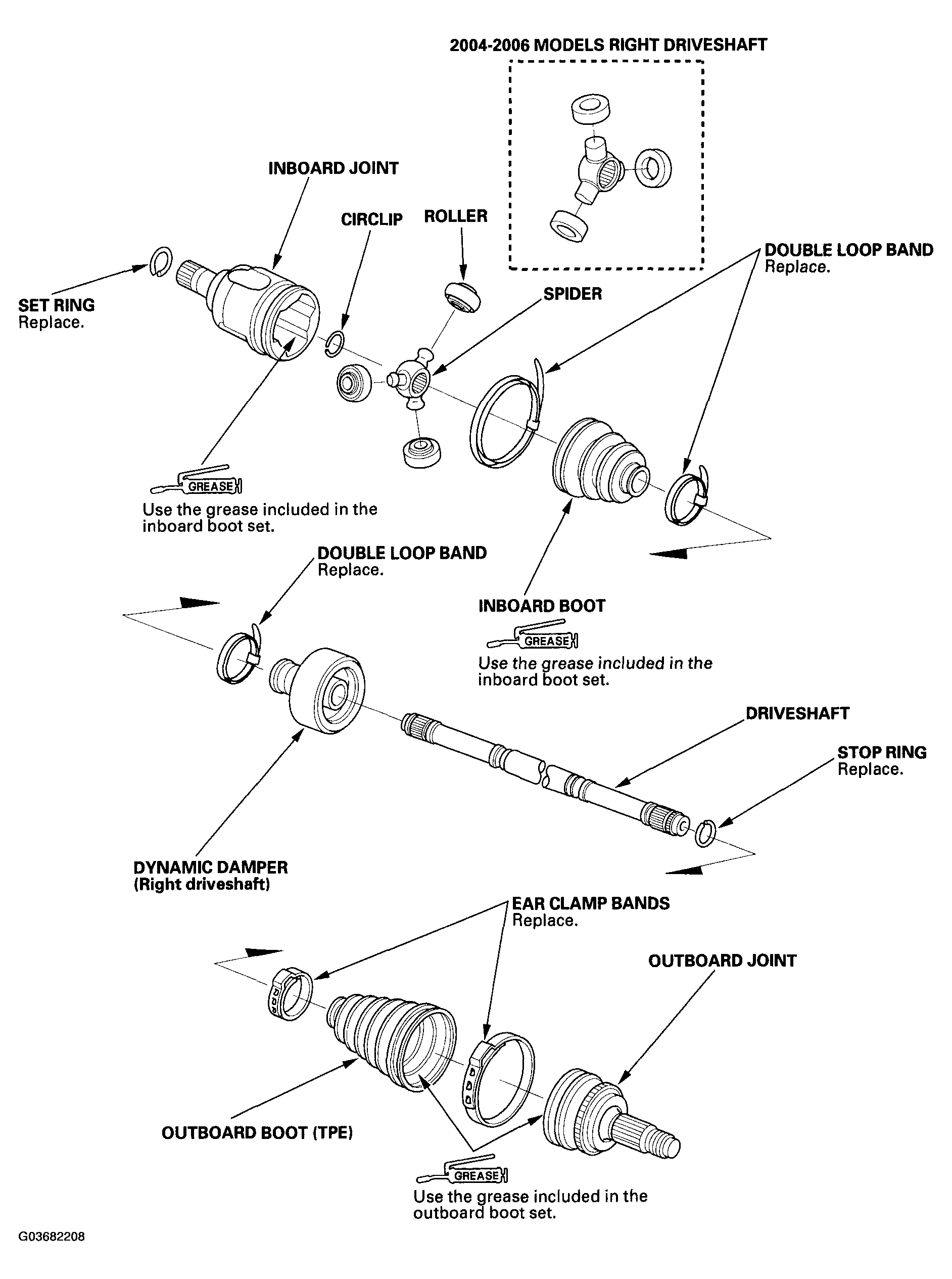

Fig 1: Exploded View Of Driveshaft

G03682208

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot band tool, KD-3191 or equivalent, commercially available
Boot band pincers, Kent-Moore J-35910 or equivalent, commercially available

NOTE: Refer to the EXPLODED VIEW as needed during this procedure.
