Power Mirror Actuator Replacement

Remove the power mirror (see POWER MIRROR REPLACEMENT ), and disconnect the connector.
Cut the wire harness with wire cutters.

Fig 1: Cutting Wire Harness Using Wire Cutters
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Record the terminal locations and wire colors.

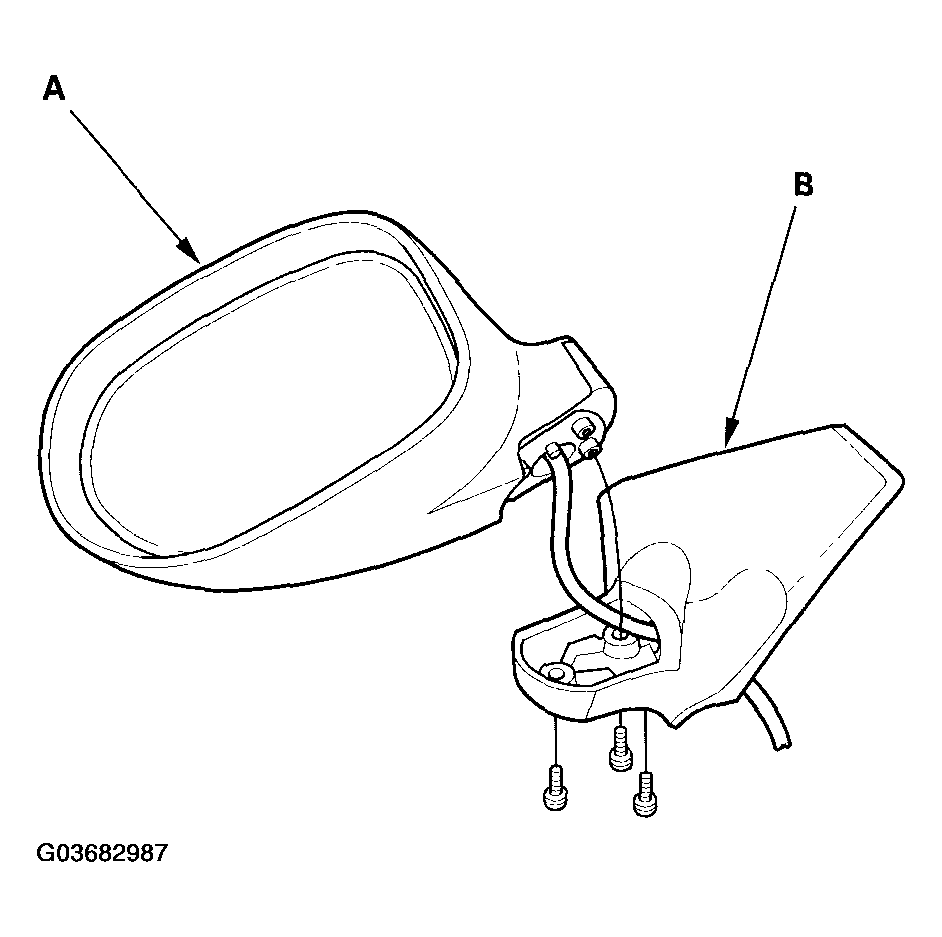

Remove the three screws, and separate the mirror housing (A) from the bracket (B).

Fig 2: Separating Mirror Housing From Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

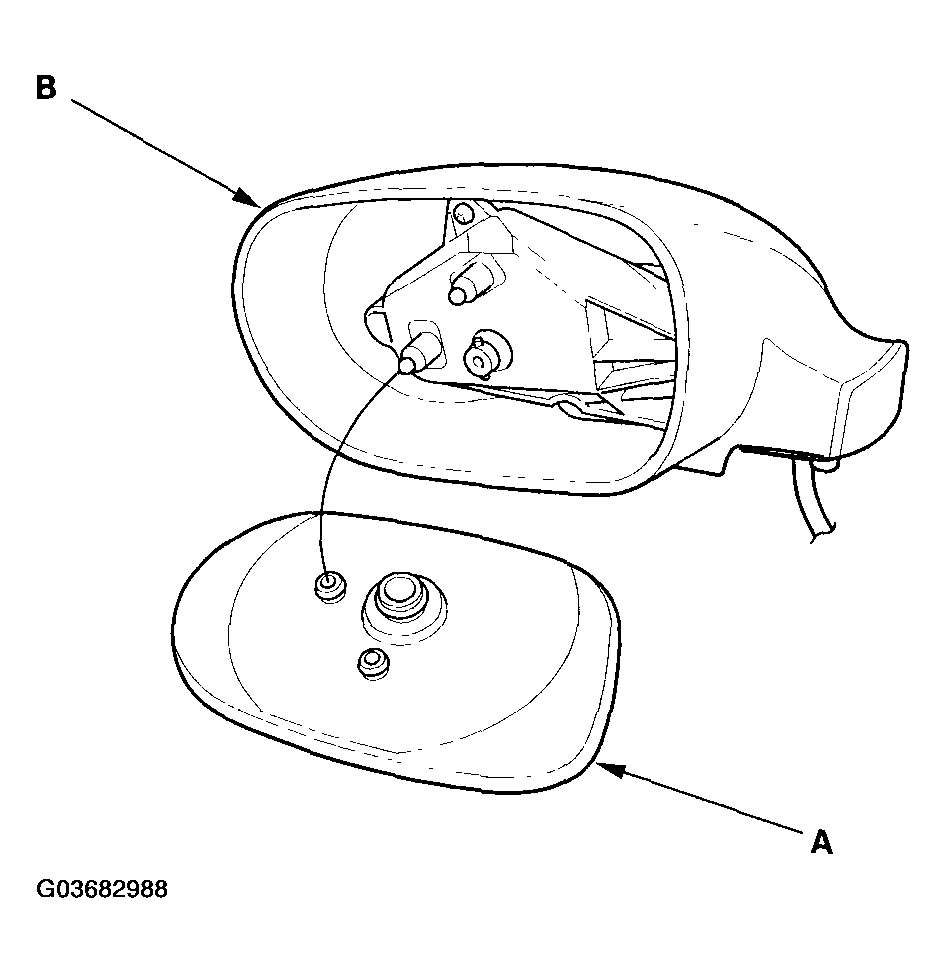

Carefully remove the mirror holder (A) from the mirror housing (B). Gently pull it out by hand.

Fig 3: Removing Mirror Holder From Mirror Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

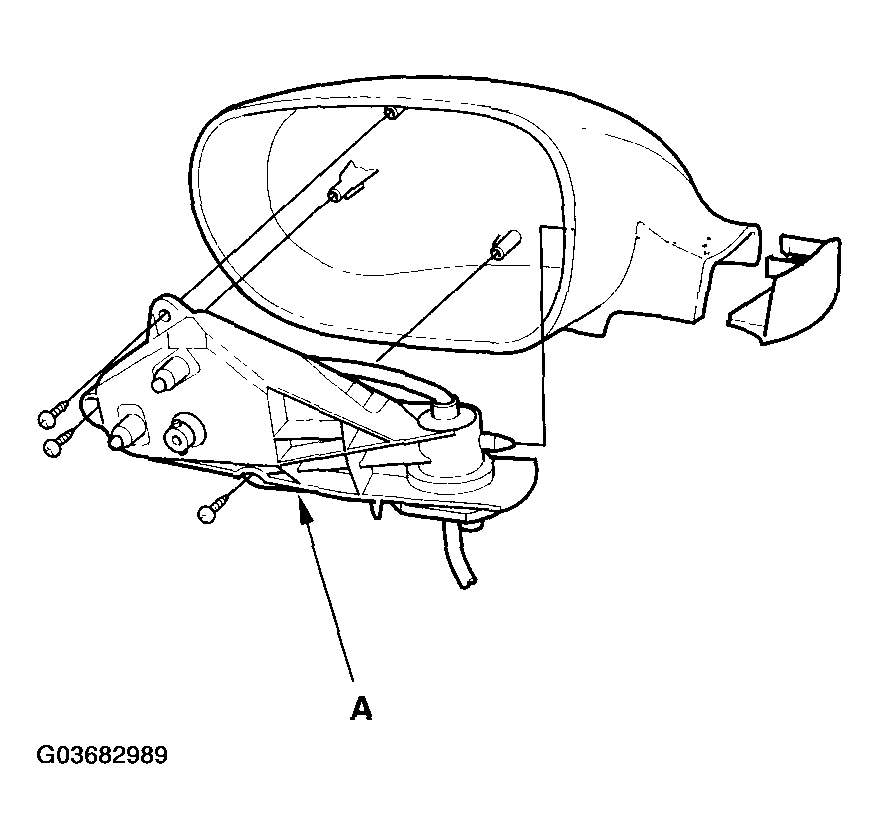

Remove the three screws and the actuator (A).

Fig 4: Removing Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

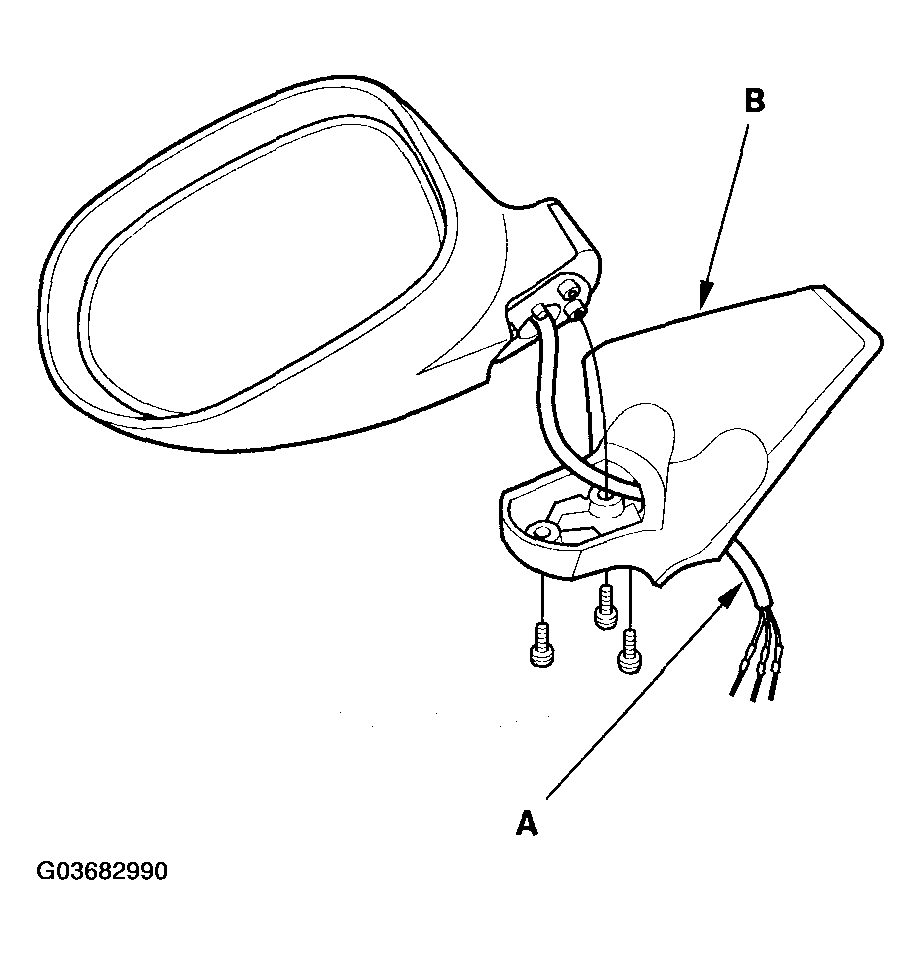

Route the wire harness (A) of the new actuator through the hole in the bracket (B).

Fig 5: Routing Wire Harness Of New Actuator Through Hole In Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse of removal. Replace the three screws with new ones.
Insert the new actuator terminals into the connector in the original arrangement as shown.

Fig 6: Identifying New Actuator Connector Terminals Original Arrangement
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Operate the power mirror to check that the actuator works smoothly.
