Middle Bulkhead Carpet Replacement

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to damage, wrinkle or twist the carpets.
Be careful not to damage the dashboard or other interior trim pieces.

Remove these items:
- B-pillar lower trim panel, both sides (see TRIM REMOVAL/INSTALLATION - DOOR AREAS )
- Rear console (see REAR CONSOLE REMOVAL/INSTALLATION )
- Cargo floor mat, as necessary
Remove the middle bulkhead carpet as shown.
Install the carpet in the reverse order of removal, and check for damaged or stress-whitened clips, and replace them with new ones.

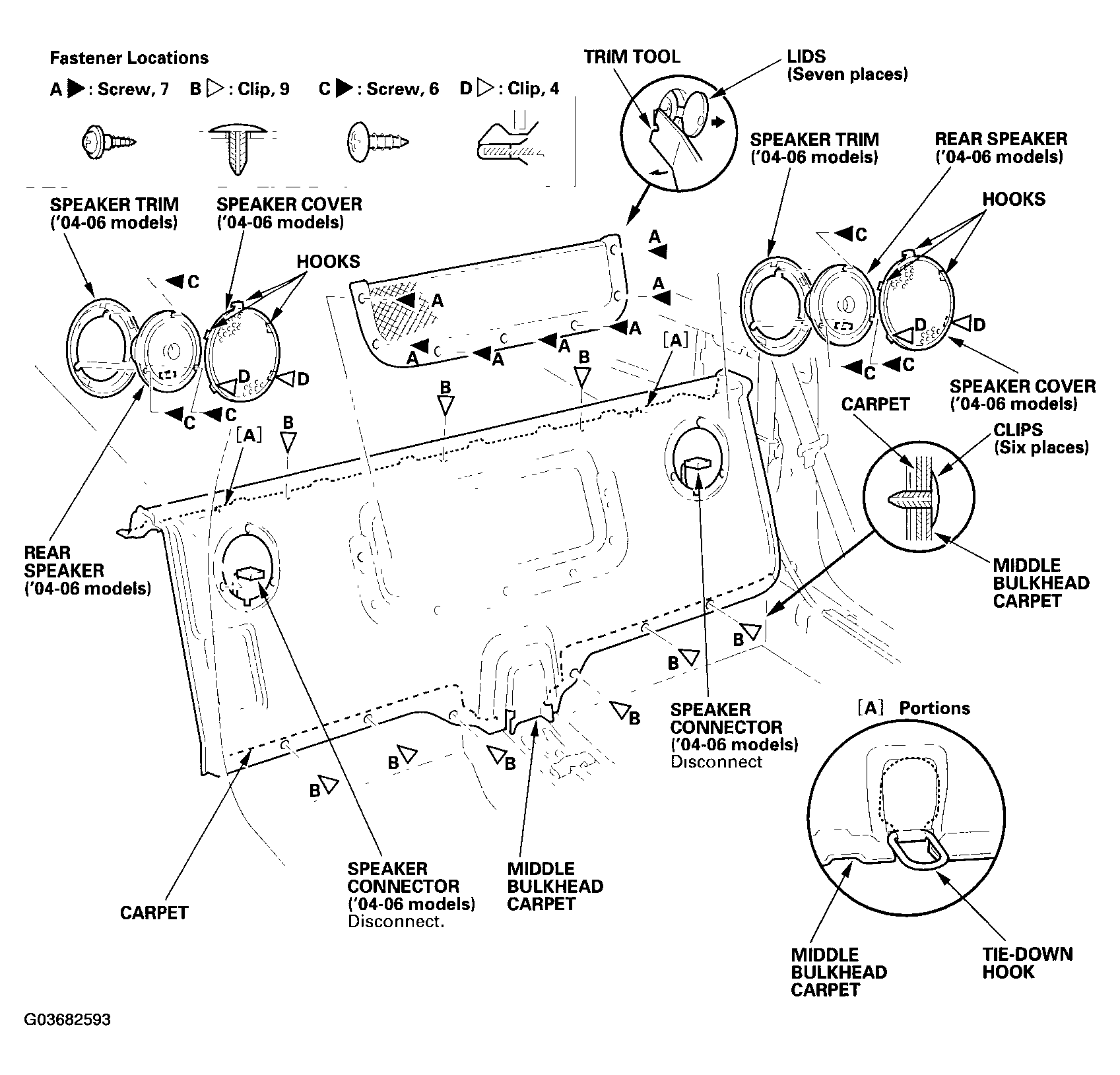

Fig 1: Removing Middle Bulkhead Carpet
Courtesy of AMERICAN HONDA MOTOR CO., INC.
