Component Location Index

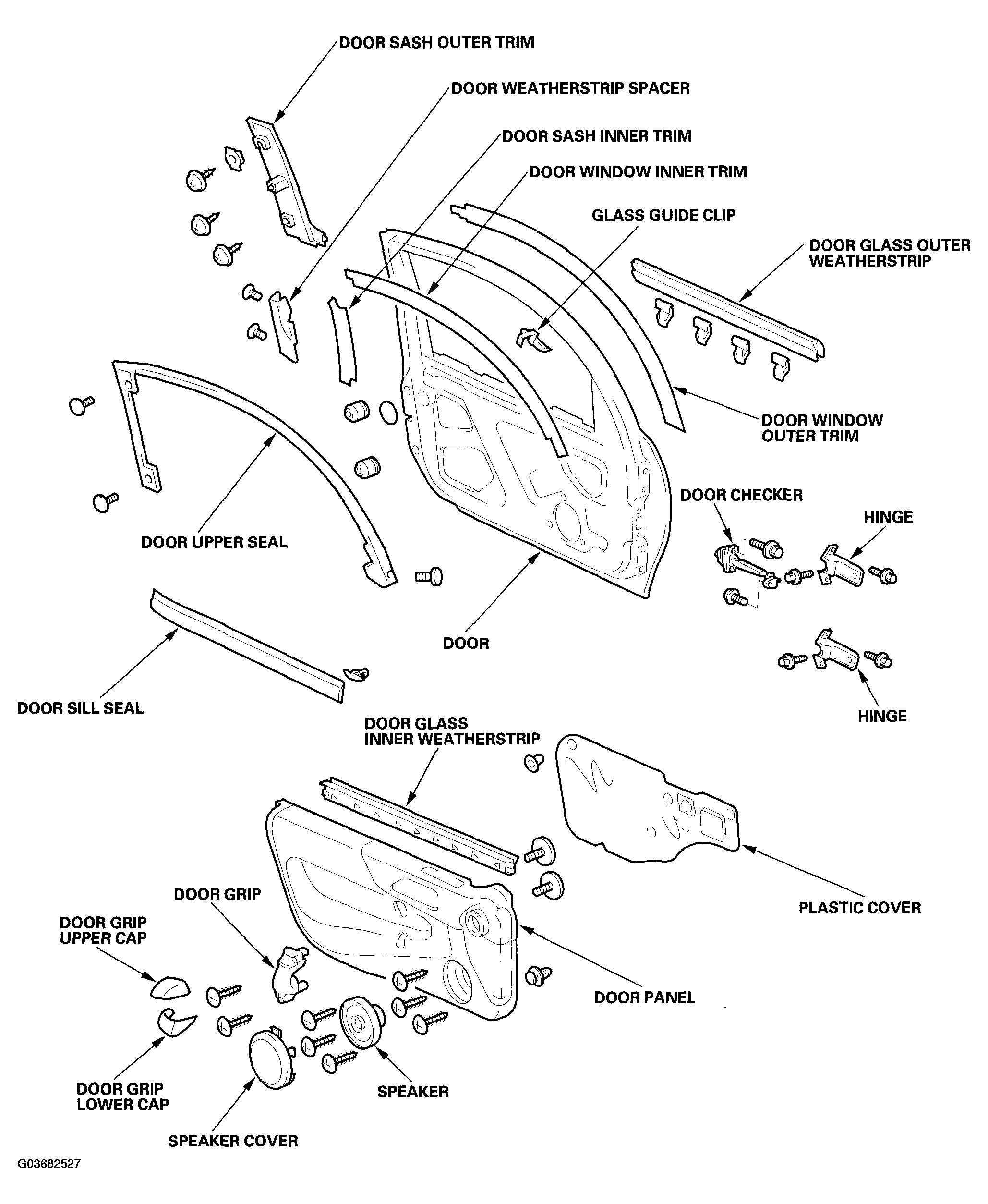

Fig 1: Identifying Doors Components Location (1 Of 2)
G03682527Courtesy of AMERICAN HONDA MOTOR CO., INC.

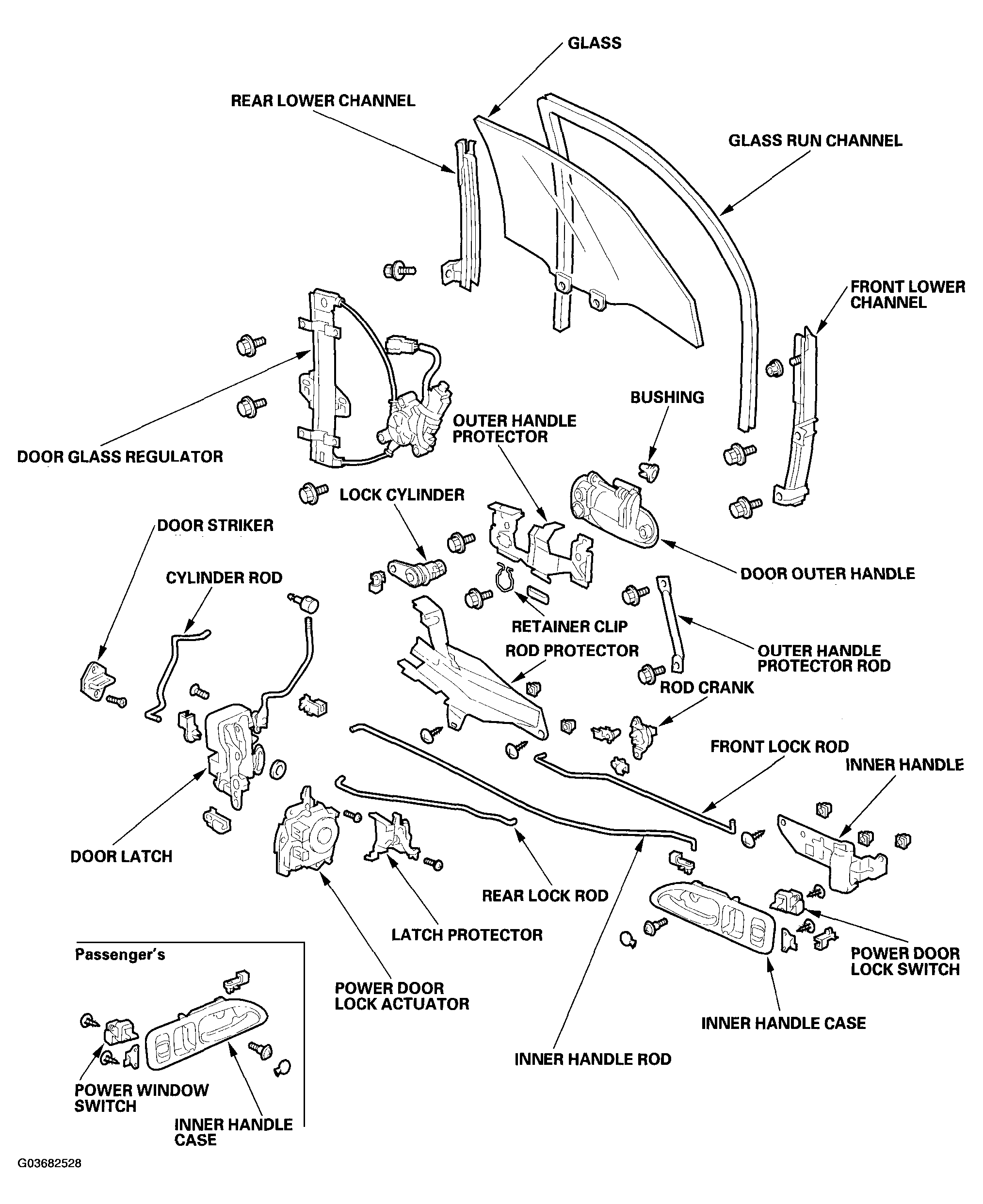

Fig 2: Identifying Doors Components Location (2 Of 2)
G03682528Courtesy of AMERICAN HONDA MOTOR CO., INC.
