Hatch Opener Switch Replacement

NOTE:
  • Take care not to scratch the hatch.
  • Put on gloves to protect your hands.
  1. Remove the hatch trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREA ).
  2. Remove the hatch opener switch as shown.
  3. Install the hatch opener switch in the reverse order of removal, and note these items:
    • Make sure the connector is plugged in properly.
    • Make sure the hatch opens properly.

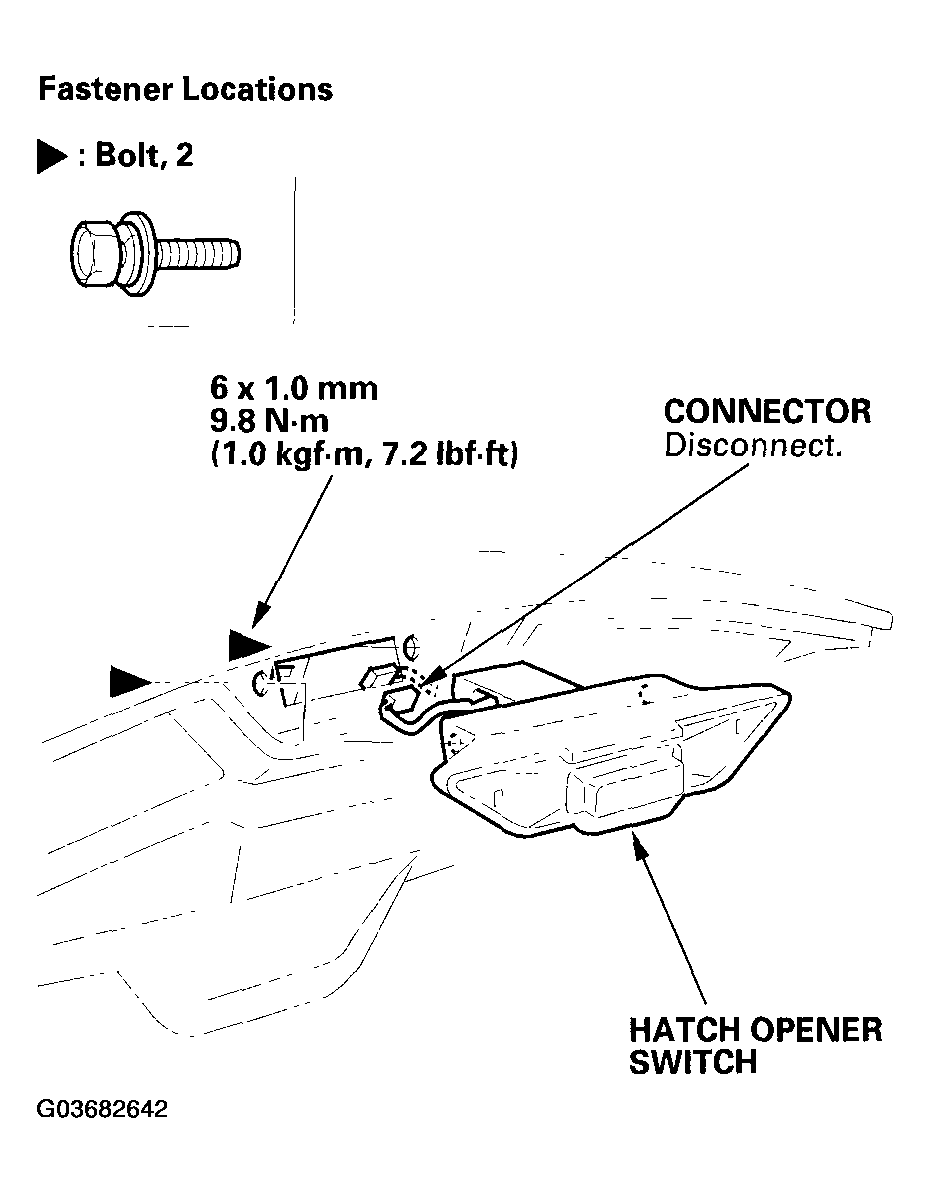

    Fig 1: Removing Hatch Trim Panel And Torque Specifications
    G03682642Courtesy of AMERICAN HONDA MOTOR CO., INC.
