Driver's Door Lock Actuator Test

  1. Remove the driver's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the actuator (B).

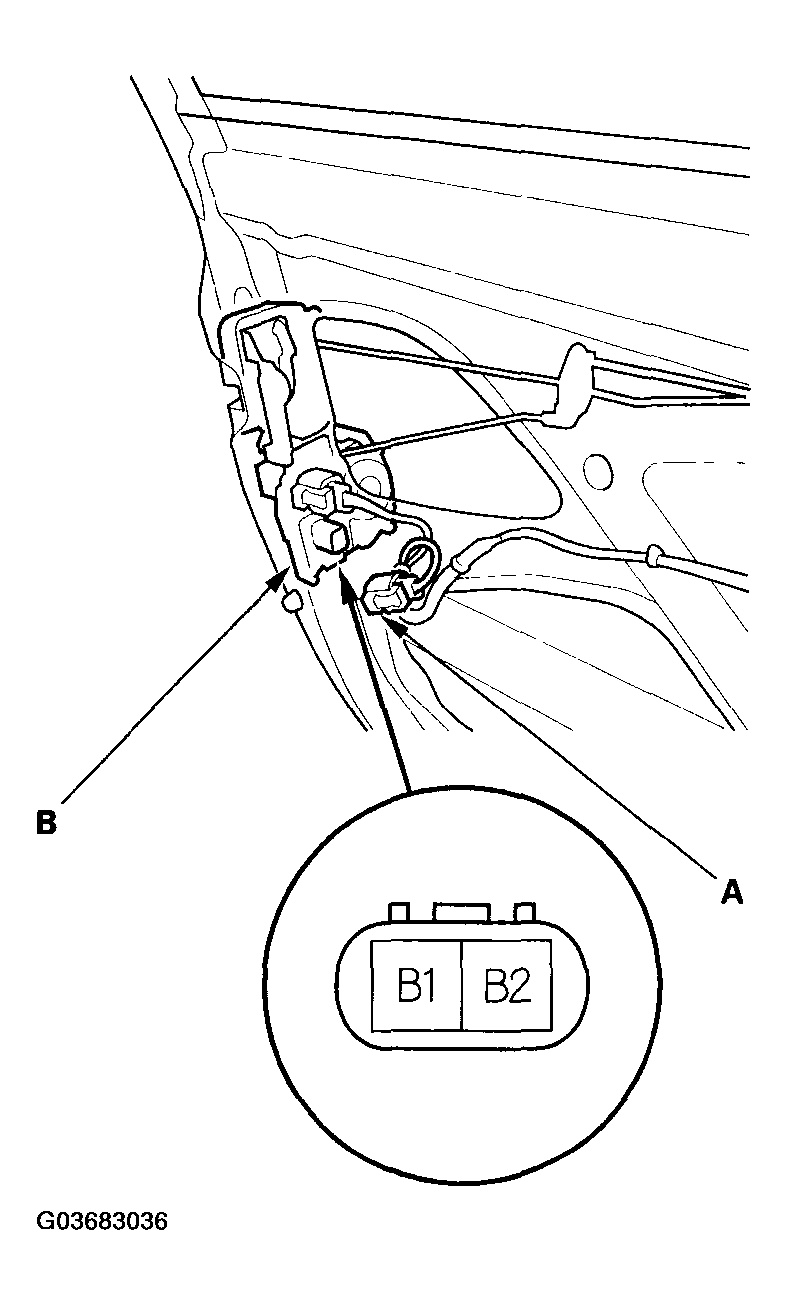

    Fig 1: Disconnecting 2P Connector From Actuator
    G03683036Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
    Fig 2: Power And Ground Connection Reference Table
    G03683037Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, replace it.
