Windshield Wiper Motor Replacement

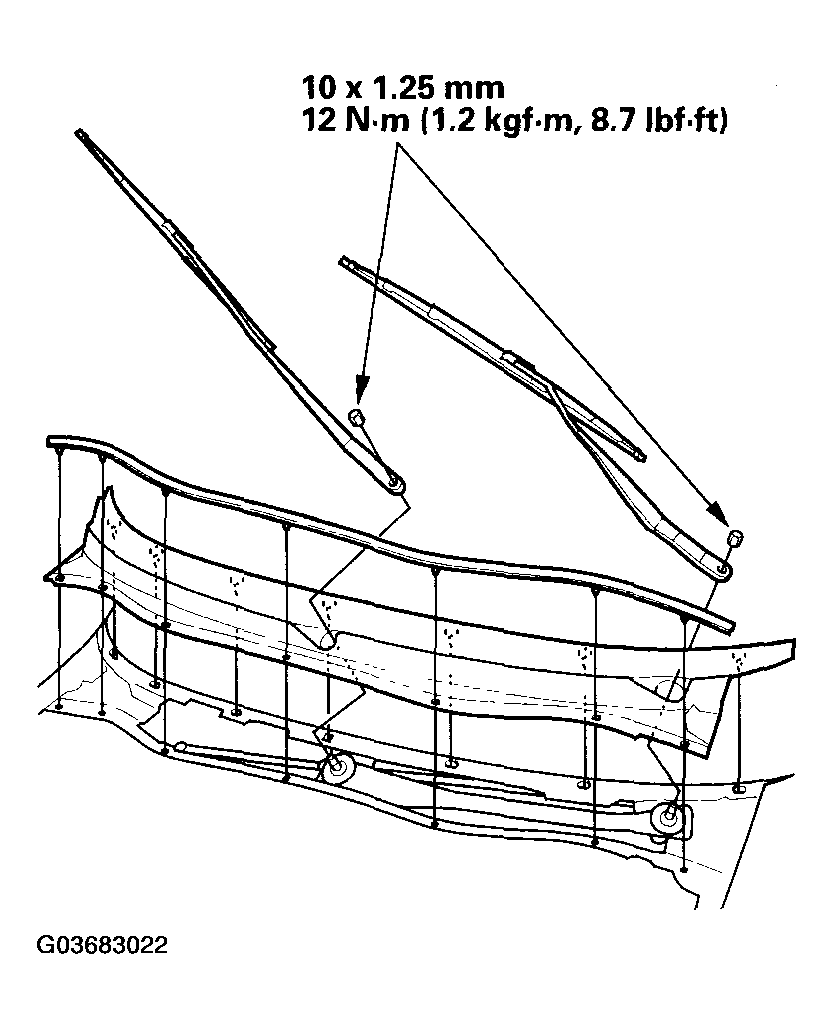

Open the hood. Remove the nuts and the windshield wiper arms.

Fig 1: Removing Nuts And Windshield Wiper Arms With Specified Torques
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hood seal and cowl cover.

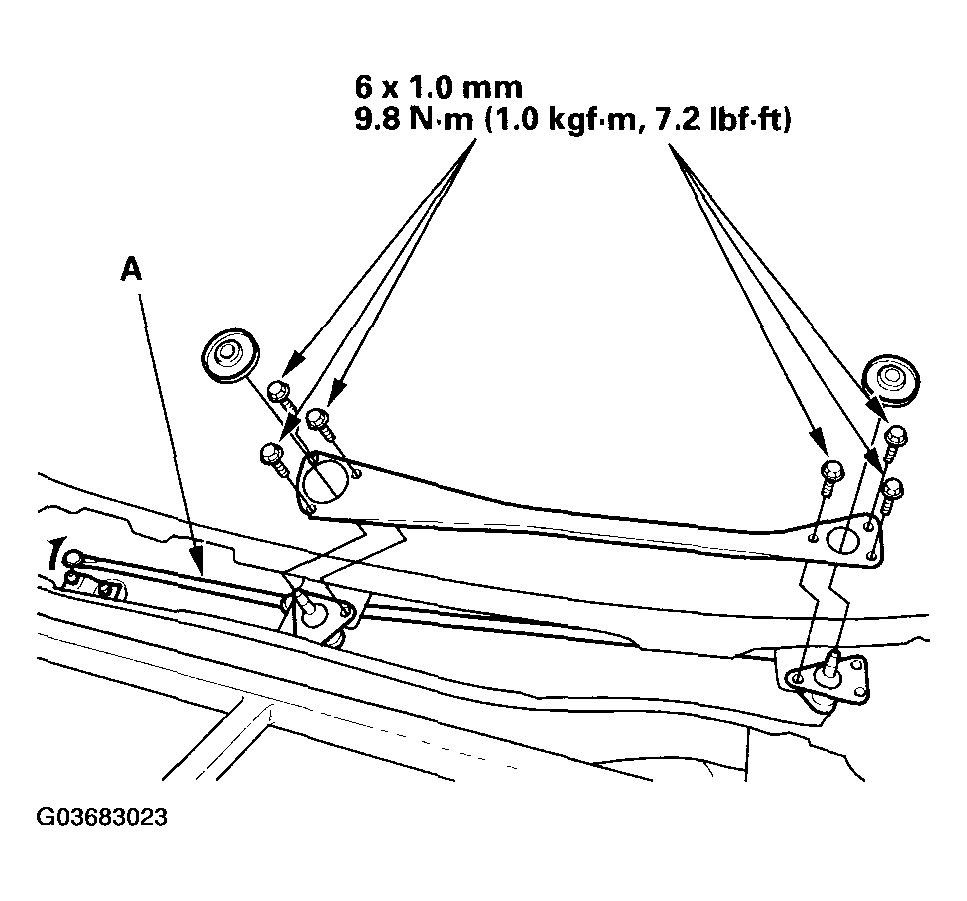

Remove the bolts and wiper linkage assembly (A).

Fig 2: Removing Bolts And Wiper Linkage Assembly With Specified Torques
Courtesy of AMERICAN HONDA MOTOR CO., INC.

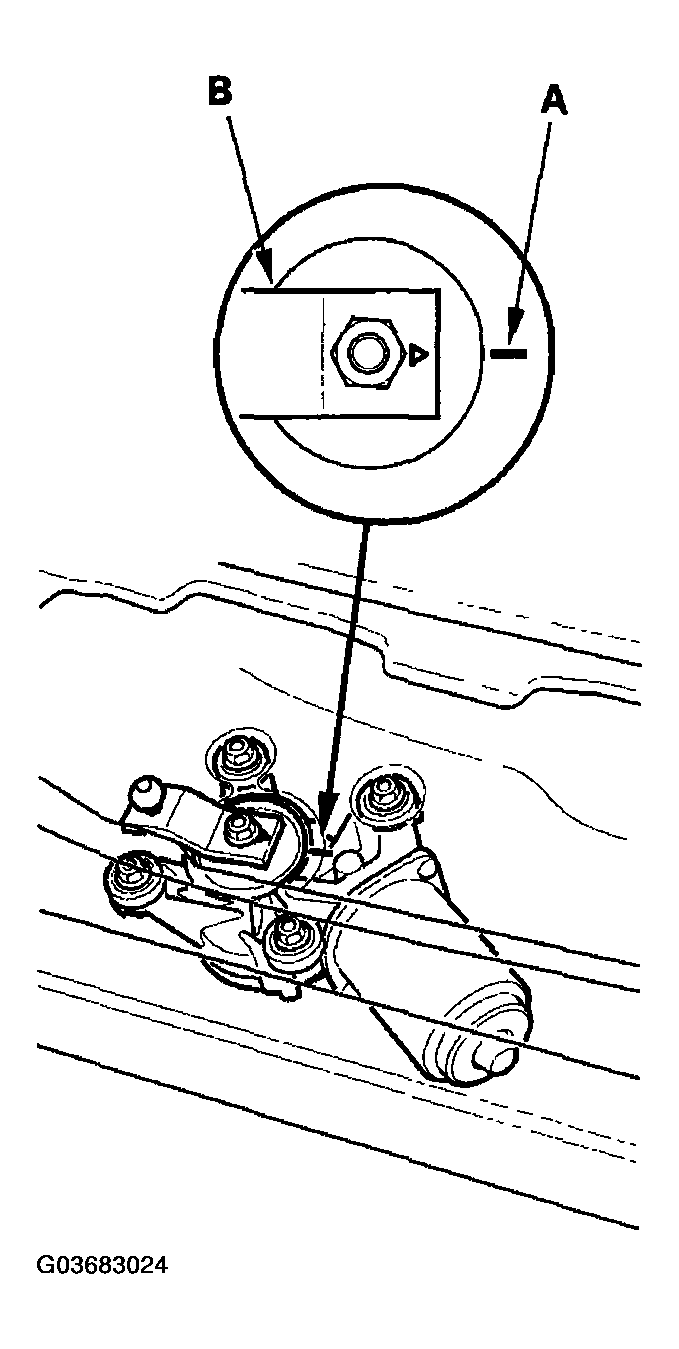

Scribe a line (A) across the link (B) and body to show the original adjustment.

Fig 3: Scribing Line Across Link And Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.

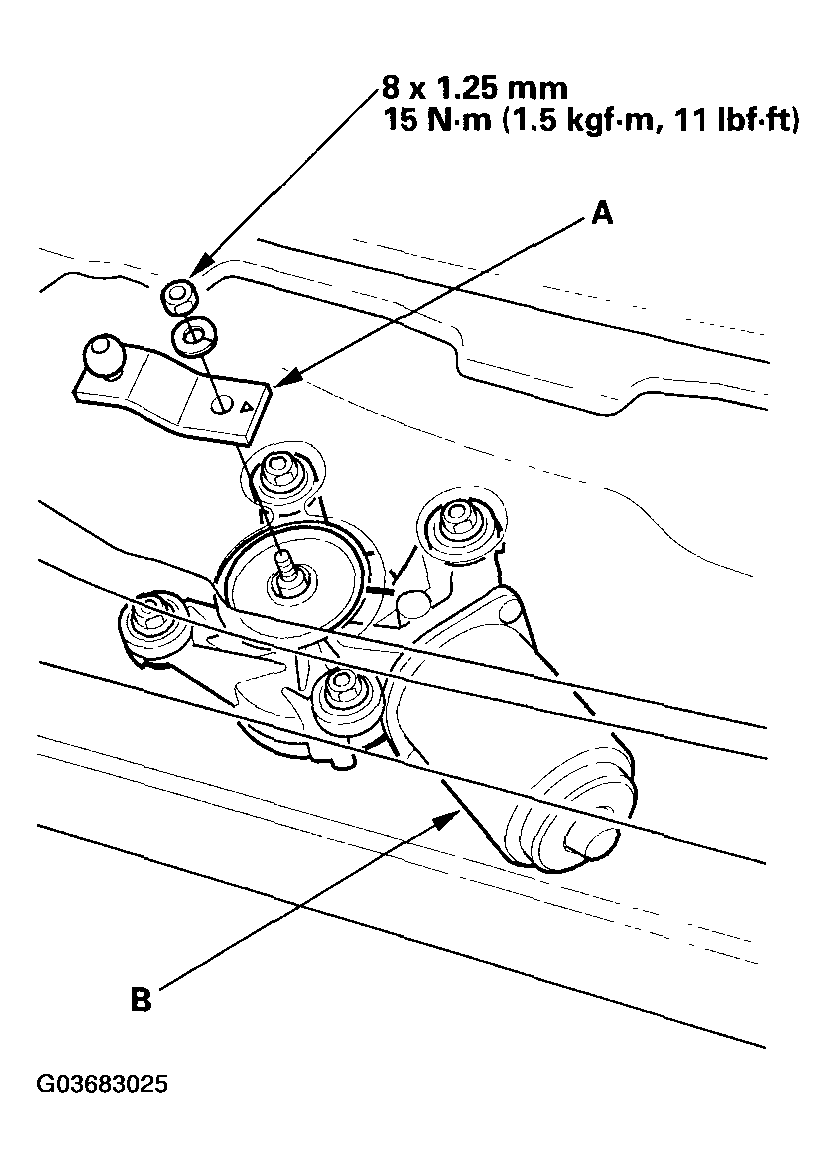

Remove the nut and link (A) from the wiper motor (B).

Fig 4: Removing Nut And Link From Wiper Motor With Specified Torques
Courtesy of AMERICAN HONDA MOTOR CO., INC.

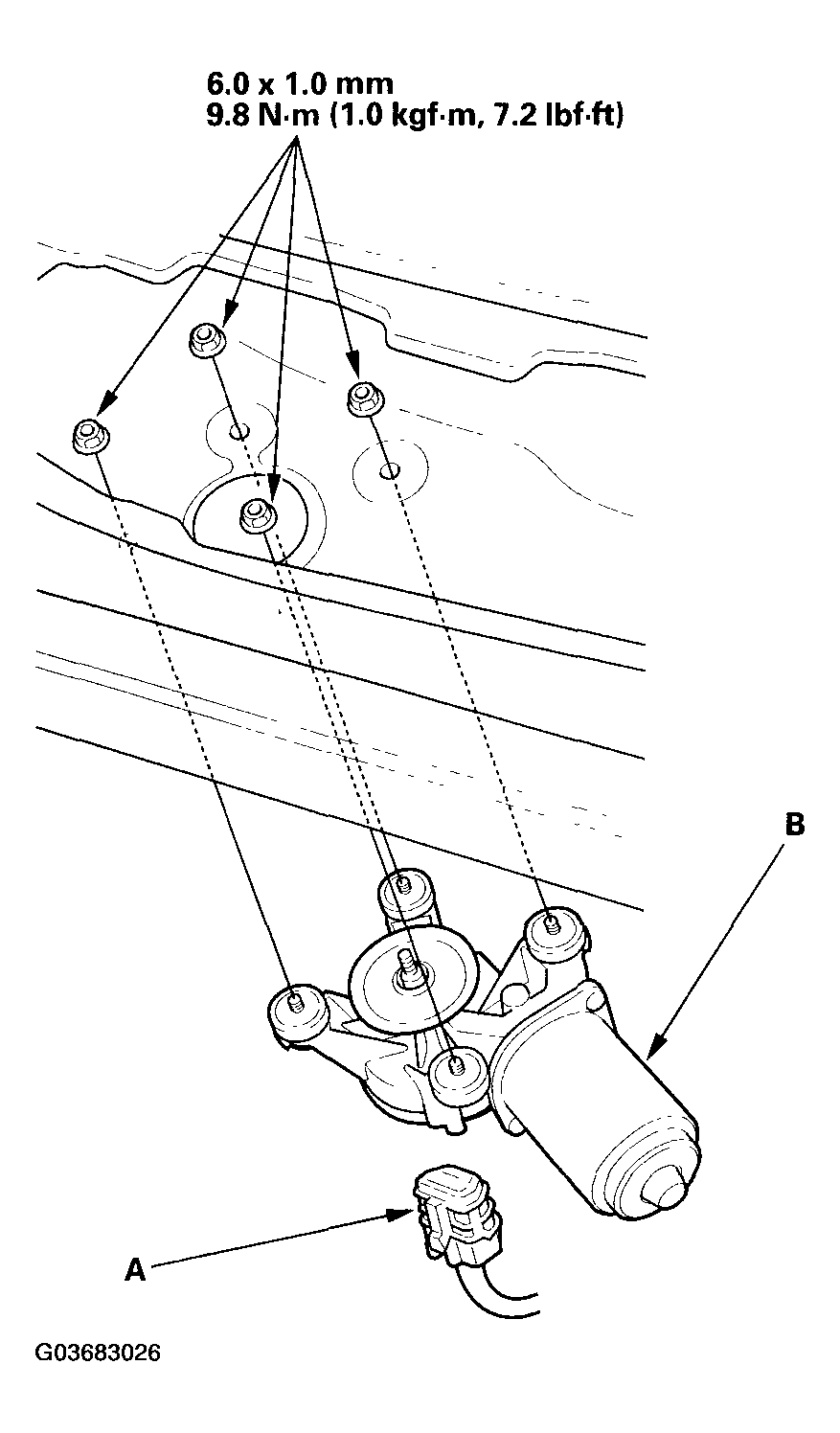

Disconnect the 5P connector (A), then remove the four mounting nuts and wiper motor (B).

Fig 5: Removing Four Mounting Nuts And Wiper Motor With Specified Torques
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply a multipurpose grease to the moving parts and install in the reverse order of removal.
