Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wipers/Washers
>>
Component Location Index
Component Location Index

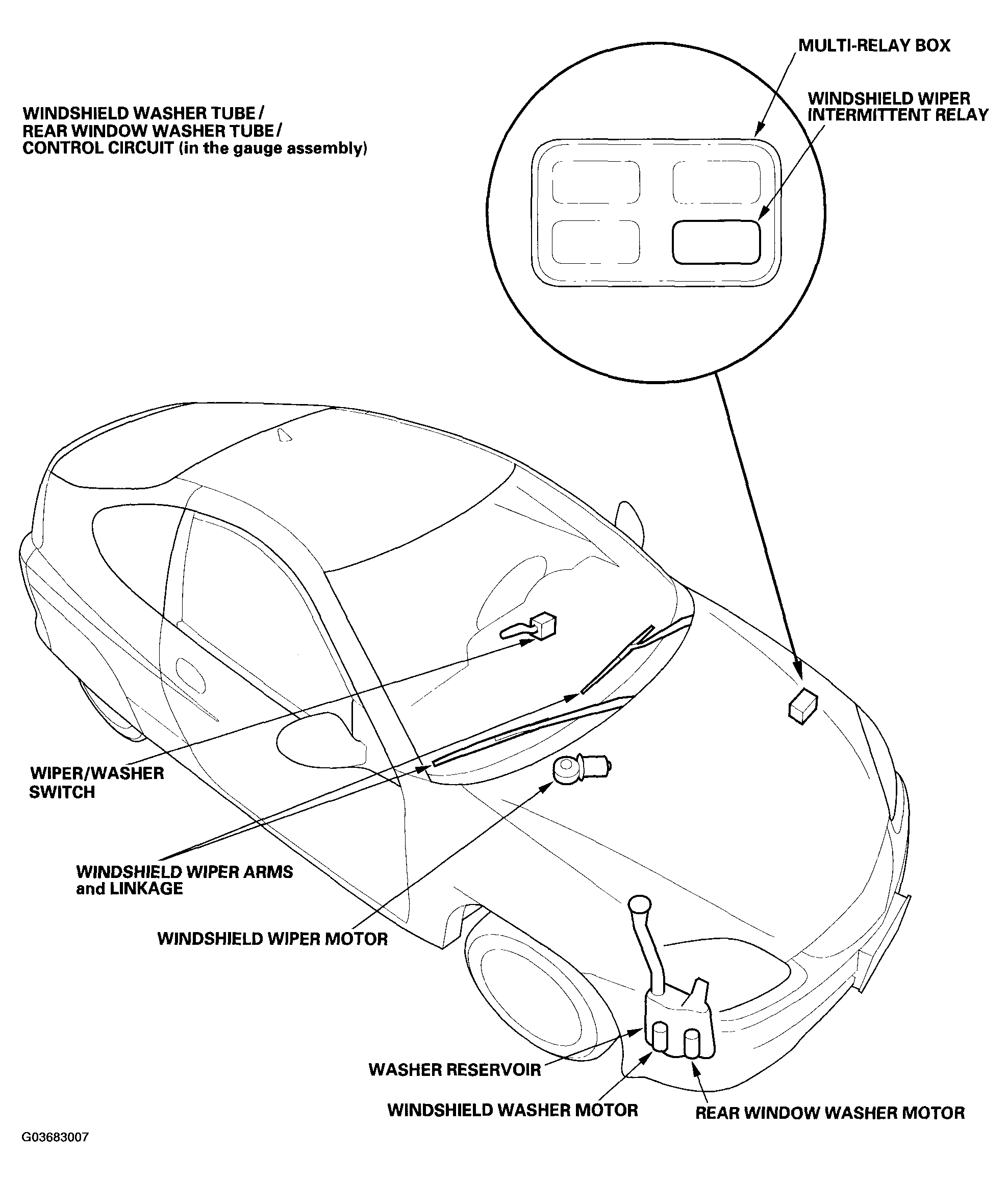

Fig 1: Identifying Wipers/Washers Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

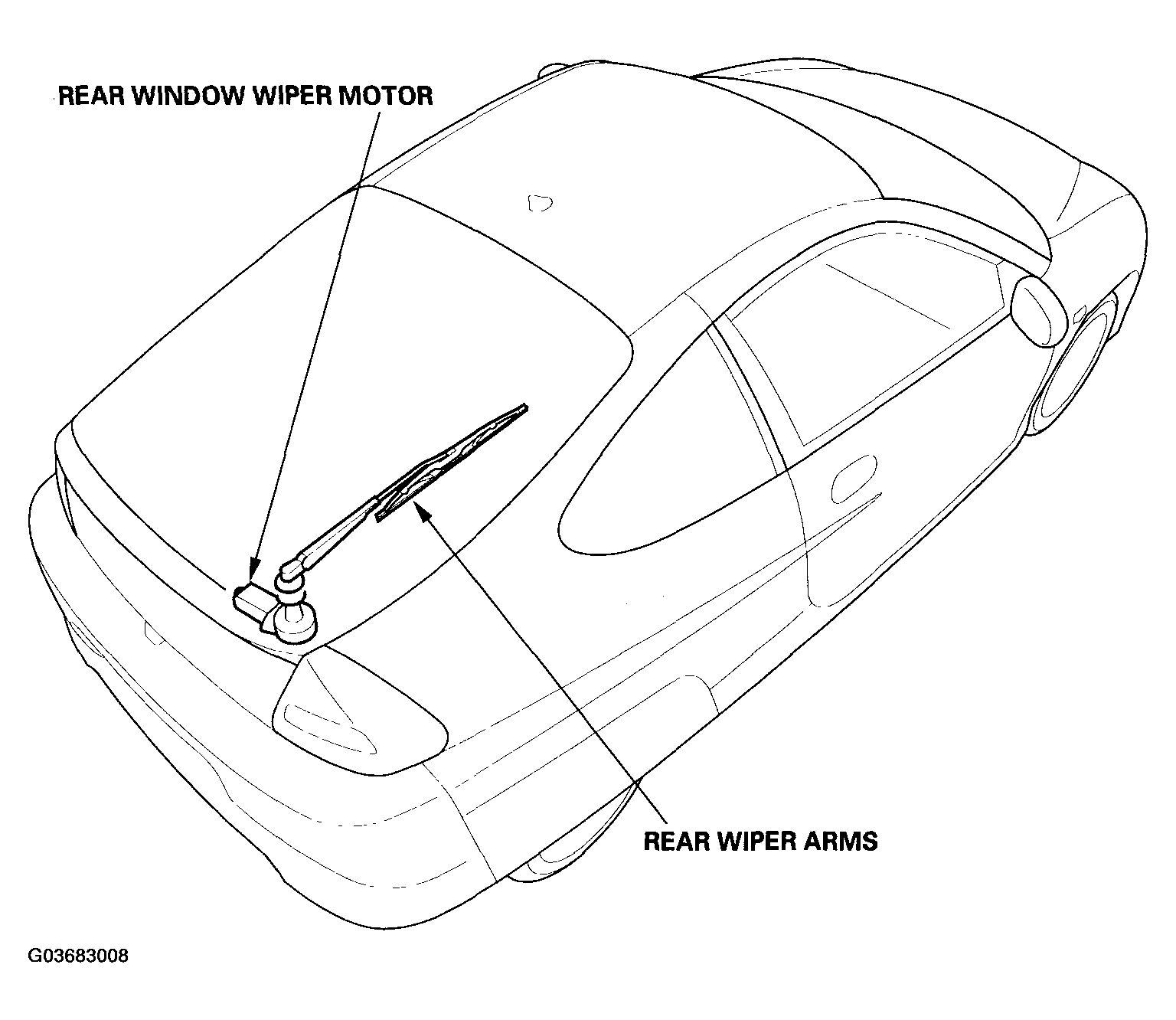

Fig 2: Identifying Wipers/Washers Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
