Home
>>
Honda
>>
2000
>>
Insight
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Circuit Diagram
Circuit Diagram

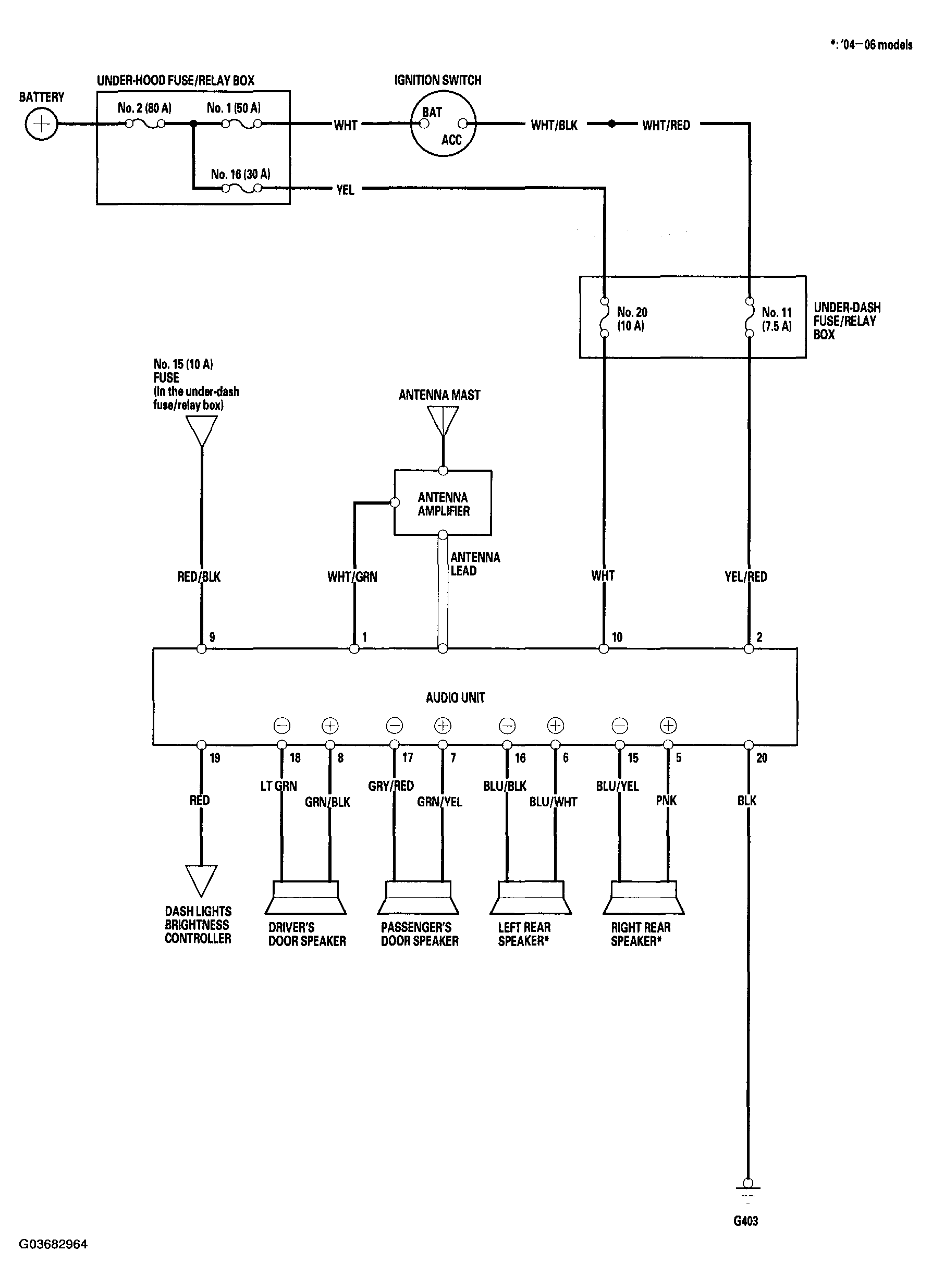

Fig 1: Circuit Diagram - Audio System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
